| Prod Model: |
electrical cable |
| Operating Temperature: |
0~70 |
| Cross Section: |
0.75mm2~50mm2 |
| Cores: |
1 Core |
| Color: |
Customized |
| Company Nature: |
Manufacturer |
| Length And Packing: |
100 Meters/Roll |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Building Cabling Wire |
| Conductor Material: |
Copper |
| Insulation Material: |
PE |
| Certification: |
RoHS |
| Brand: |
Customized or Szadp |
Product Description

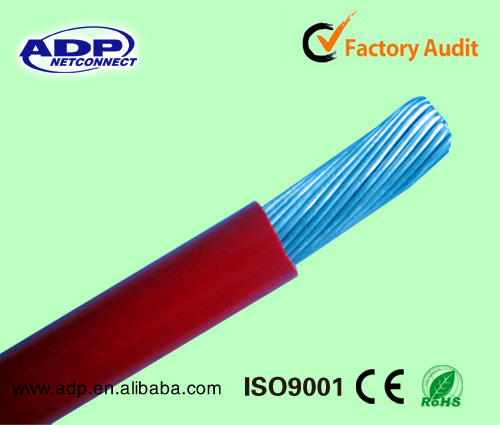

Low Voltage Eelectrical cable BVR Copper Wire for industry using
* Application
The products is suitable for use in power installations, fixed wiring or flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less
Feature
1.pvc electric cable
2.Hihg Quality Electric Wire Cable
3.CCC CE,ROHS,ISO Certification
Parameter
1.Voltage Uo/U 450/750V
2.Max. Permissible Continuous Operation Temperature of The Conductor: 70°C
3.The Ambient Temperature Under Installation Should Not Below 0°C
4.Impedance (ohms): 100±2ohm
Specification
Type: BV BVR BVV RV RVV
Voltage: 300/500V 450/750V
Specification: 1.5mm2-16mm2 1-5 cores etc
Length: 100M 200M 300M 500M
Application
PVC cables wire are suitable for household electrical appliances, small electric power tools,instruments and apparatuses and lighting devices, AC rated voltage up to and including 300/500V, which is used for connecting power line.
Products list and parameter:
| No. | Size | Specification | Length per roll |
| PVC insulated non-sheathed copper wires BV (450-750 Voltage) |
| 1 | 1.5 mm2 | 1×1.38 mm2 | 100 m |
| 2 | 2.5 mm2 | 1×1.78 mm2 | 100 m |
| 3 | 4 mm2 | 1×2.25 mm2 | 100 m |
| 4 | 6 mm2 | 1×2.76 mm2 | 100 m |
| 5 | 10 mm2 | 7×1.35 mm2 | 100 m |
| 6 | 16 mm2 | 7×1.70 mm2 | 100 m |
| 7 | 25 mm2 | 7×2.14 mm2 | 100 m |
PVC insulated PVC/XLPE sheathed Twin cables with/without earth
BVVB (300-500 Voltage) |
| 8 | 2×1 +1 mm2 | 2×1.13 +1.13 mm2 | 100 m |
| 9 | 2×1.5 +1 mm2 | 2×1.38 +1.13 mm2 | 100 m |
| 10 | 2×2.5 +1.5 mm2 | 2×1.78 +1.38 mm2 | 100 m |
| 11 | 2×4 +2.5 mm2 | 2×2.25 +1.78 mm2 | 100 m |
| 12 | 2×6 +4 mm2 | 2×2.76 +2.25 mm2 | 100 m |
| 13 | 2×10+4 mm2 | 2×7×1.35 +2.25 mm2 | 100 m |
| 14 | 2×16+6 mm2 | 2×7×1.70 +2.76 mm2 | 100 m |
| PVC insulated non-sheathed Multi flexible wires BVR (450-750 Voltage) |
| 15 | 1.5 mm2 | 7×0.52 mm2 | 100 m |
| 16 | 2.5 mm2 | 19×0.41 mm2 | 100 m |
| 17 | 4 mm2 | 19×0.52 mm2 | 100 m |
| 18 | 6 mm2 | 19×0.63 mm2 | 100 m |
| 19 | 10 mm2 | 49×0.52 mm2 | 100 m |
| 20 | 16 mm2 | 49×0.63 mm2 | 100 m |
| |
| PVC insulated PVC/XLPE sheathed copper cables (Lower than 1000 Voltage) |
| No. | Size | Specification |
| 21 | 3×2.5 mm2 | 3×1.78 mm2 |
| 22 | 3×4 mm2 | 3×2.25 mm2 |
| 23 | 3×4+1×2.5 mm2 | 3×2.25+1×1.78 mm2 |
| 24 | 3×4+2×2.5 mm2 | 3×2.25+2×1.78 mm2 |
| 25 | 3×6 mm2 | 3×2.76 mm2 |
| 26 | 3×6+1×4 mm2 | 3×2.76+1×2.25 mm2 |
| 27 | 3×6+2×4 mm2 | 3×2.76+2×2.25 mm2 |
| 28 | 3×10 mm2 | 3×7×1.35 mm2 |
| 29 | 3×10+1×6 mm2 | 3×7×1.35+1×2.76 mm2 |
| 30 | 3×10+2×6 mm2 | 3×7×1.35+2×2.76 mm2 |
| 31 | 3×16 mm2 | 3×7×1.70 mm2 |
| 32 | 3×16+1×10 mm2 | 3×7×1.70+1×7×1.35 mm2 |
| 33 | 3×16+2×10 mm2 | 3×7×1.70+2×7×1.35 mm2 |
| 34 | 3×25+1×16 mm2 | 3×7×2.14+1×7×1.70 mm2 |
| 35 | 3×25+2×16 mm2 | 3×7×2.14+2×7×1.70 mm2 |
| 36 | 3×35+1×16 mm2 | 3×7×2.52+1×7×1.70 mm2 |
| 37 | 3×35+2×16 mm2 | 3×7×2.52+2×7×1.70 mm2 |
| 38 | 3×50+1×25 mm2 | 3×10×2.52+1×7×2.14 mm2 |
| 39 | 3×50+2×25 mm2 | 3×10×2.52+2×7×2.14 mm2 |
| 40 | 3×70+1×35 mm2 | 3×14×2.52+1×7×2.52 mm |
| 41 | 3×70+2×35 mm2 | 3×14×2.52+2×7×2.52 mm2 |
| 42 | 3×95+1×50 mm2 | 3×19×2.52+1×10×2.52 mm2 |
| 43 | 3×95+2×50 mm2 | 3×19×2.52+2×10×2.52 mm2 |
| | | |
