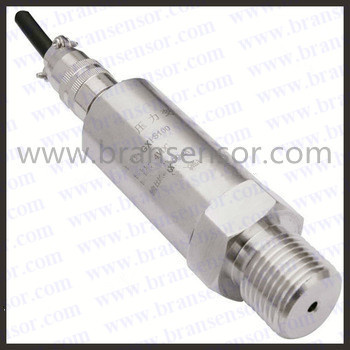

100PA Analog Output Pressure Sensor with Aviation Connector (BST-102)

Name: 100PA Analog Output Pressure Sensor with Aviation Connector (BST-102)
Brand: all-electronics-online.com
SKU: 823326495
Availability: InStock
Rating: 4.3 (58 reviews)

Price:	US $ 60/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BST-102

Product Description

1.    Product Name: -0.1-100 Mpa Water Gas Pressure Pressure Sensor
2.       Model: BST102
3.       Material: Stainless Steel
4.       Cpacity: -0.1~0~1~150(MPa)
5.       Size: M20×Φ26×85mm

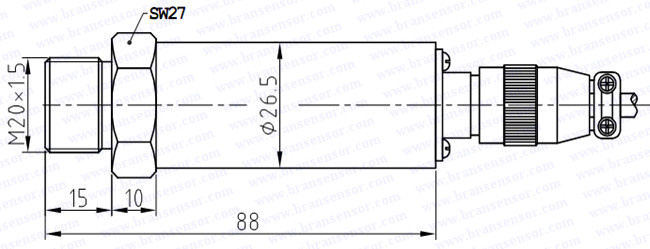

6.       Design:

7.       Main Features
(1)     Fully Welded Stainless Steel Housing
(2)     No Oil Fill, Welds, or Internal O-rings
(3)     Wide Operating Temperature
(4)     Compatible with Liquids and Gases
(5)     Rugged, Compact Design
(6)     Pressures up to 10,000 PSI
(7)     High Shock and Vibration

8. Technical Datasheet

	Specifications	Technique
	Capacity	-0.1~0~1~150(MPa)
	/ 2wires	4~20mA
	/ 3wires	0~5V,1~5V,0~10V
	Comprehensive accuracy	0.25%FS,0.5%FS
	Power supply	24VDC(9~36VDC )
	Medium temperature	-20ºC~85ºC~105ºC (/Option)
	Ambient temperature	-20ºC~85ºC
	Load resistance	Voltage type≥50kΩ Current type≤800kΩ
	Insulation	≥2000MΩ/100VDC
	Respone time	<1ms
	IP Class	IP65
	Long term stalibity	0.1%F.S./Year
	Vibration effects	20~1000HZ<0.1% F.S. Impact is less than 0.1% F.S.
	Electrical interface	aviation connector(plug)
	Thead connection	M20×1.5, M14×1.5 /customized
	Outline size	M20×Φ26×85
	Material	Stainless Steel

9.Applications:

Industrial OEM Equipment
Hydraulic Systems
HVAC Equipment
Refrigeration Equipment
Automotive
Energy / Water Management
Test Stands
Off-Road / Construction Equipment
Railways (Braking, Compressor & Engine Controls)

The BST102 is an ASIC-compensated, high quality, stainless steel

industrial pressure transducer designed for use in the measurement of

liquids and gases. Intended for mid to high volume applications

requiring excellent performance, the BST102 succeeds by offering

highly competitive pricing.

In this catalog, you could find pressure transducers/transmitters of liquid and gas; Flow meters; displacement sensors; Temperature sensors; Liquid Level Sensor/Meters.
If you need any special requirements, we could make it as customized according to your design.
