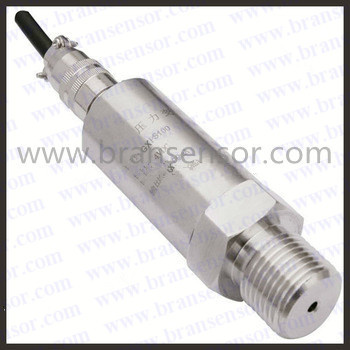

Air Water Gas Pressure Sensor Transducer

Name: Air Water Gas Pressure Sensor Transducer
Brand: all-electronics-online.com
SKU: 838700965
Availability: InStock
Rating: 4.9 (134 reviews)

Price:	US $ 60/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BST

Product Description

1.    Product Name: -0.1-100 Mpa Water Gas Pressure Pressure Sensor
2.       Model: BST102
3.       Material: Stainless Steel
4.       Cpacity: -0.1~0~1~150(MPa)

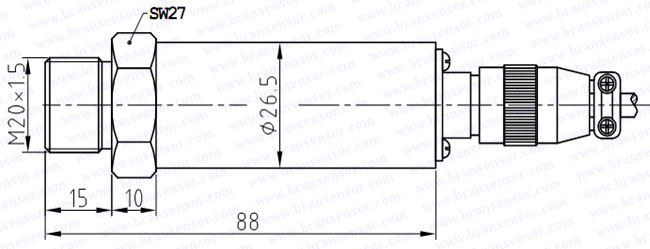

5.       Size: M20×Φ26×85mm
6.       Design:

7.       Main Features
(1)     Fully Welded Stainless Steel Housing
(2)     No Oil Fill, Welds, or Internal O-rings
(3)     Wide Operating Temperature
(4)     Compatible with Liquids and Gases
(5)     Rugged, Compact Design
(6)     Pressures up to 10,000 PSI
(7)     High Shock and Vibration

8. Technical Datasheet

Connector type1	Function	Color	5PIN	Connector type2	Function	Color
5PIN connector 0-5V; 0-10V 0.5-4.5V,1-5V	S+	Blue	1	Grand cable 0-5V; 0-10V 0.5/4.5V,1-5V	S +	Blue
	E+-	Red	2		E +	Red
	E-/S-	Black	3		E-/S-	Yellow/White
5PIN connector 1.5mV/V,2mV/V 3.33mV/V	S+	Blue	1	Grand cable 1.5mV/V,2mV/V 3.33mV/V	S+	Blue
	E +	Red	2		E +	Red
	S -	White	3		S -	White
	E -	Yellow	4		E -	Yellow
	C	Black	5		C	Black
5PIN connector 4-20mA	E+	Red	1	Grand cable 4-20mA	E+	Red
5PIN connector 4-20mA	S+	Black	2	Grand cable 4-20mA	S+	Black
Connector type3	Function	Color	4PIN	Connector type4	Function	Color	4PIN
Hirschman 0-5V; 0-10V 0.5-4.5V,1-5V	E+	Red	1	M12×1 connector 0-5V; 0-10V 0.5-4.5V,1-5V	E +	Brown	1
	S+	Blue	2		S +	Blue	3
	E -/S-	Black	3		E -/S-	White	4
Hirschman 4-20mA	E+	Red	1	M12×1 connector 4-20mA	E+	Brown	1
Hirschman 4-20mA	S+	Black	2	M12×1 connector 4-20mA	S+	Blue	3

9.Applications:

Industrial OEM Equipment
Hydraulic Systems
HVAC Equipment
Refrigeration Equipment
Automotive
Energy / Water Management
Test Stands
Off-Road / Construction Equipment
Railways (Braking, Compressor & Engine Controls)

The BST is an ASIC-compensated, high quality, stainless steel

industrial pressure transducer designed for use in the measurement of

liquids and gases. Intended for mid to high volume applications

requiring excellent performance, the BST102 succeeds by offering

highly competitive pricing.

In this catalog, you could find pressure transducers/transmitters of liquid and gas; Flow meters; displacement sensors; Temperature sensors; Liquid Level Sensor/Meters.
If you need any special requirements, we could make it as customized according to your design.
www.bransensor.com

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
