1050mA Constant Current Triac Dimmable LED Driver

Name: 1050mA Constant Current Triac Dimmable LED Driver
Brand: all-electronics-online.com
SKU: 828326205
Availability: InStock
Rating: 4.8 (45 reviews)

Price:	US $ 5-6/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC-36CP
Product Name:	1050mA 36W LED Driver
Cover Material:	Plastic
Color:	White
IP Degree:	IP44
Protection Grade:	Class 2
Dimming Manner:	Triac / Phase Cut
Output:	Constant Current Version
Protection:	Short Circuit/Over Load/Over Voltage
Efficiency:	85%
Watt:	18-24W
Output Type:	Single
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Level 2 Power Distribution Equipment
Certification:	TUV SAA
Warranty:	3years
Output Power:	36W
Input Voltage:	110/220VAC
Brand:	Sunred

Product Description

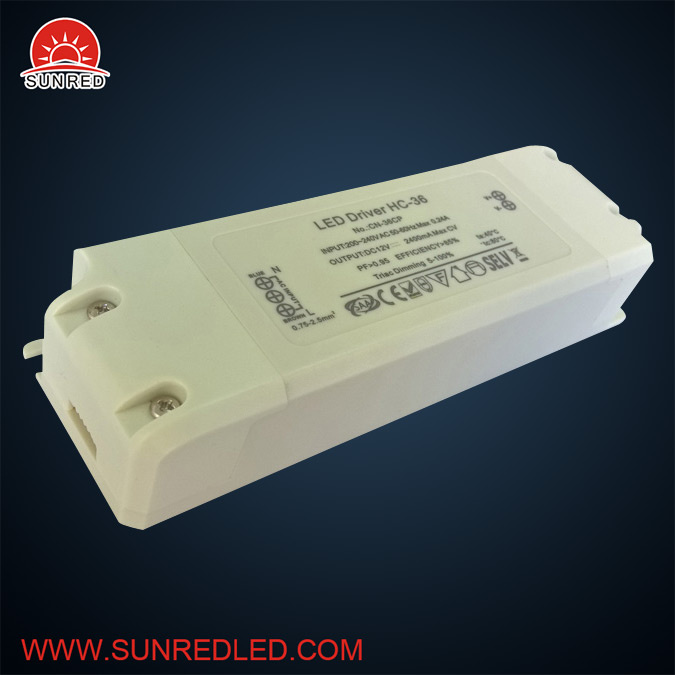

1050ma constant current triac dimmable led driver
30-36w led driver triac dimmable Parameter can be customized

Input voltage	100-130vac/200-240vac
Ac frequency	48-62HZ
Output current	700ma/900ma/1050ma
Output voltage	40-50/30-36/30-40v
Size	1404729mm

Features of the triac led driver:
-big wiring terminal,screw assembling
-suitable for LED home light,commercial Lighting and other application
-safety protective device
-simple installation
-conform to the world lighting equipment safety standards
-protection class II
-three years warranty

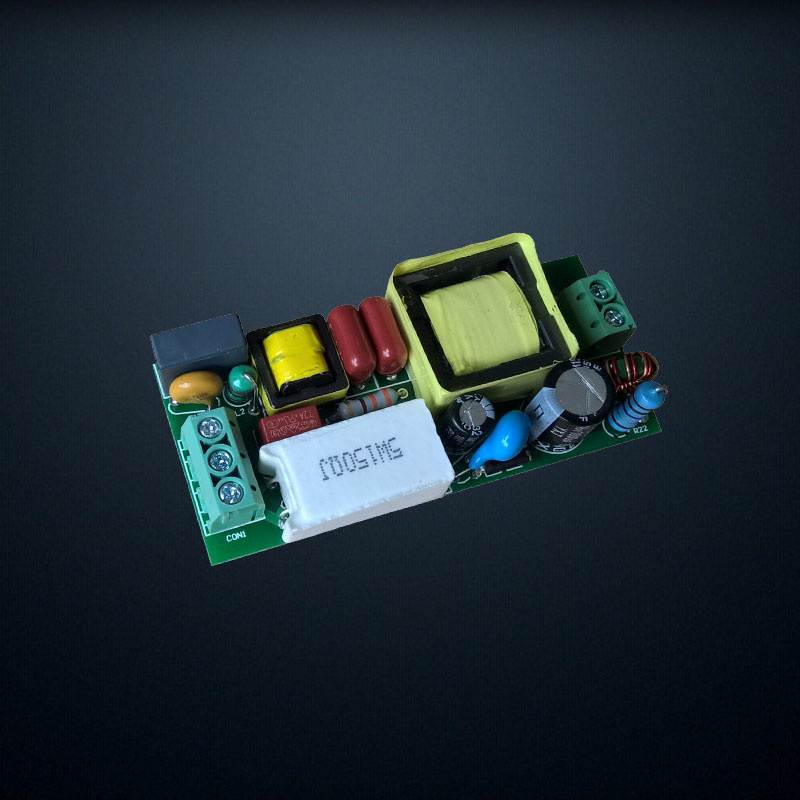

More pictures of the triac dimmable led driver

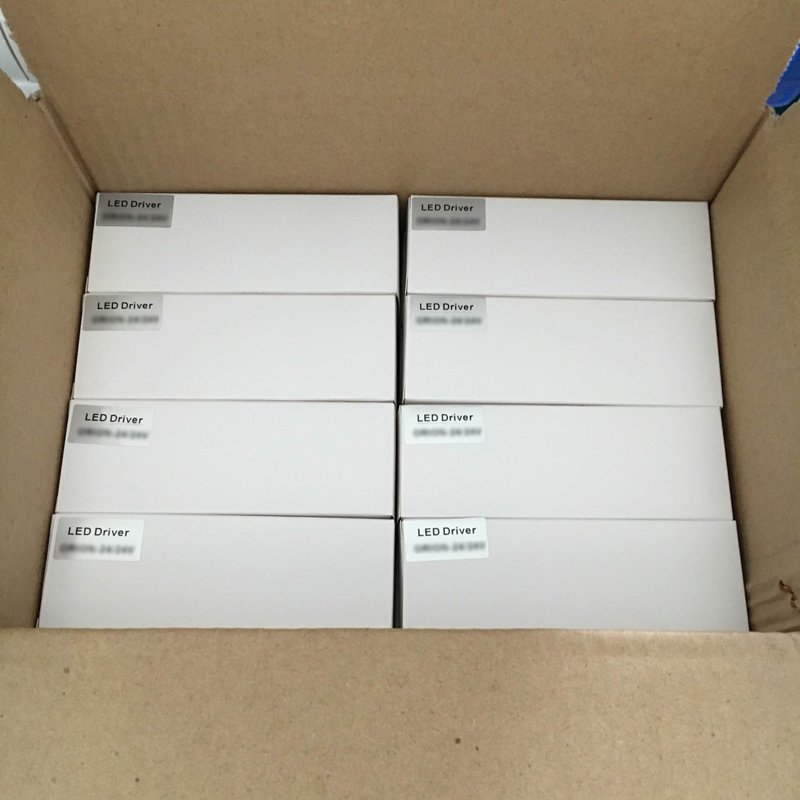

Packing information:
white box packing :80pcs/carton , Grosss weight :14kg, size: 38x27x27cm

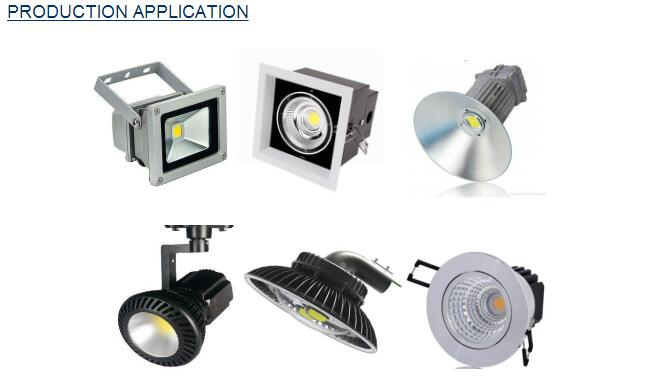

Application: The triac dimmable led drivers were widely used on led spot light, downlight, panel light, led street light, led highbay light etc.

Products we can offer:
DALI DIMMABLE LED DRIVER 5W TO 300W
TRIAC DIMMABLE LED DRIVER 5W TO 200W
0-10V DIMMABLE LED DRIVER 5W TO 240V
Waterproof led driver up to 400w

SUNRED LED Co., Limited!

We are LED driver manufacturer and LED car lighting trader located in Shenzhen, China

Which established in 2017.

Our main products are

0-10V/PWM dimmable drivers.

TRIAC dimmable LED driver,

DALI dimmable LED driver

IP67 Waterproof LED power supply

Low voltage LED transformer

LED car lighting

We have many good partners and suppliers, all of our products are with certificates,

CE EMC LVD TUV for Europ and SAA for Australia, For America market we have ETL UL certificates.

Also we can offer you good price, acceptable lead time and excellent after sale service.

Sunred LED, this young and flexible company will keep the innovation and honest in heart. To built a long good and mutual business relationship with you. Always fighting to prop the hope of green and lighten the future of the world.
