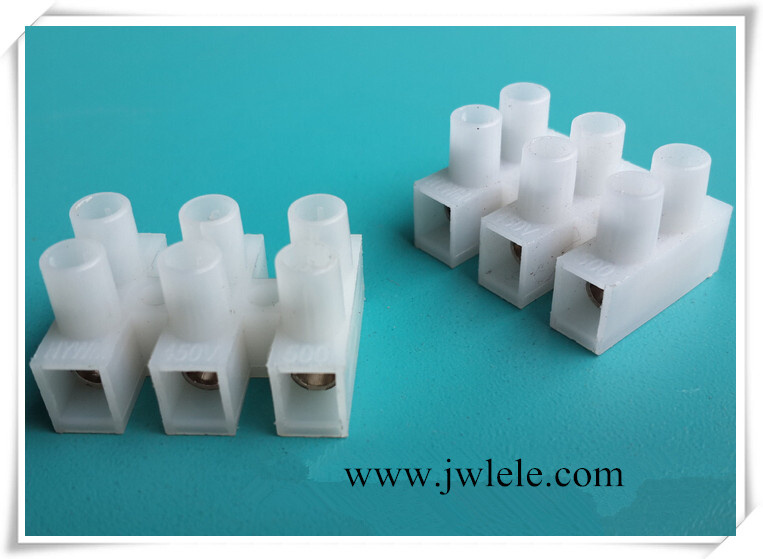

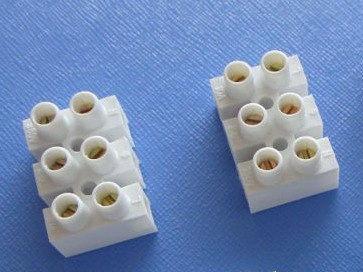

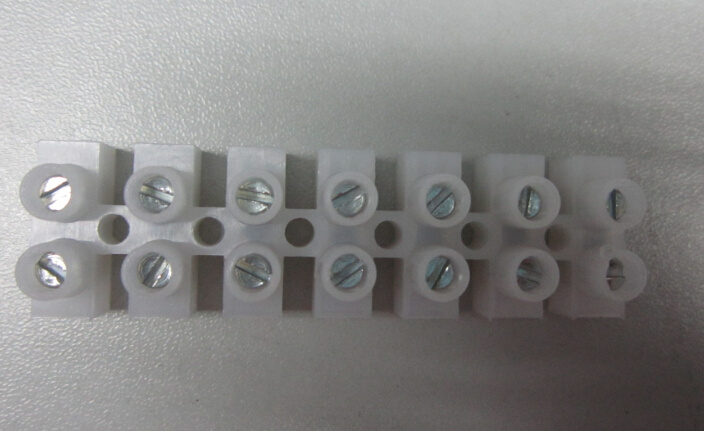

10A 3 Way H Type Plastic Terminal Block Ballast

Name: 10A 3 Way H Type Plastic Terminal Block Ballast
Brand: all-electronics-online.com
SKU: 715076815
Availability: InStock
Rating: 4.3 (60 reviews)

Price:	US $ 0.15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	10A 3 Way
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Integrated IC
Environmental Protection:	Resistance to Environmental
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed

Product Description

Specifications

Terminal block Feature:
1.Material:Nylon66,nature
2.cable used Zinc plating
3.Temperature:105 UL,-30 to 110 VDE
4.Type:H

Base:heighting 1.0mm

Cover:Nylon 66 engineering plastic,94UV-2,94UV-0 flame retardant rating
Wire base:sheet cooper,nickel plating
Shrapnel:stainless steel,PA8DS\PA10DS additional
Screw:carbon cooper wire,zinc plating
Wire strip length:PA8 zbout 5.0mm/0.20inch PA10 about 6.5mm/0.26inch

Connection rows:12

RATED CURRENT	450 v
RATED CURRENT	10A-17.5A
WIRE RANGE	12-22AWG
WORKING TEMPRETURE	130.C
POLES AVAILABLE	1-12
TORQUE	3.5LB.IN
SCREWS	M2.6 STREEL PLATED
CONTACT	Cu,Fe,or as your requirement
HOUSING	NYLON66,UL94V0

Description/	Carton Size	N.W/G.W	Pcs/Carton
Specification	CM	KG	PCS
3AMP-4MM	3918.530.5	18/17	1200
5AMP-6MM	372228	18/17	1200
6AMP-6MP	47.52228.5	24/23	1000
10AMP-10MM	542725.5	24/23	800
15AMP-12MM	482821	20/19	400
20AMP-14MM	512615.5	17/16	500
30AMP-16MM	403521	18/17	300
60AMP-25MM	403226	23/22	200
80AMP-35MM	342131	15/14	120
100AMP-40MM	36.523.529.5	19/18	100
150AMP-50MM	422727	26/25	80

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
