10g 1490/1550nm Bidi XFP Optical Module 80km
| Price: |
US $ 0.1-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
xfp module |
| Item Name: |
10g 80km Bidi XFP Transceiver |
| Working Rate: |
10g |
| Reach Distance: |
80km |
| Wavelength: |
1490/1550 Nm |
| Adapter Type: |
LC |
| Keywords: |
XFP,XFP Transceiver,XFP Module |
| OEM: |
Available |
| Usage: |
Laptop |
| Type: |
Wired |
| Support Network: |
GSM |
| Information Content: |
Data |
| Certification: |
GS |
| Condition: |
New |
Product Description
10G 1490/1550nm bidi xfp optical module 80kmXFP Optical module Transceivers are hot-swappable, compact media connectors that provide instant fiber connectivity for your networking gear. They are a cost effective way to connect a single network device to a wide variety of fiber cable distances and types.
Description
Takfly DF-XXXX192-E6C is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 80km on SMF.
The transceiver module comprises a transmitter with a 1490/1550nm DFB laser transmitter and the receiver section consists of a APD photodiode integrated with a TIA,. Transmitter and receiver are separate within a wide temperature range of 0ºC to +70ºC and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
Features
- Supports 9.95Gb/s to 10.3Gb/s data rates
- Hot-pluggable XFP footprint
- Maximum link length of 60km with SMF
- 1270/1330nm DFB laser Transmitter and 1330/1270nm APD Receiver
- XFP MSA package with LC connector
- No reference clock required
- Loop Back Support.
- +3.3V,+1.8V power supply
- Power dissipation <2W
- Compatible with RoHS
- Built-in digital diagnostic functions
- Temperature range 0°C to 70°C

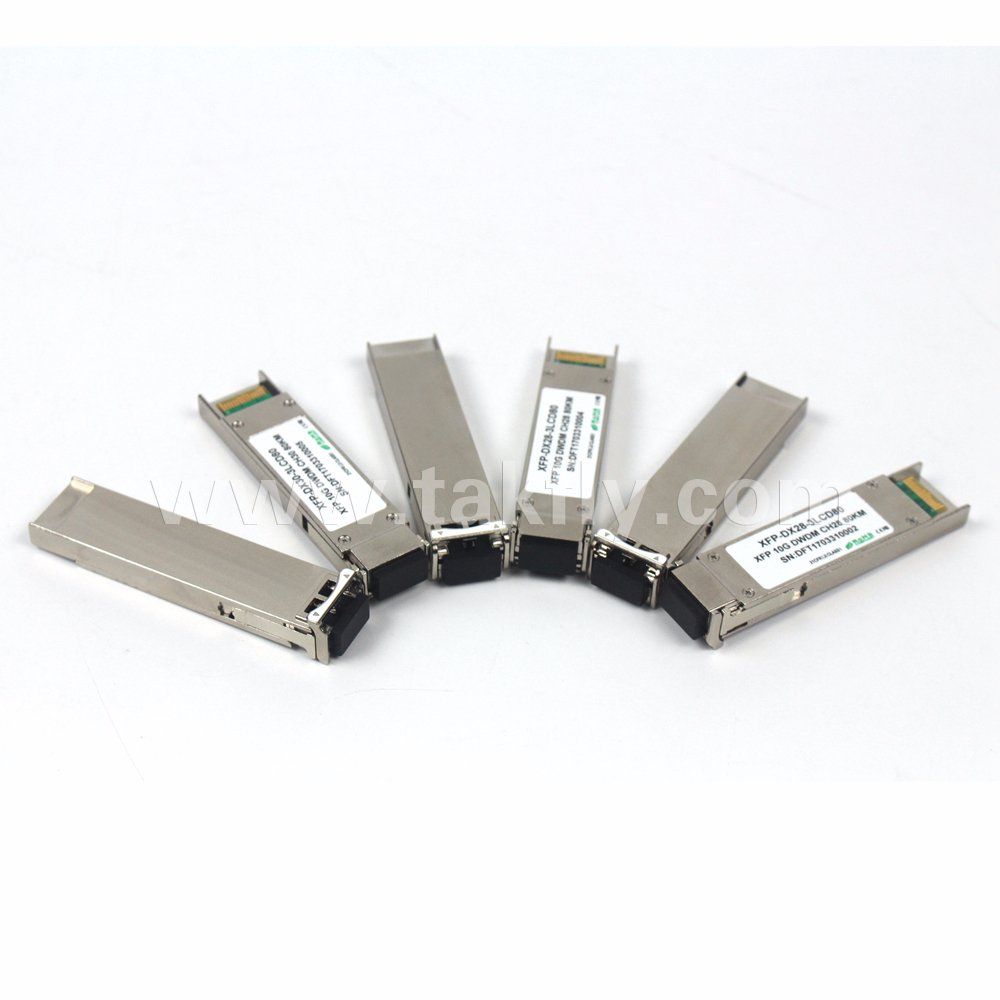

Detail pic
Applications- 10GBASE-ER 10G Ethernet at 10.3125Gbps
- 10GBASE-EW 10G Ethernet at 9.953Gbps
- 1200-SM-LL-L 1-0G Fiber Channel at 10.51875Gbps
- 10GBASE-ER 10G Ethernet with FEC
Ordering information| Part Number | Product Description |
| DF-2733192-E8C | 1490nm DFB laser Transmitter and 1330nm Receiver, 10Gbps, 80km, 0ºC ~ +70ºC |
| DF-3327192-E8C | 1550nm DFB laser Transmitter and 1270nm Receiver, 10Gbps, 80km, 0ºC ~ +70ºC |
Why choose Takfly?1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within a week
2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before delivery
3.Competitve price.As a factory,costs are controllable
4.Flexible payment term.T/T,L/C,paypal is availble
5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc
6.Complete product range, products cover fiber optic cable,Fiber optic adapter,attenuators,full total FTTH solution.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
