10g 80km CWDM DWDM XFP Optical Modules CWDM SFP
| Price: |
US $ 0.1-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
10G xfp optical module |
| Item Name: |
10g CWDM DWDM XFP Transceiver |
| Working Rate: |
10g |
| Reach Distance: |
80km |
| Wavelength: |
1270/1290/1310/1330,etc |
| Adapter Type: |
LC |
| Keywords: |
XFP,XFP Transceiver,XFP Module |
| OEM: |
Available |
| Usage: |
Laptop |
| Type: |
Wired |
| Support Network: |
GSM |
| Information Content: |
Data |
| Certification: |
GS |
| Condition: |
New |
Product Description
10g 80km CWDM DWDM XFP Optical Modules CWDM SFPXFP Optical module Transceivers are hot-swappable, compact media connectors that provide instant fiber connectivity for your networking gear. They are a cost effective way to connect a single network device to a wide variety of fiber cable distances and types.
Description
Takfly CWDM XFP Transceiver exhibits excellent wavelength stability, cost effective module. It is designed for 10G CWDM SDH, 10GBASE-ZR/EW and 10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Takfly CWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Features- CWDM grid wavelengths
- Wavelength selectable to ITU-T standards covering
- XFP MSA Compliant
- data rate from 9.95 Gbps to 11.3Gbps
- No Reference Clock required
- Cold EML transmitter and APD receiver
- 1470nm~1570nm link length up to 80km (1600ps/nm)
- 1590nm~1610nm link length up to 70km (1400ps/nm)
- Low Power Dissipation 3.5W Maximum
- -5ºC to 70ºC Operating Case Temperature
- Diagnostic Performance Monitoring of module temperature, supply
- Voltages, laser bias current, transmit optical power, receive optical power
- RoHS compliant and lead free
Applications- SONET OC-192&SDH STM 64
- 10G Ethernet
- 80 km 10G Fiber Channel
- CWDM Networks
Ordering information| Part Number | Product Description |
| DF-47192-08C | 1470nm, 10Gbps, CWDM XFP 80km, -5ºC ~ +70ºC |
| DF-49192-08C | 1490nm, 10Gbps, CWDM XFP 80km, -5ºC ~ +70ºC |
| DF-51192-08C | 1510nm, 10Gbps, CWDM XFP 80km, -5ºC ~ +70ºC |
| DF-53192-08C | 1530nm, 10Gbps, CWDM XFP 80km, -5ºC ~ +70ºC |
| DF-55192-08C | 1550nm, 10Gbps, CWDM XFP 80km, -5ºC ~ +70ºC |
| DF-57192-08C | 1570nm, 10Gbps, CWDM XFP 80km, -5ºC ~ +70ºC |
| DF-59192-07C | 1590nm, 10Gbps, CWDM XFP 70km, -5ºC ~ +70ºC |
| DF-61192-07C | 1610nm, 10Gbps, CWDM XFP 70km, -5ºC ~ +70ºC |
1470nm~1570nm link length up to 80km (1600ps/nm)1590nm~1610nm link length up to 70km (1400ps/nm)Why choose Takfly?1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within a week

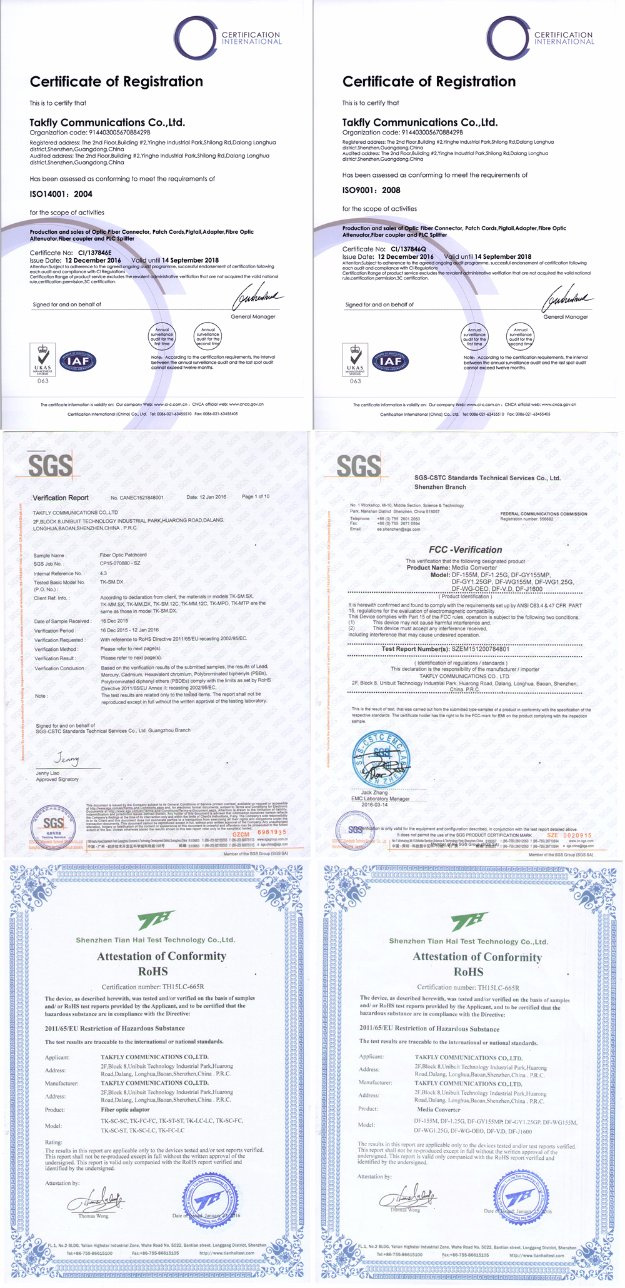

2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before delivery
3.Competitve price.As a factory,costs are controllable
4.Flexible payment term.T/T,L/C,paypal is availble
5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc
6.Complete product range, products cover fiber optic cable,Fiber optic adapter,attenuators,full total FTTH solution.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
