10g 300m 850nm XFP Transceiver Module
Price: |
US $ 0.1-200/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
10G xfp |
Item Name: |
10g 300m XFP Transceiver |
Working Rate: |
10g |
Reach Distance: |
300m |
Wavelength: |
850nm |
Adapter Type: |
LC |
Keywords: |
XFP,XFP Transceiver,XFP Module |
OEM: |
Available |
Usage: |
Laptop |
Type: |
Wired |
Support Network: |
GSM |
Information Content: |
Data |
Certification: |
GS |
Condition: |
New |
Product Description

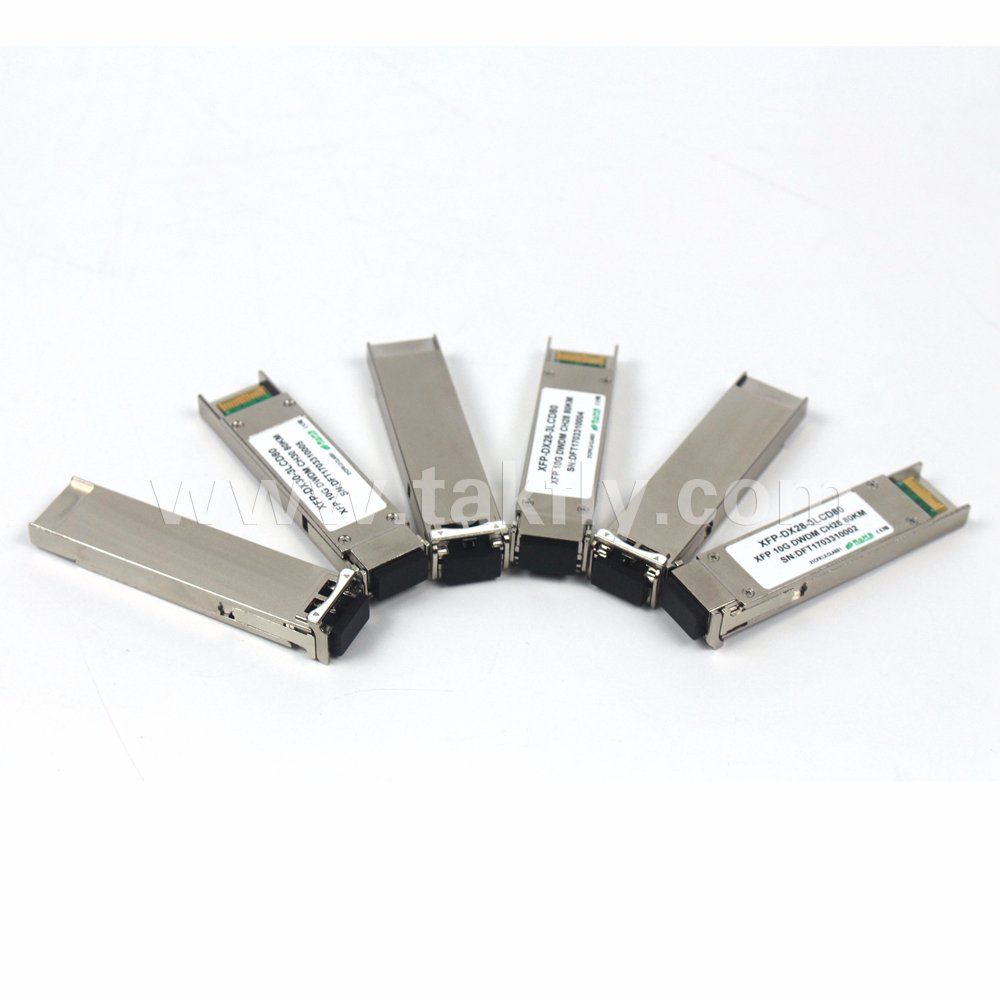

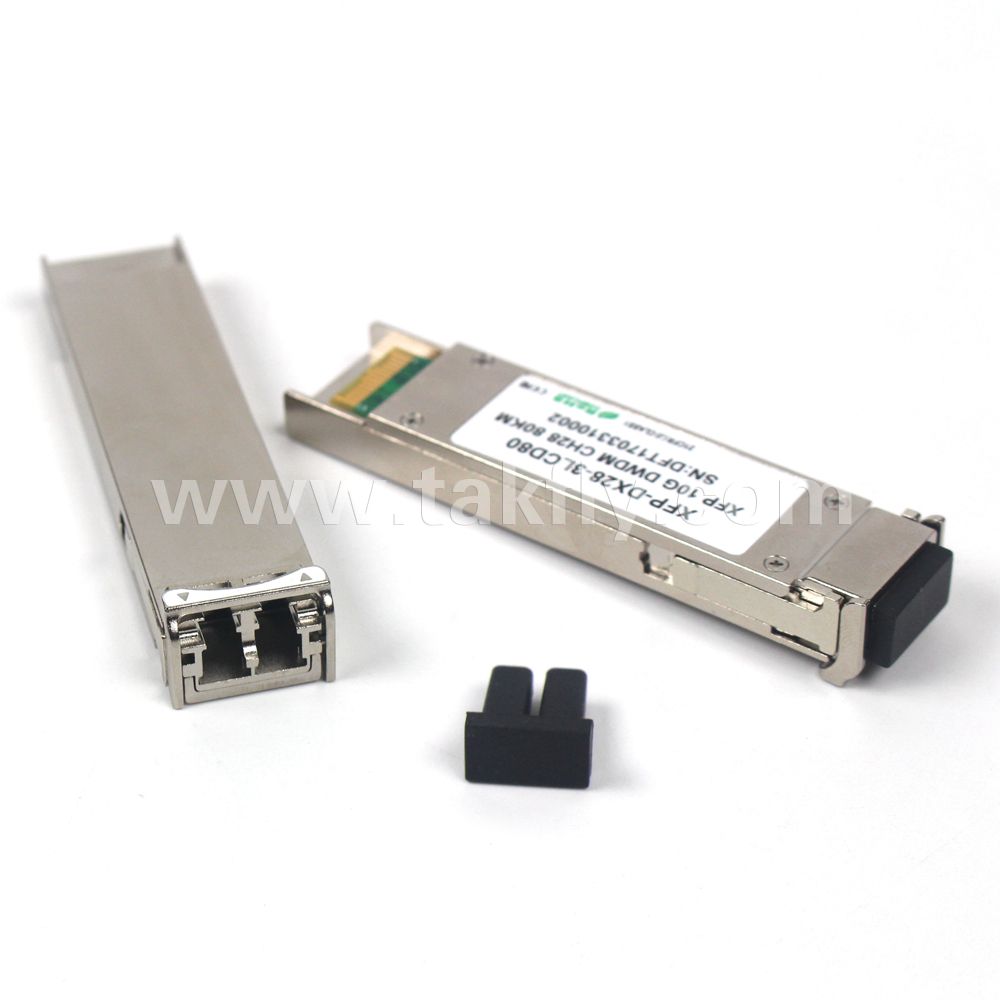

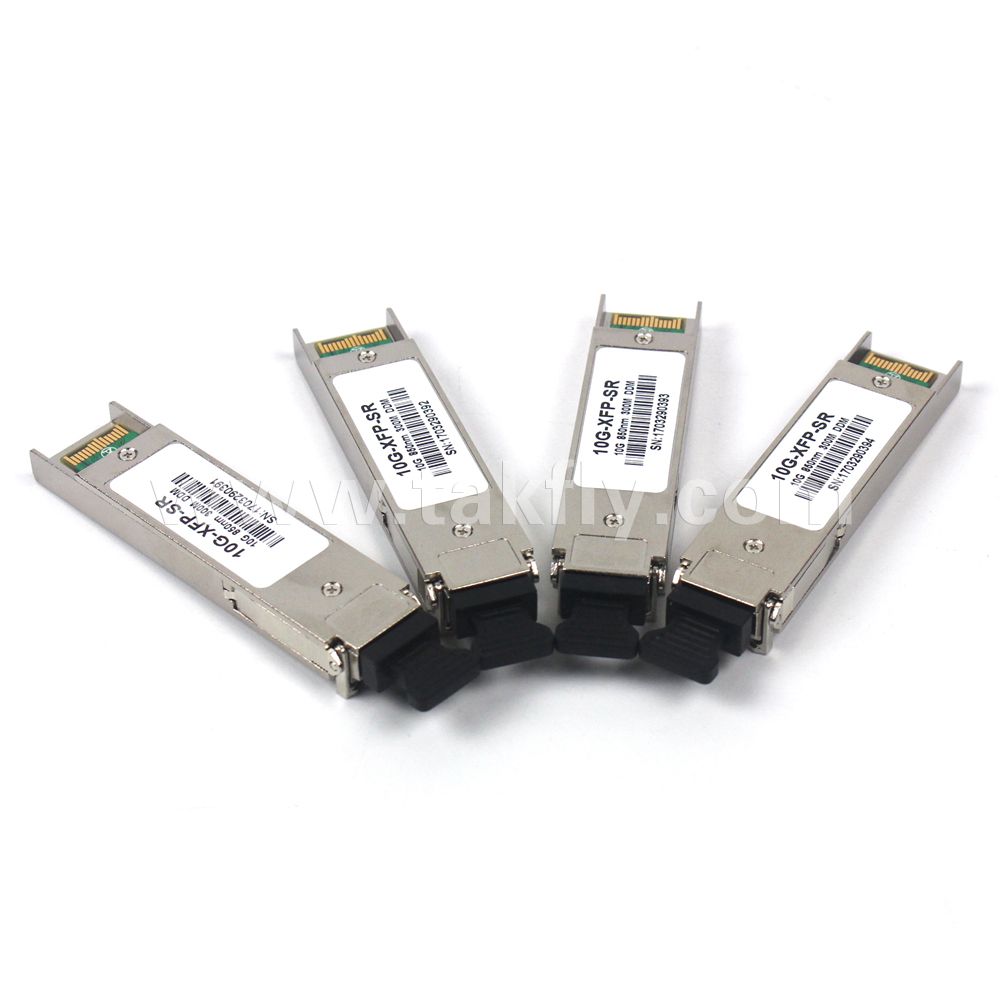

10G 300m 850nm xfp transceiver moduleXFP Optical module Transceivers are hot-swappable, compact media connectors that provide instant fiber connectivity for your networking gear. They are a cost effective way to connect a single network device to a wide variety of fiber cable distances and types.

Applications- 10GBASE-SR/SW 10G Ethernet
- 1200-Mx-SN-I 10G Fibre Channel
- Other optical links
Description
Takfly DF-85192-SRC is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).
The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0ºC to +70ºC and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Features- Supports 9.95Gbps to 10.5Gbps bit rates
- Maximum link length of 300m (50um,MMF,2000MHz.Km)
- 850nm VCSEL laser and PIN receiver
- Low power consumption <1.5W
- +3.3V +1.8Vpower supply
- XFP MSA package with duplex LC connector
- XFI electrical interface
- No reference clock required
- Compatible with RoHS
- Excelllent EMI performance
- Built-in digital diagnostic functions
- Temperature range: 0ºC to +70ºC
- High reliability
Ordering informationPart Number | Product Description |
DF-85192-SRC | 850nm VCSEL, 10Gbps, 300m, 0ºC ~ +70ºC |
Why choose Takfly?1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within a week
2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before delivery
3.Competitve price.As a factory,costs are controllable
4.Flexible payment term.T/T,L/C,paypal is availble
5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc
6.Complete product range, products cover fiber optic cable,Fiber optic adapter,attenuators,full total FTTH solution.

Would you like some 10G 300m XFP module transceiver to test?Please leave me an inquiry or contact me directly.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
