| Prod Model: |
DF-1.25G-MC |
| Business Type: |
Manufacturer |
| Payment Terms: |
Tt/Paypal/LC |
| Rate: |
10/100/1000m |
| Port: |
Sc/FC/St |
| Fiber: |
Single Fiber/Dual Fiber |
| Working Temperature: |
-10 to+50 |
| Size: |

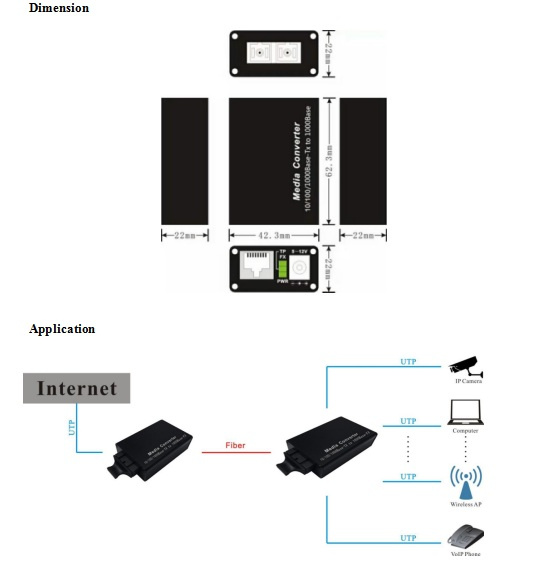

62.3* 42.3 * 22mm |
| Volt: |
5V |
| Transmission Distance: |
2km-120km |
| Weight: |
0.06kg |
| Transmission Medium: |
Single-Mode |
| Ferrule Endface: |
PC(',UPC) |
| Structure: |
Sc/St/FC |
| Number Of Cores: |
Simplex/Duplex |
| Light Source TYPE: |
Fiber Optic |
| Connector Type: |
Sc/St/FC |
| Brand: |
Takfly/OEM/Df |
Product Description

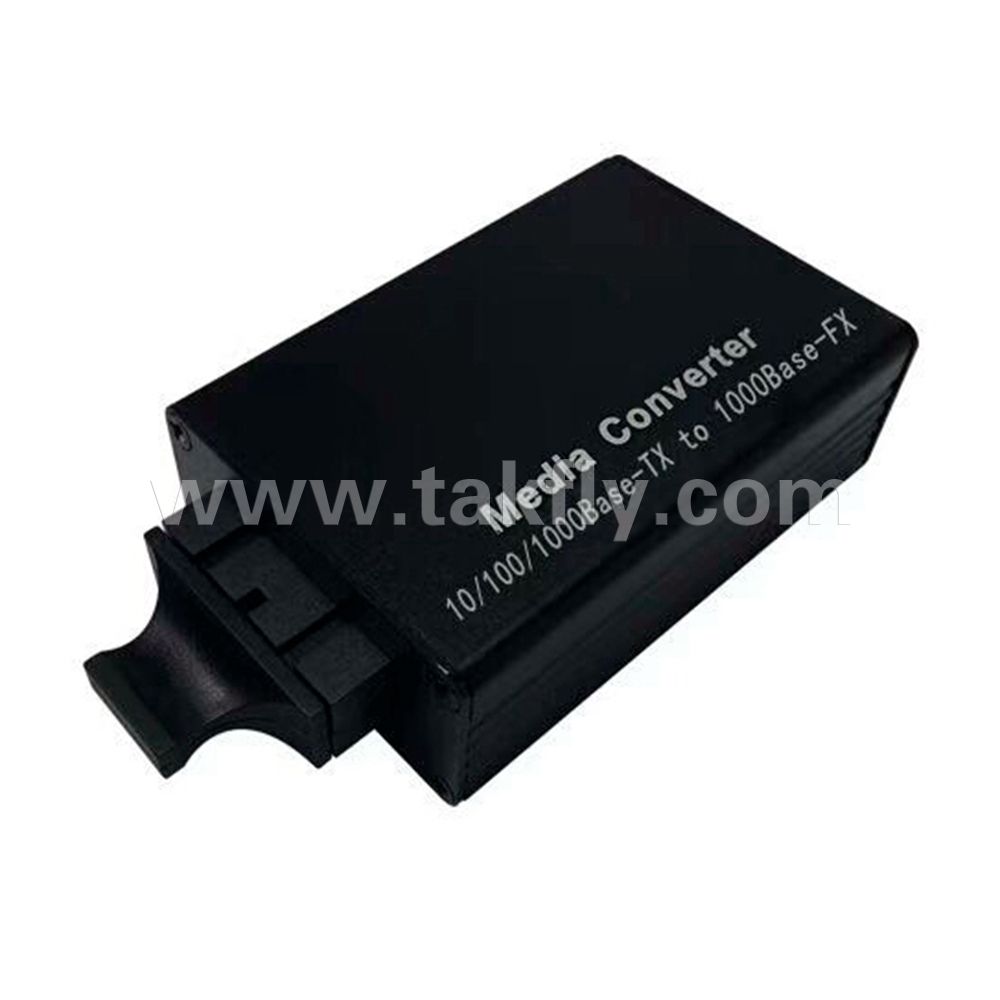

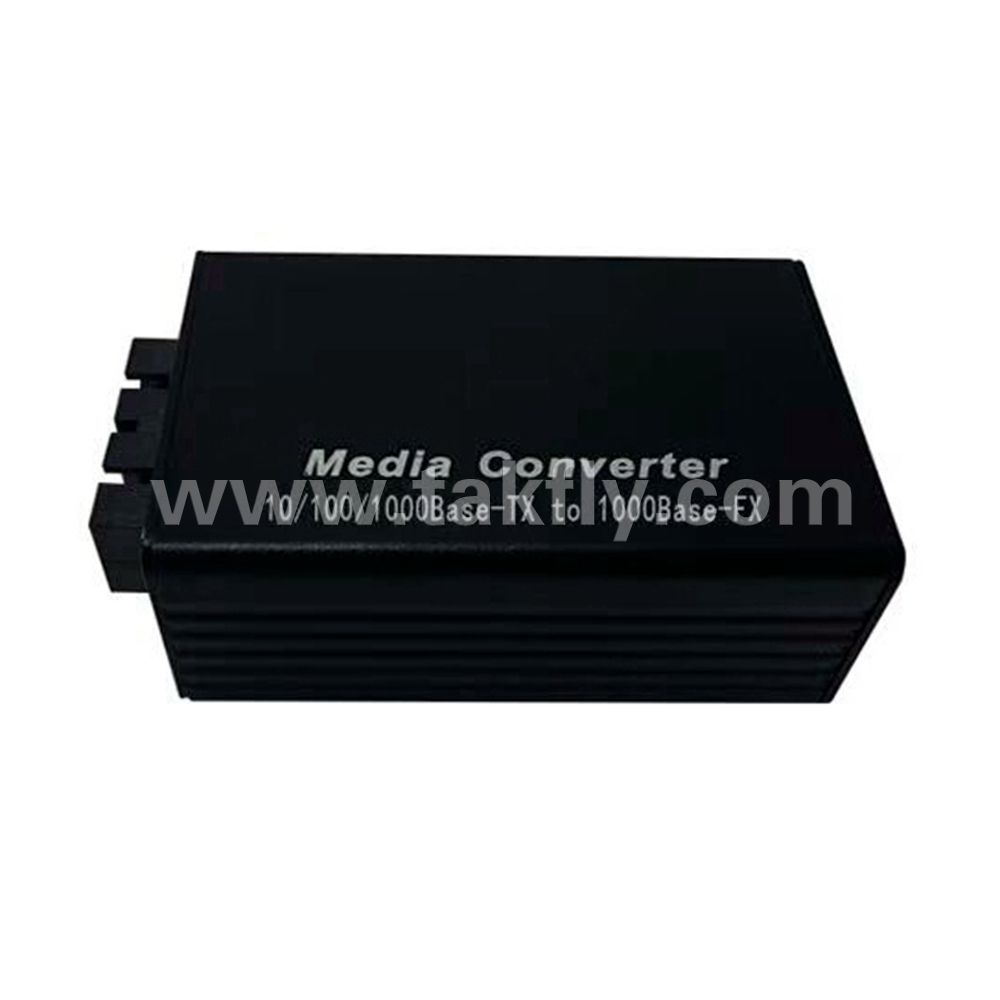

ROHS Compliant 1.25G SC Dual Fiber Multimode 2KM MINI Media Converter
OverviewThe Media Converter is a 10/100/1000Mbps adaptive gigabit Ethernet Media Converter. It have one 10/100/1000Mbps UTP port and one 1.25Gbps fiber ports. It extends the transmission distance of a network from 100m via copper cables to 120km.It can extend the transmission distance, and also with many other advantages such as isolation protection, good data security, working stable and easy to maintain.Features - 1×1000Base-SX to 1×10/100/1000Base-T Port
- RJ45 support auto MDI/MDI-X function
- Auto-negotiation speed, half/full-duplex
- Each port has the complete LED Indicator light
- Support IEEE802.1d Spanning Tree
- Supports high performance QoS function on each port
- Flow control fully supported
- Support broadcast storm protection
- Wide-range redundant power design ( 4.5~20VDC )
- 1×9 fixed fiber module or SFP slot optional
- Support max forwarding packet length 9K bytes option
- Requires no configuration and will instantly operate as soon as you power it up
- Small volume
- Low power consumption
Why choose Takfly ?Service1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality ControlAll products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Shipping 1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Contact Mob:+86-13502850422
Have a nice shipping time!
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
