| Prod Model: |
TK-155M-MC Media Converter |
| Business Type: |
Manufacturer |
| Payment Terms: |
Tt/Paypal/LC |
| Rate: |
10/100m |
| Port: |
Sc |
| Fiber: |
Single Fiber/Dual Fiber |
| Working Temperature: |
-10 to+50 |
| Size: |
62.3* 42.3 * 22mm |
| Volt: |
5V |
| Transmission Distance: |
2km-100km |
| Weight: |
0.06kg |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Structure: |
Sc/St/FC |
| Light Source TYPE: |
Fiber Optic |
| Connector Type: |
Sc/St/FC |
| Brand: |
Takfly/OEM/Df |
Product Description

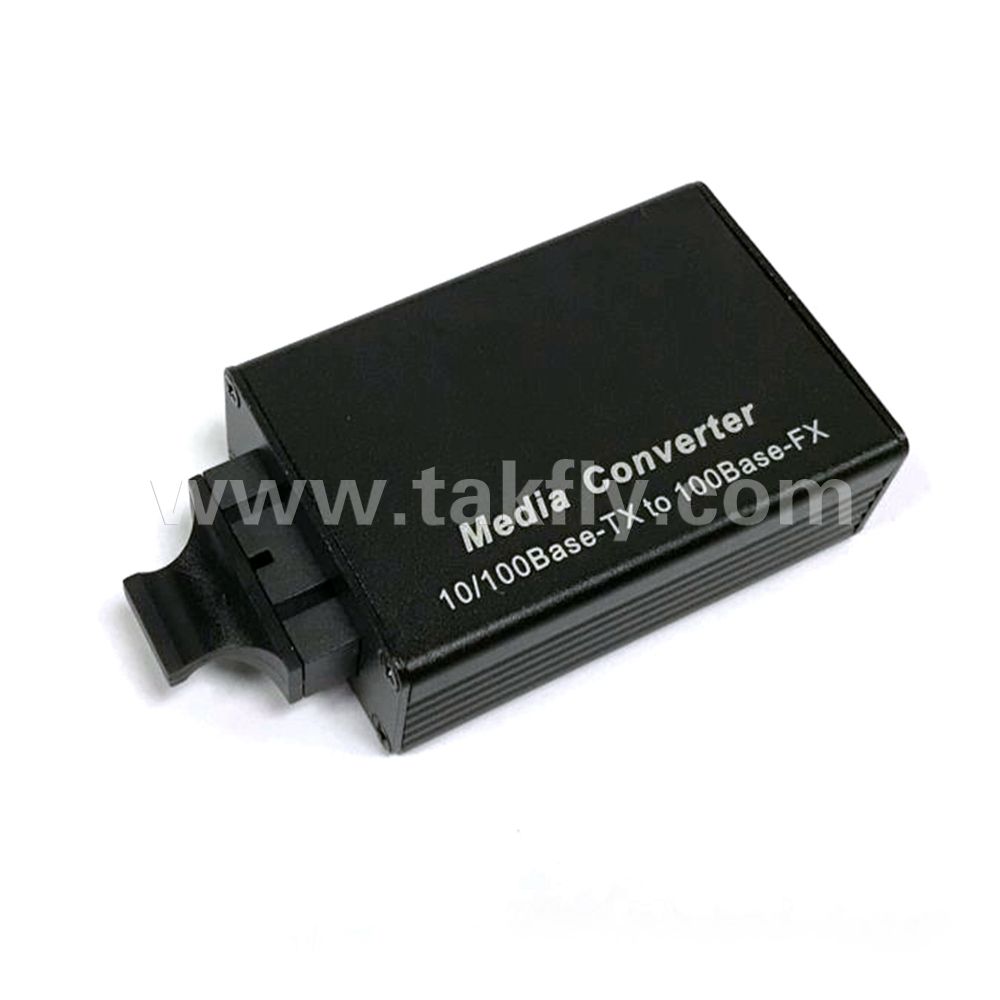

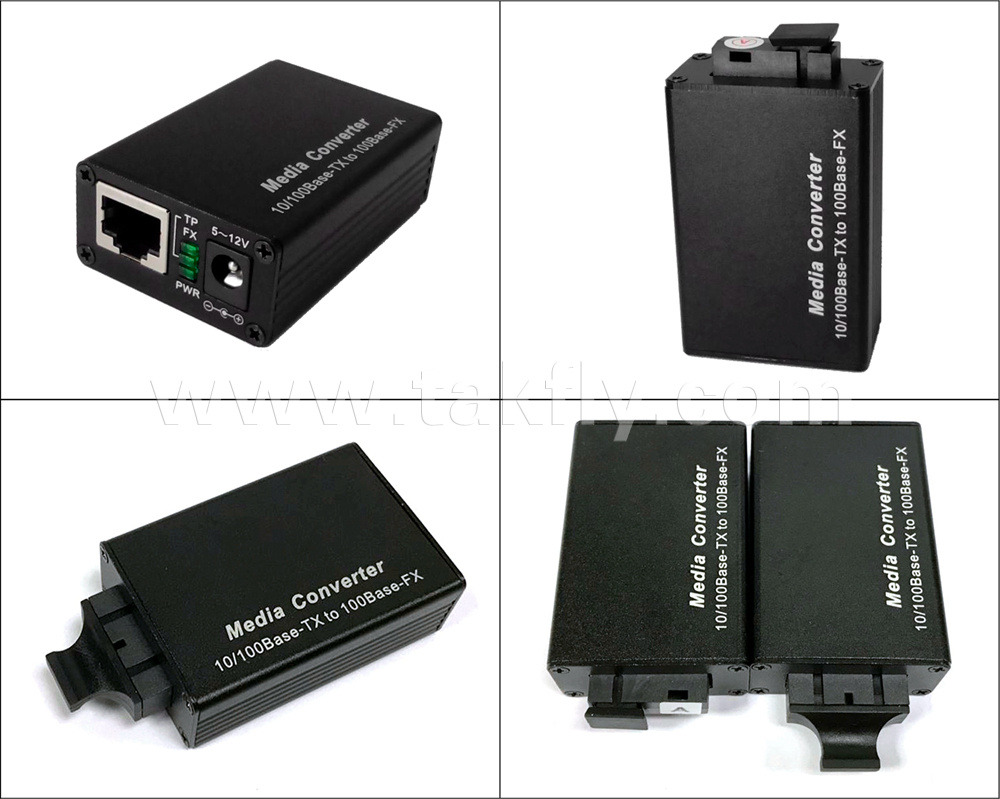

10/100M SC Port Mini Type Fiber Optic Media Converter

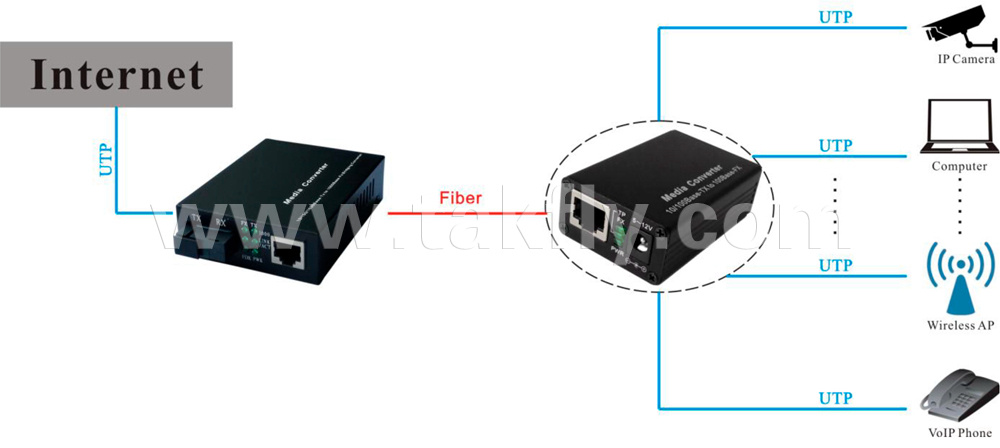

The fiber optic transceiver is a mini-Fast Ethernet fiber optic transceivers, it has a 10 / 100M Ethernet port and a 155M optical port, you can interconversion10 / 100Base-TX twisted pair electrical signal and long distance Of the 100Base-FX optical signal conversion, the network limit transmission distance from 100 meters of copper extended to 120 km, greatly extending the Ethernet transmission distance, but also with isolation protection, data security performance, and work Superior stability, easy to maintain and so on.
The miniature fiber optic transceivers use aluminum alloy shell, so the overall heat dissipation is better, the appearance is even more beautiful, delicate.
Featuressupport 10 / 100Base-TX and 100Base-FX conversion between;1 full duplex 155Mbps optical port, a 10 / 100M adaptive electrical port;10 / 100M rate adaptive, MDI / MDI-X adaptive, full / half duplex adaptive;All optical / electrical ports have connection / activity status indicator to facilitate the installation, commissioning and maintenance of the equipment;support IEEE802.1 spanning tree (Spanning Tree) protocol, so that the network is more simple;support QoS, to ensure the efficient operation of the network;support broadcast storm suppression;support custom 4.5 ~ 20VDC wide voltage input;support up to 1552bytes long packet transmission;Full power at work only 1W;support low latency transmission, but also with isolation protection;simple to use, plug and play, without any settings;use low-power chip, low heat, long time to stabilize the work;small: small size, suitable for installation in a variety of small space;light: the body only 0.05kg, for long-distance transport is more economical;Qiao: the use of aluminum alloy shell, the overall heat better, more beautiful, refined
Specification
| Protocol Standards | IEEE802.3 10Base-T | IEEE802.1q VLAN |
| IEEE802.3u 100Base-TX/FX | IEEE802.1p QoS |
| IEEE802.3x Flow control | IEEE802.1d Spanning Tree |
| RJ45 Ports Parameters |
Ethernet Port connector:RJ45 |
Transmission Rate: 10/100Mbps Self-adaption |
Cable Type: UTP-5E or higher |
Transmission Distance: 100 meters |
| Fiber Port Parameters |
Fiber Port connector:SC/FC/ST |
Transmission Rate:155Mbps |
Fiber Wavelength:850nm/1310nm/1490nm/1550nm |
| Fiber Type: Single mode 9/125μm, multimode 50/125μm,62.5/125μm |
| Transmission Distance: :2km~100km |
| Performance | Ø
Forwarding: Store and forward |
| Transmission mode: full duplex / half duplex adaptive |
Ø
MAC address table: 1K |
| Frame memory: 448Kbit |
| Network delay: ≤150μs |
| Power | Power supply type: external power supply |
| Power supply type: external power supply |
| Machine power connector: DC socket, 2.5 × 5.0mm |
| Machine operating voltage: 5V |
| Machine power consumption: 0.7W ~ 1.5W |
Working
Environment | Storage temperature: -40 ~ 70 ºC |
| Working temperature: -10 ~ 55 ºC |
| Working humidity: 5% to 90% non-condensing |
Machenical Structure | Size: 62.3 × 42.3 × 22mm |
| Net Weight: 0.06KG |
| Color: Black |
Order Instruction Mini 100 M 1 Fiber 1 RJ45 single mode dual-fiber SC20km
Mini 100M 1 Fiber 1 RJ45 single mode single-fiber 1310nm SC20km mini
Mini 100M 1 Fiber 1 RJ45 single mode single fiber 1550nm SC20km
Mini 100M 1 Fiber 1 RJ45 single mode dual fiber SC40km
Mini 100M 1 Fiber 1 RJ45 single mode single fiber 1310 SC40km
(Note: fiber interface default SC, optional ST; standard 5V1A American standard power adapter, optional national standard, the European standard.)
