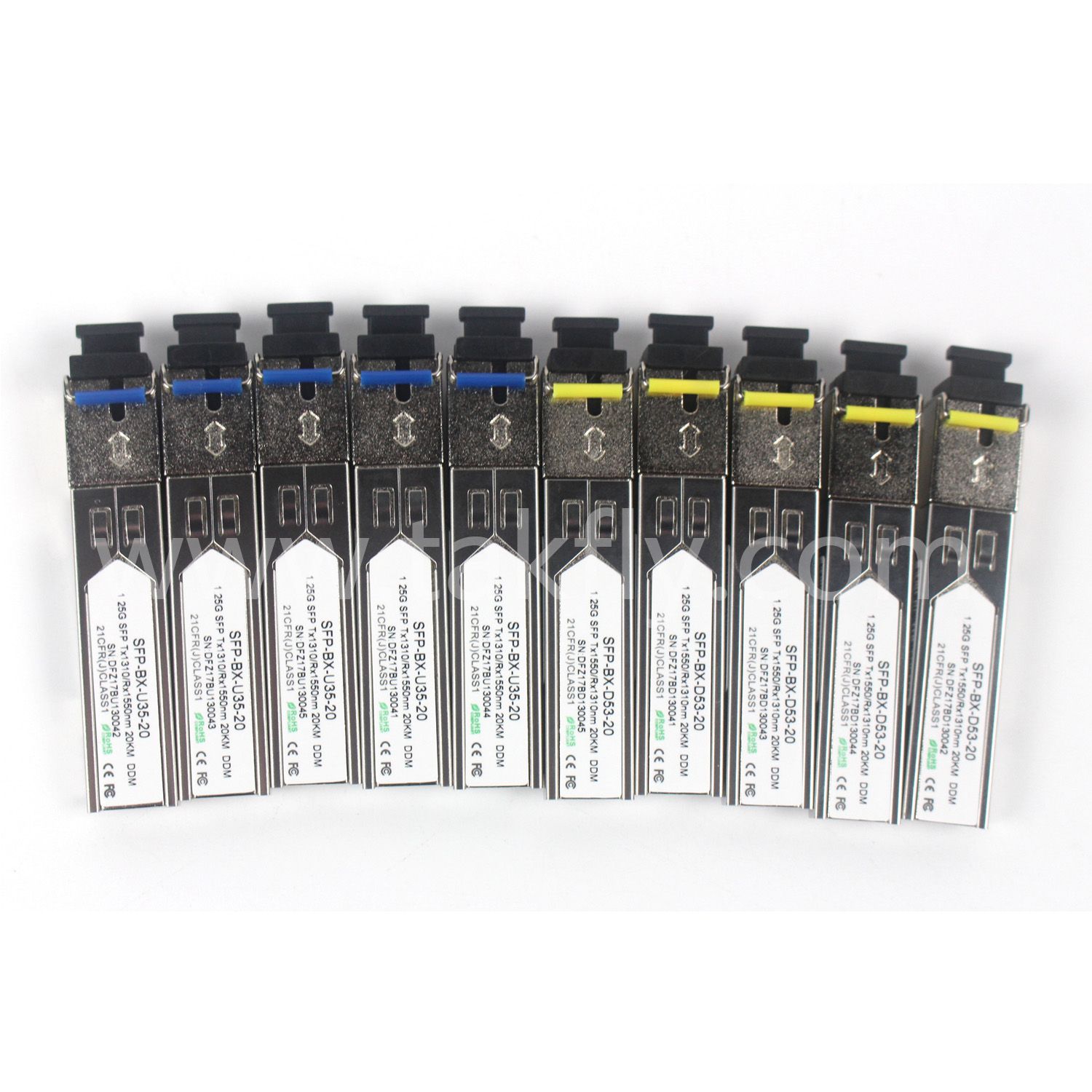

155Mbps 60km Single Mode SFP Bi-Directional Transceiver Opitcal Module
Price: |
US $ 20-50/Pairs |
Min Order: |
1/Pairs |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
GPB-3503S-L6 |
Item Name: |
1310nm 155Mbps 60km Opitcal Module |
Operation Data-Rate: |
155Mbps |
Dfb Laser: |
1310nm |
Pin Photodetector: |
60km Transmission |
Compliant Info: |
SFP Msa and Sff-8472 |
Compatible: |
Cisco |
Function: |
Digital Diagnostic Monitoring |
Standard Operation Temperature: |
From 0 to 70 Degree |
Industrial Operation Temperature: |
From Under 40 to 85 Degree |
Certifications: |
Ce, RoHS and FCC |
Usage: |
Laptop |
Type: |
Wired |
Support Network: |
Ethernet |
Information Content: |
Data |
Certification: |
GS |
Condition: |
New |
Product Description
155Mbps 60km Single Mode SFP Bi-Directional Transceiver Opitcal Module1.Features1.Dual data-rate of 1.25Gbps/1.0625Gbps operation;
2.18 CWDM DFB wavelengths laser and PIN photodetector for 80km transmission;
3.Duplex SC optical interface;
4.Standard serial ID information compatible with SFF-8053+3.3V/5Vsingle power supplyRoHS Compliant;
5.Operating case temperature: 0 to +70ºC;2.Applications1.Switch to Switch interface;
2.Switched backplane applications;
3.Router/Server interface;
4.Other optical transmission systems;3.DescriptionThe GBIC transceiver is high performance, cost effective module supporting dual data-rate of 1.25Gbps/1.0625Gbps and from 80km transmission distance with SMF.
The transceiver consists of two sections: The transmitter section incorporates a DFB laser. And the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All odules satisfy class I laser safety requirements.
The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.
The standard serial ID information Compatible with GBIC MSA describes the transceiver's capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the two-wire serial CMOS EEPROM protocol. For further information, please refer to SFF-8053.
Absolute Maximum Ratings
Stress in excess of the maximum absolute ratings can cause permanent damage to the module.
Table 1 - Absolute Maximum Ratings Parameter | Symbol | Min | Typical | Max | Unit |
Maximum Supply Voltage | Vcc | 0.5 | - | 4.5 | V |
Storage Temperature | TS | -40 | - | +85 | ºC |
Relative Humidity | RH | 0 | - | +85 | % |
Table2 - Recommended Operating Conditions Parameter | Min | Typical | Max | Unit |
Operating Case Temperature | Standard | 0 | - | +70 | ºC |
Power Supply Voltage | 3.1 | | 5.5 | v |
Power Supply Current | | | 300 | mA |
Data Rate | Gigabit Ethernet | | 1.25 | | Gbps |
Fibre Channel | | 1.0625 | |
DF-xx24-08C
See table3 below for "xx" values
Table3 -λC Wavelength Guide λC Wavelength Guide |
Code | λC | Unit | Code | λC | Unit | Code | λC | Unit | Code | λC | Unit |
27 | 1270 | nm | 37 | 1370 | nm | 47 | 1470 | nm | 57 | 1570 | nm |
29 | 1290 | nm | 39 | 1390 | nm | 49 | 1490 | nm | 59 | 1590 | nm |
31 | 1310 | nm | 41 | 1410 | nm | 51 | 1510 | nm | 61 | 1610 | nm |
33 | 1330 | nm | 43 | 1430 | nm | 53 | 1530 | nm | | | |
35 | 1350 | nm | 45 | 1450 | nm | 55 | 1550 | nm | | | |
Optical and Electrical Characteristics:
DF-xx24-08C: (CWDM and PIN, 80km)
Table3 - Optical and Electrical Characteristics (Operating case temperature TC=25ºC, VCC=3.3V) Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
Transmitter |
Spectral Width (-20dB) | σ | | | 1 | nm | |
Side Mode Suppression Ratio | SMSR | 30 | | | dB | |
Average Output Power | P0ut | 0 | | +5 | dBm | 1 |
Extinction Ratio | ER | 9 | | | dB | |
Output Optical Eye | IEEE 802.3z and ANSI Fiber Channel compatible | 2 |
Data Input Swing Differential | VIN | 200 | | 2400 | mV | 3 |
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |
TX Disable | Disable | | 2.0 | | Vcc | V | |
Enable | | 0 | | 0.8 | V | |
TX Fault | Fault | | 2.0 | | Vcc+0.3 | V | |
Normal | | 0 | | 0.8 | V | |
Receiver |
Receiver Sensitivity | | | | -23 | dBm | 4 |
Receiver Overload | | -3 | | | dBm | 4 |
Optical Path Penalty | | | | 1 | dB | 5 |
LOS De-Assert | LOSD | | | -24 | dBm | |
LOS Assert | LOSA | -30 | | | dBm | |
LOS Hysteresis | | 1 | | 4 | dB | |
Data Output Swing Differential | VOUT | 600 | | 1000 | mV | 6 |
Notes:
1. The optical power is launched into SMF.
2. Measured with a PRBS 27-1 test pattern @1250Mbps.
3. PECL input, internally AC coupled and terminated.
4. Measured with a PRBS 27-1 test pattern @1250Mbps, BER ≤1×10-12.
5. Measured with a PRBS 27-1 test pattern @1250Mbps, over 20km G.652 SMF, BER ≤1×10-12.
6. Internally AC coupled.
EEPROM Section
The SFF-8053 defines a 256-byte memory map in EEPROM describing the transceiver's capabilities,
standard interfaces, manufacturer, and other information, which is accessible over a 2 wire serial
interface at the 8-bit address 1010000X (A0h).
Pin Descriptions
Pin Name | Pin# | Name/Function | Signal Specification |
Receiver signals |
RGND | 2,3,11,14 | Receiver Ground (may be connected sith TGND in GBIC) | Groud,to GBIC |
VDDR | 15 | Receiver+3.3/5 volt (may be connected with VDDT in GBIC) | Power,to GBIC |
-RX_DAT | 12 | Receive Data,Differential PECL | High speed serial.from GBIC |
+RX_DAT | 13 | Receive Data,Differential PECL | High speed serial.from GBIC |
RX_LOS | 1 | Receiver Loss of Signal,logic high,open collector compatible,4.7k to 10kΩpull up to VDDT on host | Low speed,from GBIC |
Transmitter signals |
TGND | 8,9,17,20 | Transmitter Groud (may be connected with RGND internally) | Ground,to GBIC |
VDDT | 16 | Transmitter +3.3/5 volt (may be connected with VDDR in GBIC) | Power,to GBIC |
-TX_DAT | 18 | Transmit Data, Differential PECL | High speed serial,to GBIC |
+TX_DAT | 19 | Transmit Data, Differential PECL | High speed serial,to GBIC |
TX_DISABLE | 7 | Transmitter Disable, logic high, open collector Compatible,4.7k to 10kΩ pull up to VDDT on GBIC | Low speed,to GBIC |
TX_FAULT | 10 | Transmitter,Fault,logic high, open collector compatible,4.7k to 10kΩ pull up to VDDT on host | Low speed,from GBIC |
Control signals |

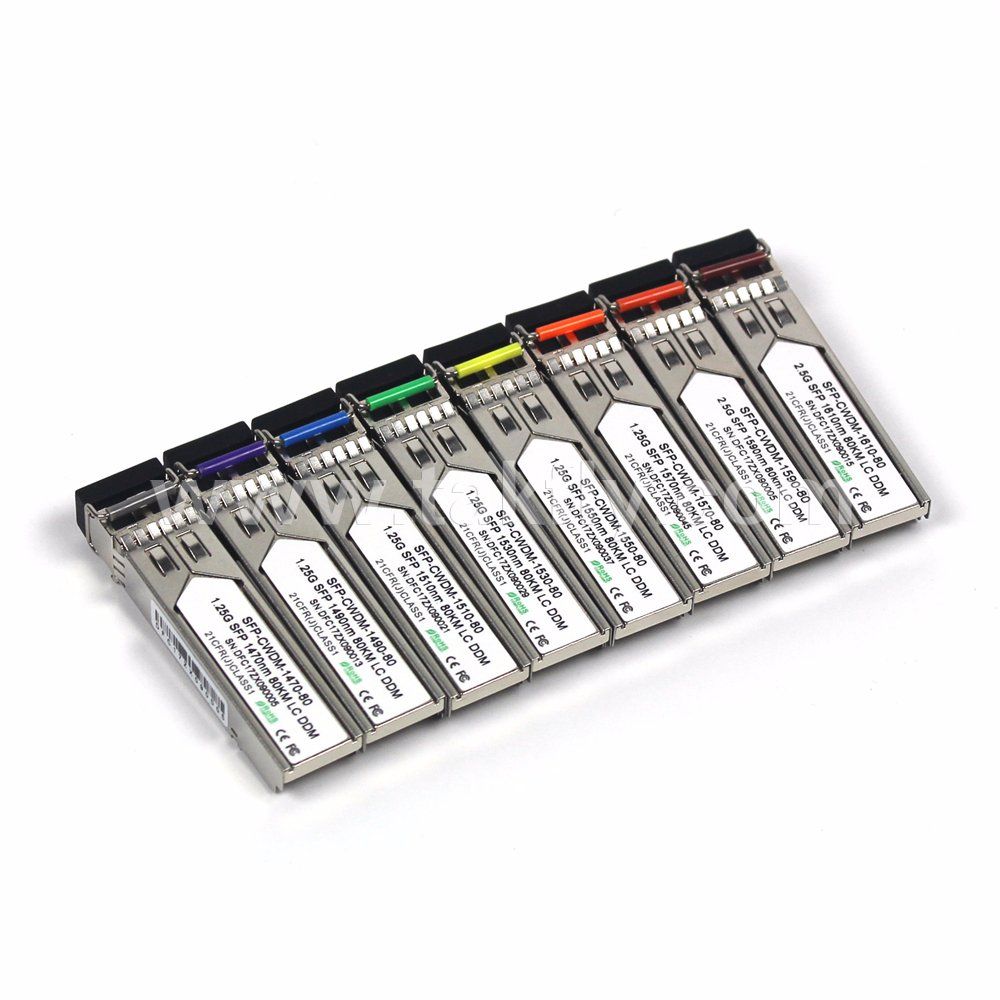

MOD_DEF(0) | 4 | TTL low, output | Please reference SFF-8053,Annex D; Module definition"4" |
MOD_DEF(1) | 5 | SCL serial clock signal, input |
MOD_DEF(2) | 6 | SDA serial data signal, input/output |
4.Ordering information Part number | Product Description |
DF-2724-08C | 1270nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-2924-08C | 1290nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-3124-08C | 1310nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-3324-08C | 1330nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-3524-08C | 1350nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-3724-08C | 1370nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-3924-08C | 1390nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-4124-08C | 1410nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-4324-08C | 1430nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-4524-08C | 1450nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-4724-08C | 1470nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-4924-08C | 1490nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-5124-08C | 1510nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-5324-08C | 1530nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-5524-08C | 1550nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-5724-08C | 1570nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-5924-08C | 1590nm, 1.25Gbps, 80km, 0°C~+70°C |
DF-6124-08C | 1610nm, 1.25Gbps, 80km, 0°C~+70°C |
5.Company InformationTakfly, established in 2000, has been manufacturing and exporting in fiber optic communications for more than 15 years. Mainly supplying fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. Our goods have passed RoHS, CE, ISO9001, FCC, etc. verifications.
With the development of optical communications, Takfly's turnover has been increasing steadily. To strengthen the brand recognition and communication with more clients, Takfly participates in several industrial exhibitions every year in the whole word.
The products we sell is manufactured by our own factories. Our main aim is to supply high quality goods to our customers. Therefore, Takfly has imported foreign advanced production equipment 5 years ago, mainly made in German, Japan. The skilled technicians and professional sales team are available. Standard production management system has been built. Any requirements and inquiries will be processed with 24 hours. Strict test is a must before delivery. Apart from these, we have steady transport service. So, we can provide you the optimal transportation.
No complaints is one of our aims. We believe that our products can help you win good reputation and market share.
Hereby, we sincerely hope to establish a long-term business relationship with you in the future.

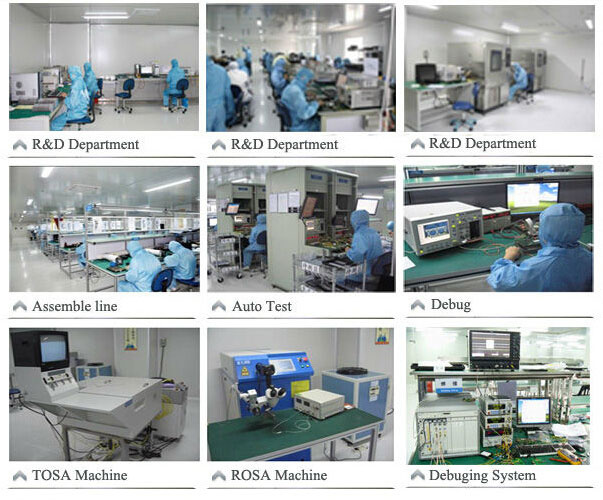

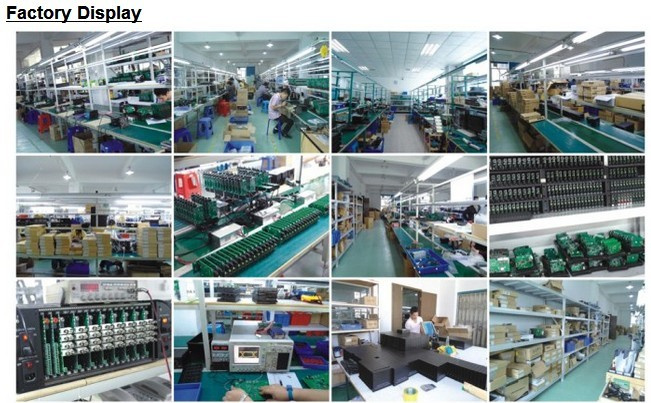

Welcome to visit Takfly Communications Co., Ltd. We are waiting for your coming!6.Item and company images




Why choose Takfly ?Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Delivery

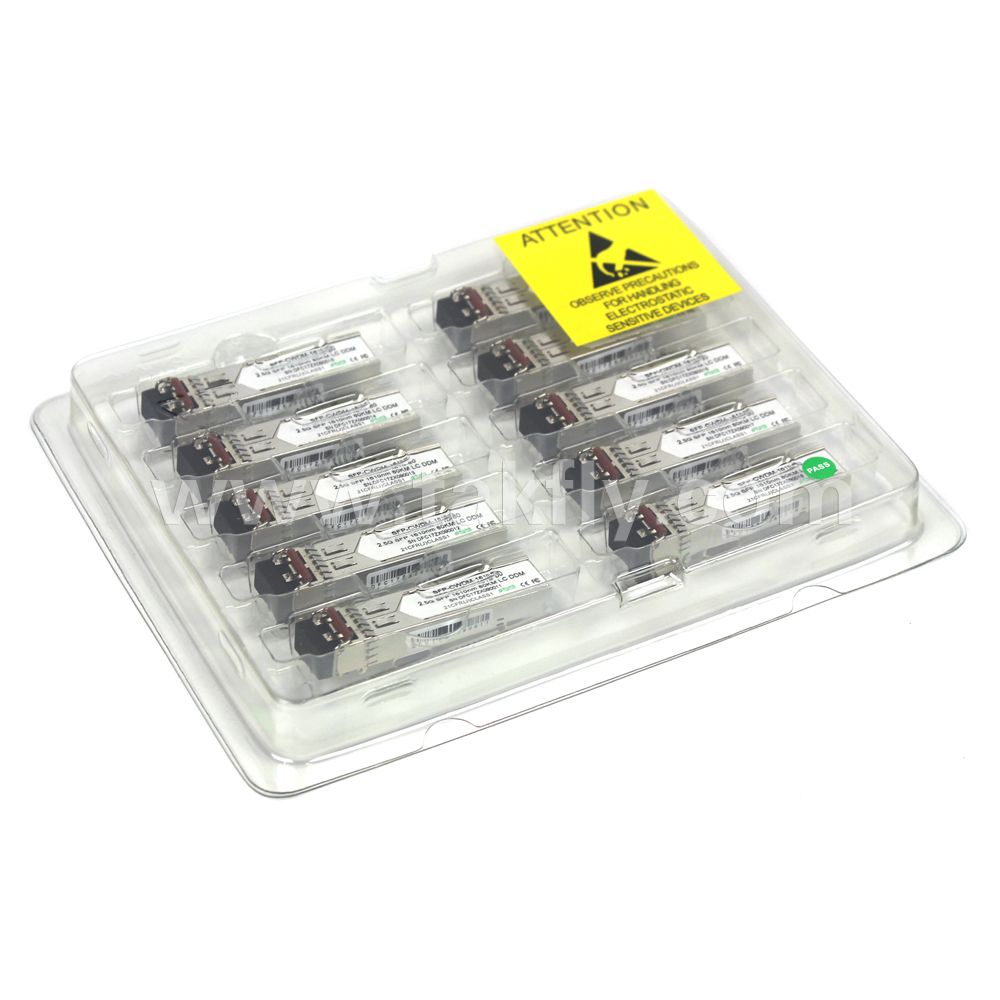

1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast, reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Your inquiry will be warmly welcomed and you can email or call me if any questions refer to following info:
Tel:0086 13537892205
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
