Product Description

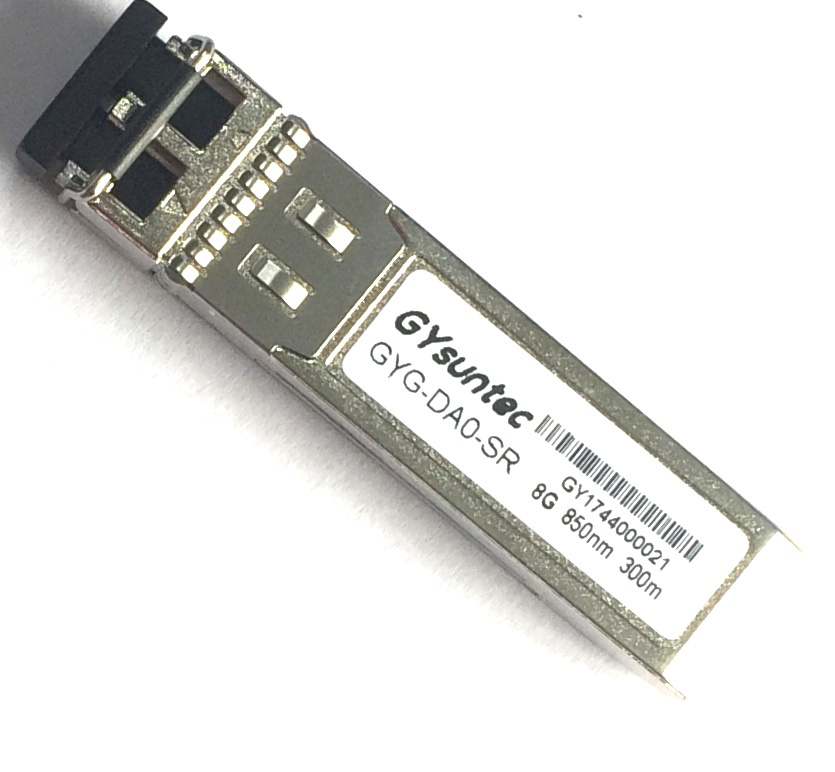

10Gb SFP+ 10Gb Ethernet , 850nm Transceiver
GY-GDA-SR
Features
- RoHS Compliant
- Low power dissipation < 0.8W
- Single 3.3V power supply
- Duplex LC connector
- Operation Temperature: 0~+70ºC
- AC-coupled differential serial I/O interface
- 850nm wavelength
- Class 1 laser safety
- Bail delatch for easy removal from cage
- Immune to ESD, RF fields, and Vcc noise
Applications- 10GBase-SR/SW
- 10G Ethernet
Product Description
The GY-GDA-SR of the Enhanced Small Form Factor Pluggable (SFP+) transceiver module is designed for high performance integrated data link over dual multi-mode optical fibers. The high-speed laser diode and photodiode are provided as a light source and a detector, respectively. Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFF 8472, SFF 8431 and IEEE 802.3ae 10GBASE-SR. Transmitter Specifications
| Parameter | Symbol | Min | Typ | Max | Unit | Note |
| Optical Characteristics |
| Output Optical Power | POUT | -7
| | -1 | dBm | 1 |
| Extinction Ratio | ER | 3 | | | dB | 1 |
| Center Wavelength | Λc | 840 | | 860 | nm | 1,2 |
| Spectral Width (RMS) | △λ | | 0.4 | | nm | 1,2 |
| Optical Modulation Amplitude (OMA) | OMA | -3.3 | | | dBm | 1,2 |
| Electrical Characteristics |
| Input Amplitude, Differential | Vi_diff | 180 | | 700 | mVp-p | |
| Input Impedance, Differential | Zi_diff | | 100 | | Ω | |
| Transmit Disable Voltage | VDIS | 2 | | VCCHOST | V | |
| Transmit Enable Voltage | VEN | VEE | | VEE+0.8 | V | |
Notes:
- All of data is measured at 10.3125 Gbps, PRBS 231-1, NRZ.
- These parameters are interrelated:see IEEE 802.3ae, Clause 52.
Receiver Specifications
| Parameter | Symbol | Min | Typ | Max | Unit | Note |
| Optical Characteristics |
| Optical Sensitivity(OMA) | PIN | | | -11.2 | dBm | A |
| LOS De-Assert Power | LOS_PA | | | -12 | dBm | |
| LOS Assert Power | LOS_PD | -30 | | | dBm | |
| LOS Hysterisis(Complete) | HYS_LOS | 0.5 | | | dB | |
| Receiver Overload | PIN | -1 | | | dBm | |
| Input Operating Wavelength | Λc | 840 | | 860 | nm | |
| Receiver Reflectance | RL | | | -12 | dB | |
| Output Impedance, Differential | Zo_diff | | 100 | | Ω | |
| Electrical Characteristics |
| Output Amplitude, Differential | Vo_diff | 300 | | 850 | mVp-p | |
Notes:
For Bit Error Rate better than or equal to 1×10-12 with a 231-1 PRBS test pattern.
