| Prod Model: |
WD-TS037 |
| Resistance: |
10k Ohm |
| Tolerance: |
1%, 2%, 3% |
| B.Value: |
3380k |
| Sensor Probe: |
ABS Round Jacket Able, White |
| Operation Range: |
-40~105c |
Product Description

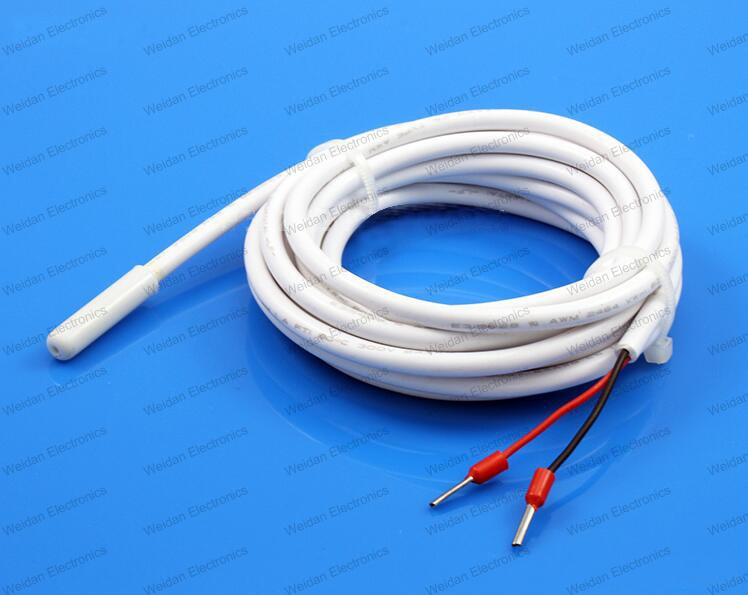

Waterproof and Dust Resistant NTC Floor Sensor 10K Ohms with Round Cable.
--FEATURES;
*Key point for temperature sensing and electronics control
*Sensor Design following double insulations(principal = supplementary insulation for sensor head)
*High adhesive strength Between PVC Wire and ABS Shell
*specifically developed design allow for a very godo water, moisture and ICE resitance
*The Sensors are available with single insulated cables,and with PVC-Free cable.
Applications:
Temperature mesurement sensing and control
White goods
refrigerator, freezer, deep-freezers, coolers
Ice Cube Makers
Floor heating system
| Sensor Type | NTC, 5K, 10K, 20K, 50K, 100K, Customized |
| operating Temperature | -20~120c, -30~250c, -40~350C, Customized |
| Resistance Tolerance | 0.5%, 1%, 2%, 3%, 5% |
| housing Size | customized |
| Housing Material | nickel-clad copper, brass, stainless steel, aluminum |
| Wire length | Customized |
| Special requirement | Waterproof, anticorrosion, or others |
| | |
6*30mm/6*50mm Waterproof Digital Termal Probe Sensor DS18B20 IP68
---The latest DS18D20 1-Wire digital temperature Sensor from Maxim IC, Reports Degree C with 9 to 12-Bit Precision, -55C to 125C (±0.5C), Each sensor has a uniquie 64-bit Serial Number etched into it--Allows for a huge number of sensors to be used on one data bus, This is a wonderful part that is the comer Stone of many Data-logging and temperature control projects.
--CABLE SPECS:
* Stainless steel tube Dia: 6*30mm, 6*50mm.
* Cable UL21411 #24AWG*3C
* Contains DS18B20 Temperature Sensor
* Output lead: Red(VCC), Blue(DATA), Black(GND)
DS18B20 TECHNICAL SPEC.:
*Usable Temperature Range: -55 to 125C (-67F to +257F)
*9 to 12 Bit selectable Resolution
*Uses 1-wire interface-Requires only one digital pin to Communication
*Unique 64 bit ID burned into Chip
*Multipe Sensors can share one pin
*±0.5C Accuracy from -10c to +85C
*Temperature limit alarm system
*Query Time is less than 750ms
*Usable with 3.0v to 5.5V power/Data
MORE DS18B20 SENSOR SOLUTIONS;
*Probe Size: Dia 6*26mm, 6*45mm, 6*50mm, or to be advised
*Probe material: SUS304, SUS316, PVC, ABS, TPE etc
*Cable: PVC, TPE, Silicon,
*Connector: 2.5mm/3.5mm Stereo plug, RJ11/RJ12/RJ45, USB, M12/16, BNC, 3P-2510 Etc.
