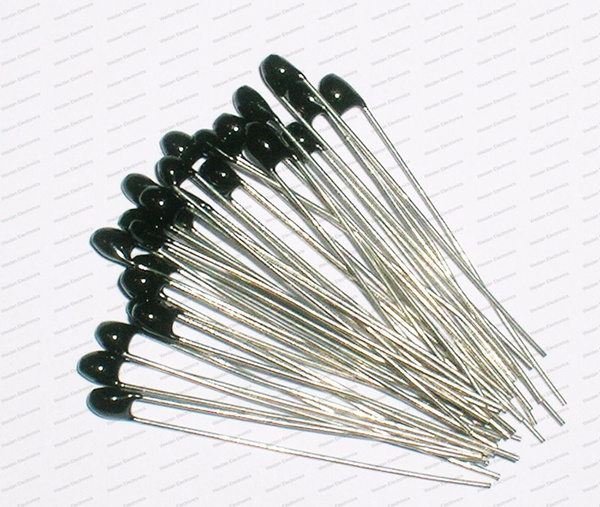

5k Mf52 Tc Brass Lead Expoxy Coated Ntc Thermistors
| Price: |
US $ 0.2-1.8/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WD-TS025 |
| B. Value Accuracy: |
+/- 1% |
| B. Value: |
3470k |
| Resistance: |
5k Ohms |
| Operating Temperature: |
-40c- 120c |
| Coating: |
Epoxy Resin |
| Rated Power: |
3.5MW |
Product Description
MF52 Tinned Copper Brass Lead Epoxy Coated NTC Thermistors 5K Ohms
--Specification:
The range of resistance under the reated zero power (R25C) 5K ohms
The allowable tolerance of R25C: ±1%, ±2%, ±3%, ±5%
Thre range of B Value (B25/50C): 3470K
The allowable tolerance of B value:±0.5%, ±1%, ±2%
The range of operating temperature: -40C~ +120C
Dissipation factor:.>=2mW/C (In still Air)
Thermal Time Constant:<=7s( in still air)
FEATURES:
*Epoxy inclosed, Small in volumn, with quick response time and high sensitivety
*Stable in working, high in reliability and precision.
*Consistent and easy to interchange
APPLICATIONS:
*Electric thermo meter, electric calender, electic clock temperature presentation and electic gift
* Cooling and heating euipment, electic heating with constant appliances
* automobile electric temperature measurement and control circuit
*Temperature sensor and temperature instrument
*Medical electrical equipment and electric toilet facility.
WE HAVE MORE OPTIONS:
| OPTION | TEMPERATURE RANGE (DEG C) |
| Thin film NTC Thermistor | -50~125 |
| Epoxy-sealed NTC Thermistor | -50~125 |
| Glass-Sealed NTC Thermistor | -50~300 (Radial/Aial0 |
| NTC Sensor Type | 5k, 10k, 20k, 50k, 100K or Customized |
| Operating Temperature | -20C~+120C, -30C~+250C,-40C~350C, or Customized |
| Resistance Tolerance | 0.5%, 1%, 2%, 3% |
| Housing | Nickel plated Copper, Brass, Stainless Steel, Aluminum, Plastic or customized |
| Wire | Teflon wire, PVC Wire, Silicon Wire, Customized |
| Connector | TJC3, 2.54, SMR, SMP, 5566,5264, PH, EH, 557 |
