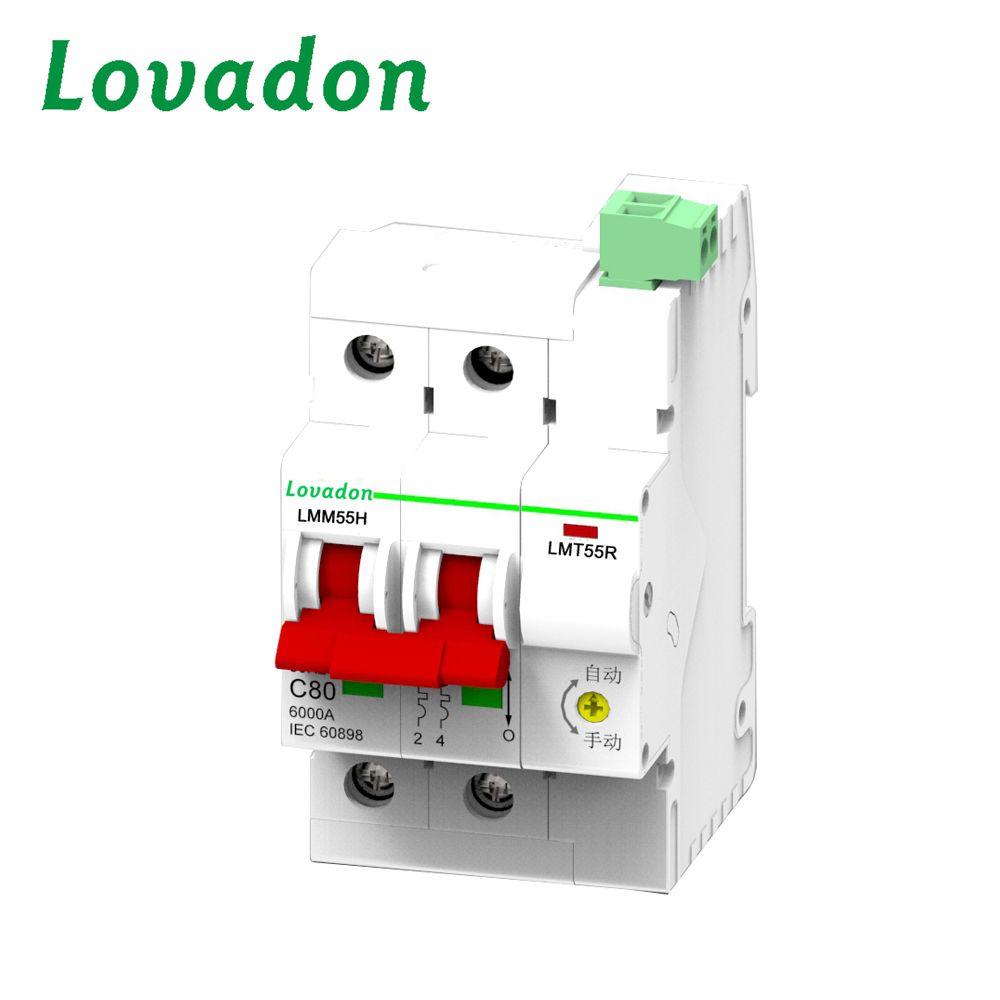

10ka Electric 1A/3A/6A/10A/16A/20A/32A/40A/50A/63A Auto Miniature Circuit Breaker

Name: 10ka Electric 1A/3A/6A/10A/16A/20A/32A/40A/50A/63A Auto Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 837036135
Availability: InStock
Rating: 4.9 (48 reviews)

Price:	US $ 4.4-4.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMM55H
Pole No.:	1,1p+N,2,3,3p+N,4
Rated Current:	1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63A
Rated Voltage:	AC 230/400V
Energy Limiting Class:	3
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Insert
Structure:	MCB
Poles Number:	2
Certification:	CE

Product Description

Advantages:

The state-of-art design
◊Elegant appearance; cover and handle in arc shape make comfortable operation.
◊Contact position indicating window
◊Transparent cover designed to carry label.
Handle central-staying function for circuit fault indicating
◊In case of overload to protected circuit, MCB handle trips and stays at central position,
which
◊enables a quick solution to the faulty line. The handle cannot stay in such position when
operatedmanually.
High short-circuit capacity
◊High short-circuit capacity 10KA for whole range and 15kA capacity for current rating up to
40A thanks to the powerful electric arc extinguishing system.
◊Long electrical endurance up to 6000 cycles thanks to quick making mechanism.
Handle padlock device
◊MCB handle can be locked either at "ON" position or at"OFF" position to prevent unwanted
operation of the product.
Screw terminal lock device
◊The lock device prevents unwanted or casual dismounting of connected terminals.

Technical Data

Pole No.:	1,1P+N,2,3,3P+N,4
Rated voltage:	AC 230/400V
Rated current (A):	1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63
Tripping curve:	B,C,D
Rated short-circuit capacity (Icn):	10000A
Rated service short-circuit breaking capacity(Ics):	7500A
Rated frequency:	50/60Hz
Energy limiting class:	3
Rated impulse withstand voltage:	6.2kV
Electro-mechanical endurance:	8000

Contact position indication
Connection terminal:
◊Screw terminal
◊Pillar terminal with clamp

Connection capacity: Rigid conductor up to 25mm
Fastening torque: 2.0Nm
Installation:
◊On symmetrical DIN rail 35mm
