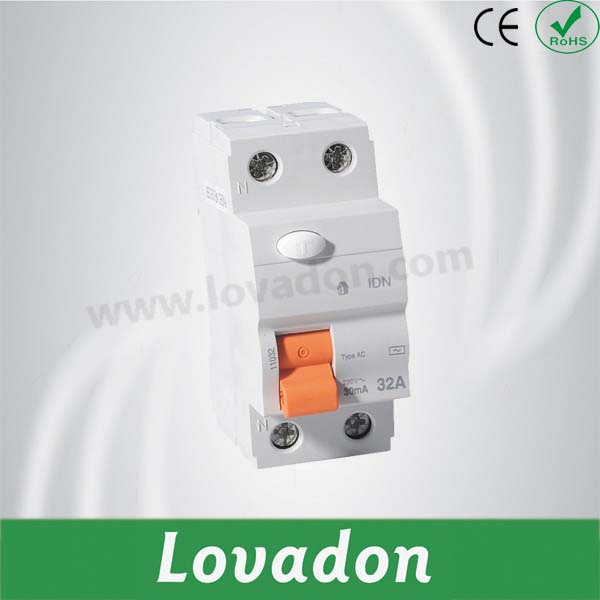

New Type Idn RCCB 2 Pole Residual Current Circuit Breaker

Name: New Type Idn RCCB 2 Pole Residual Current Circuit Breaker
Brand: all-electronics-online.com
SKU: 684056262
Availability: InStock
Rating: 4.4 (114 reviews)

Price:	US $ 3.5-3.55/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IDN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	25,40,63A
Rated Voltage:	230/400V
Rated Frequency:	50/60 Hz
Material:	PA66/PC
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Poles Number:	2
Certification:	CE
Structure:	RCCB

Product Description

Residual Current Circuit Breaker IDN

They have a residual current operated electromechanical release which operates without any auxiliary source of supply to open a circuit automatically in the case of an earth leakage fault between phase and earth greater than or equal to a threshold of 10mA, 30mA, 100mA, 300mA or 500mA

Electrical Feature	Standard		IEC61008-1
	Type(wave form of the earth leakage sensed)		AC,A
	Rated current In	A	25,40,63
	Poles	P	2,4
	Rated voltage Ue	V	230/400
	Rated sensitivity I n	A	0.03,0.1,0.3 0.5
	Insulation voltage Ui	V	500
	Rated residual making and	A	500(In=25A/40A)
	breaking capacity I m		630(In=63A)
	Short-circuit current I c	A	6000/10000
	SCPD fuse	A	10000
	Break time under I n	s	<0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage(1.2/50)Uimp	V	6000
	Dielectric test voltage at ind Freq for 1 min	kV	2.5
	Pollution degree		2
MechanicaI features	Electrical life	t	4000
	MechanicaI Iife	t	20000
	Fault current indicator		Yes
	Protection degree		IP20
	Ambient temperature	C	-5~+40
	(with daily average 35 )

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
