C63 Residual Current Circuit Breaker RCCB

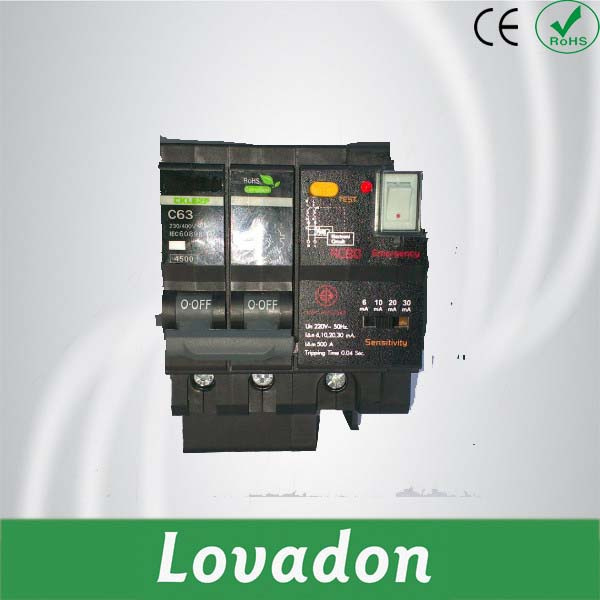

Name: C63 Residual Current Circuit Breaker RCCB
Brand: all-electronics-online.com
SKU: 786671095
Availability: InStock
Rating: 4.8 (102 reviews)

Price:	US $ 5-7/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	C63
Rated Voltage Ue:	230/400
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Certification:	CE
Breaking Capacity:	4.5 Ka 6ka Loka
Operation:	Electrical Type / Magr
Structure:	RCCB
Poles Number:	2p,4p

Product Description

1.Item name: C63
2.Standard:IEC61008-1
3.Function:Leakage protection
4. Rated voltage: 230/400
5. Rated current: 16A/25A/32A/40A/63A /80A/100A
6. Frequency: 50/60Hz
7.Size:

1.Specifications
Electrical Feature	Standard		IEC61008-1
	Type(wave form of the earth leakage sensed)		AC,A
	Rated current In	A	25,40,63
	Poles	P	2,4
	Rated voltage Ue	V	230/400
	Rated sensitivity I n	A	0.03,0.1,0.3 0.5
	Insulation voltage Ui	V	500
	Rated residual making and	A	500(In=25A/40A)
	breaking capacity I m		630(In=63A)
	Short-circuit current I c	A	6000/10000
	SCPD fuse	A	10000
	Break time under I n	s	<0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage(1.2/50)Uimp	V	6000
	Dielectric test voltage at ind Freq for 1 min	kV	2.5
	Pollution degree		2
MechanicaI features	Electrical life	t	4000
	MechanicaI Iife	t	20000
	Fault current indicator		Yes
	Protection degree		IP20
	Ambient temperature	C	-5~+40
	(with daily average 35 )

Specification

Rated voltage	400V
Rated current	1~32A
Case current class	32A
Breaking capacity	6KA
According to standands	GB10917.1
Rated residual action current	30mA
Rated residual no-action current	15mA
Rated residual close & break capacity	2KA
Impulse withstand voltage	Uimp = 4KV
Earthleakage action time	≤0.1s

Packing and shipping
-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
