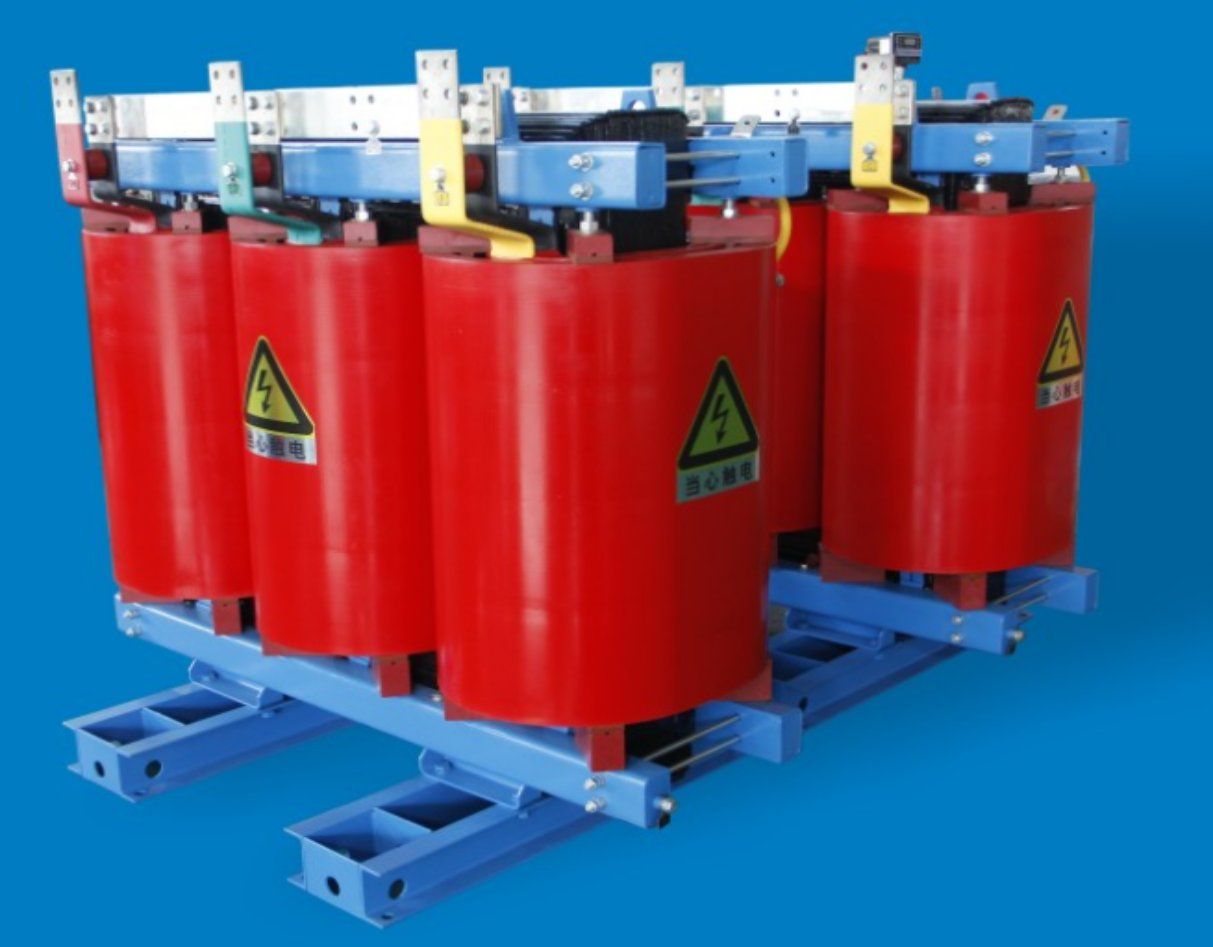

10kv, 20kv Resin Insulation Dry-Type Transformer
| Price: |
US $ 500-10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
10KV, 20KV Resin Insulation Dry-type transformer |
| Application: |
Electricity Substation |
| Phase: |
Three |
| Coil: |
Amorphous Alloy Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Shenrong Electric |
Product Description
1. Product Name:
10KV,20KV Resin Insulation Dry-type transformers
2. Product description:
With national city network, rural power network being remoulded implementation and construction and the major power grid developing, each distribution network are unified to 20KV line network. Considering it will take some time that 10KV level power supply is transformed to 20KV level for China partial districts and some institutions, users will purchase high voltage 10KV, 20KV double voltage distribution transformer from transformer manufacturer in order to save money. And there are many kinds power supply system (10KV, 20KV and so on) in international market many countries since some history reason. When those countries purchase transformers, they always consider two voltage power supply demand in order to match practical situation of electricity network and power supply demand.
In view of the above situation and combining domestic practical situation demand, our company have designed and developed 10KV,20KV high double voltage distribution transformer according to technical conditions of users' procurement.
3. Performance features:
(1)After 10kV and 20kV converted, connection group isn't changed and the proportion of voltage is constant.
(2)Reasonable transformer wingding numbers arrangement, strong resistance to short circuit.
(3)Under two voltage opterating state, there is no idle winding turns and low load loss of transformer.
(4)Convenient use for users, If only high voltage outing line is changed, it will can realize to convert between two voltage.
4. Technology Parameters:
| Technology Parameters | | | | | | | | | | | | |
| Product Model | Rated Capacity
(KVA) | Rated Voltage | Coupling
Groups | No-load
loss
(W) | Load loss(W) | No-load
Current
(%) | Impedance
Voltage
(%) | Weight
(KG) | Sound
Level(DO) |
High Voltage
(kV) | High Voltage
Branching range | Low Voltage
(kV) | 100ºC | 200ºC |
| SC(B)10-50/20 | 50 | 20 | ±2*2.5% | 0.4 | Yyn0 or
Dyn11 | 340 | 1170 | 1230 | 2.4 | 5.5
6.0 | 390 | 50 |
| SC(B)10-100/20 | 100 | 540 | 1880 | 1990 | 2.2 | 580 | 51 |
| SC(B)10-160/20 | 160 | 670 | 2350 | 2470 | 1.8 | 780 | 53 |
| SC(B)10-200/20 | 200 | 740 | 2800 | 2950 | 1.8 | 950 | 54 |
| SC(B)10-250/20 | 250 | 850 | 3270 | 3420 | 1.6 | 1080 | 54 |
| SC(B)10-315/20 | 315 | 970 | 3900 | 4090 | 1.6 | 1310 | 56 |
| SC(B)10-400/20 | 400 | 1150 | 4660 | 4850 | 1.4 | 1530 | 56 |
| SC(B)10-500/20 | 500 | 1350 | 5510 | 5800 | 1.4 | 1810 | 58 |
| SC(B)10-630/20 | 630 | 1530 | 6540 | 6840 | 1.2 | 2150 | 58 |
| SC(B)10-800/20 | 800 | 1760 | 7820 | 8270 | 1.2 | 2580 | 60 |
| SC(B)10-1000/20 | 1000 | 2070 | 9230 | 9790 | 1.0 | 2950 | 60 |
| SC(B)10-1250/20 | 1250 | 2380 | 10930 | 11540 | 1.0 | 3480 | 61 |
| SC(B)10-1600/20 | 1600 | 2790 | 13090 | 13870 | 1.0 | 4190 | 61 |
| SC(B)10-2000/20 | 2000 | 3240 | 15490 | 16390 | 0.8 | 4860 | 63 |
| SC(B)10-2500/20 | 2500 | 3870 | 18380 | 19380 | 0.8 | 5750 | 63 |
| SC(B)10-2000/20 | 2000 | 3240 | 16910 | 17860 | 0.8 | 4950 | 63 |
| SC(B)10-2500/20 | 2500 | 3870 | 20240 | 21280 | 0.8 | 5630 | 63 |
Rongdian provide perfect convoy for cities' construction. We are power integration service provider. Great Value, High Efficiency, Building Green Life.
Established in 1995, Shenzhen Rongdian Enterprise Co., Ltd is professional international electronic power equipments manufacturing entity, engaged in all production works inculding R&D and mainly focusing on engineering project contracting, integrated electricity equipments supply at abroad, in the field of power sector including electricity substation, high voltage switchgear, low voltage switchgear, cable tray products and so on. Our factory is located in Shenzhen, Guangdong, China.
Shenzhen Rongdian Enterprise Co., Ltd mainly produce low and high voltage full electric equipment sets. Rongdian have changed fundamentally through around twenty five years developing since the company was established in 1995. Rongdian have realized transformation of scientific service of high tech, high value-added, more kinds full electric equipment sets' design, manufacturing, debugging, installing from single switchgear cabinet production.
Presently, Rongdian is built with modern standard of factory room more 12, 000 square meters, advanced processing machine, elaborate testing device, excellent technical team, and skilled workers. Rongdian is a specialized research and development production and marketing company that establish enterprise management system gradually and improve management level continuously. In order to get perfect quality products, Rongdian carry out developing strategy of powerful combination, absorbing advanced management experience, applying international technology standard to produce our products. Also Rongdian get production certification of full switchgear sets from Guangdong Electronic Machinery Industry Hall and Guangdong Power Industry Bureau two departments.
Rongdian have passed ISO9001 Quality Management System Certification in 1999. Rongdian have become qualified company firstly by CCC certification of low voltage full equipment set in 2003. Rongdian have got the title of Excellent Products Of Chinese Industry many annual years and times.
Our company main products are GCK, CGS, MNS, BFC, GGD, PGL series low voltage full electronic equipment sets, KYN28A, XGN15-12, HXGN15-12, SRC-12 series medium high voltage full electronic equipment sets, YBM-12/0.4 model mobile box-type substation, electric generator compound cabinet, double-power automatic switching device, XL, JX(F), DCX(R), XM(R) series three box products and CMC-3A, CCX series busway products.
Rongdian abide by the spirit of customer first, efficient and pragmatic, innovation and improvement, insisting the policy of quality first, credibility first, forwarding ahead superior service. Basing on the business ideas of people foremost, servicing the society and reasonable price, Rongdian devote first-class products, superior service to customer and repay society with it.
