| Prod Model: |
ZGS Model Combined Type Transformer Substation |
| Structure: |
Fixed Board |
| Type: |
Transformer Substation |
| Size: |
Cubic Meter |
| Brand: |
Shenrong Electric |
Product Description
1. Product Name:
ZGS Model Combined Type Transformer Substation
2. Product description:
ZGS Model Combined Type Transformer Substation place transformer, high voltage load switch and protection device in a same oil tank with fuse protector. The transformer substation reduce volume of equipment and the tank is full sealed structure, adopted with concealed, high strength bolts and oil-resistant NBR gasket sealed case cover, which can bear 50kpa pressure long-term. The tank is designed under full consideration requirements of waterproof and anti-condensation. The top cover of tank is designed with 5% gradient to prevent water accumulation. The door is three point interlock. Once the low voltage interval is opened, the high voltage interval will be opened.

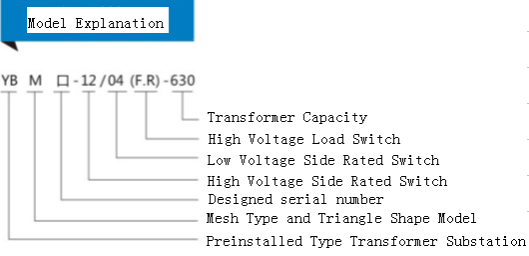

3. Model Explanation:
4. Performance Features:
ZGS type combined transformer use separated structure of load switch and transformer, which is suitable for our country users' habit to use improved American preinstalled transformer substation. It maintain those features of preinstalled tranformer substation's small size, low price, full insulation, full shielded, safe and reliable use and so on. It have solved influence of free carbon to transformer, which is produced by high voltage load switch and breaker operation. It have increased interval space and can provide various low voltage and reactive compensation solution, having reduced preinstallation transformer substation overall height and strengthen adaptive environmental ability of preinstallation transformer substation.
5. Main application:
Based on summarizing many years site service and opterating experience of Amterican type transformer substation and absorbed foreign advanced desgination and ideas, ZGS type combined transformer is specially designed and produced as a new product for our city distribution network. It has those excellent features of reliable power supply, reasonable structure, quick installation, flexibility, convenient operation, small size, beautiful and generous appearance and so on. It is mainly used in 10KV urban and rural power network and also it is widely applied in those public places of industrial and mining enterprises, airport, station, port, expressway, metro and so on.
6. Normal use conditons:
(1)Environment temperature:-25ºC-+40ºC
(2)Average temperature is not more than +30ºC in 24 hours cycle;
(3)Altitude less than 1000 meters;
(4)Wind speed not more than 34 m/s ;
(5)Relative humidity: daily average value not more than 95%, monthly average value not more than 90%;
(6)No violent vibration and impact and explosion dangerous place;
(7)When it is used in anti-corrosive of ambient air over normal environmental conditions regulated, the problem can be solved
through negotiation with our company.
