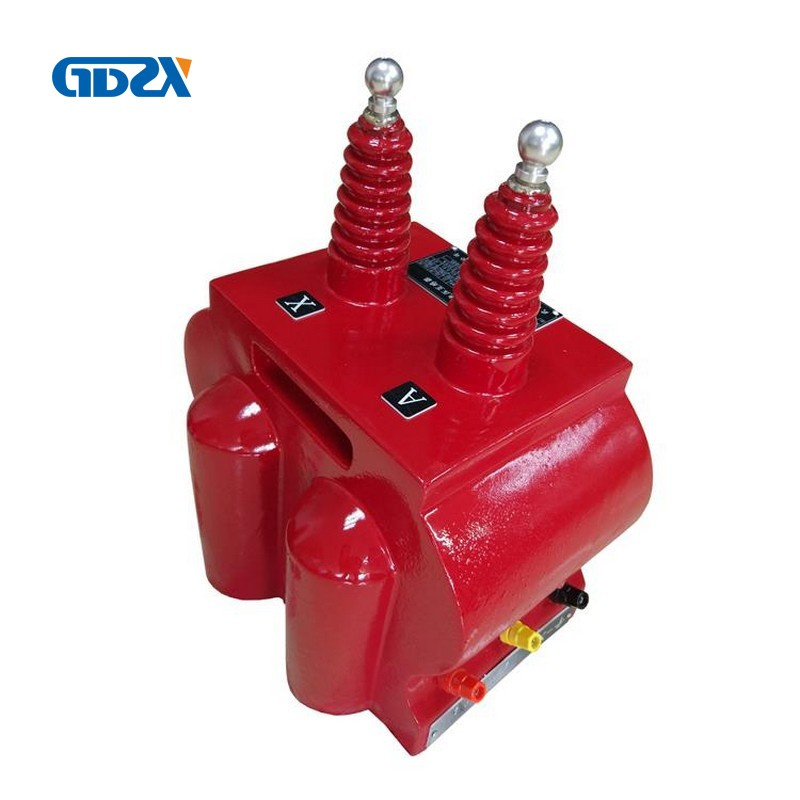

10kV Standard Potential Transformer

Name: 10kV Standard Potential Transformer
Brand: all-electronics-online.com
SKU: 815937575
Availability: InStock
Rating: 4.8 (71 reviews)

Price:	US $ 2000-3000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Zx-Hj
Warranty:	1 Year
Type:	Voltage Transformer
Phase:	Single
Application:	power plant

Product Description

This 10kV, 0.02 level potential/voltage transformer is with high voltage grade and high accuracy
that could used to check potential transformer below 10kV,0.02 level.

Parameters:

Rated voltage ratio: 10 kV /100V, 10 kV / /100V/ , 10 kV / /100V/3
Rated second capacity: 0.25VA,0.08VA,0.03VA    CosФ=1.0
Accuracy: 0.02 level
       Voltage 80%Un-120%Un: ratio error ≤0.02%, angle erro ≤0.6'
       Voltage 50%Un: ratio error ≤0.03%, angle erro ≤0.9'
       Voltage 20%Un: ratio error ≤0.04%, angle erro ≤1.2'
Remark: 10 kV /100V,10 kV / /100V/ accuracy: 0.02 level, 10 kV / /100V/3: 0.2 level

Wuhan GuoDian ZhongXing Electrical Power Equipment Co., Ltd ( GDZX ) is located in DongHu High Technology Development Zone, Wuhan City, People's Republic of China. The company established in 2012 and the factory area 6000 square meters. Good quality and customer satisfaction are always the goal here.

Our main products are Hipot Test sets, Standard Power Source, Circuit breaker analyzer, Protection relay tester, Resistance Tester, voltage generator, Transformer testing series, Oil tester, Cable and Ground fault testing series, Power quality analyzer, Storage battery tester, Lightning arrester tester and other instruments. Most of the products are featured with Intelligent design, compact structure, simple operation, which make the on site work very convenient.

Not only we are the supplier of China Power Grid System but also we are extending our business to all over the world. In the last two years we made business relationship with customers from Indonesia, Kenya, Ecuador, Japan, Korea, and we are keeping growing. It is exciting to work with your partners from every different countries.

Your any requirement is our pursuit. Welcome to Visit Us
