Name: 10kv Suspension Composite Insulator, Insulation
Brand: all-electronics-online.com
SKU: 757522325
Availability: InStock
Rating: 5 (100 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBW-10/70
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Height:	250mm
Rated Voltage:	10kv
Structure Height:	395±10mm
Minimum Mechanical Load:	70kn
Application:	High-temperature
Material:	Composite Polymer
Structure:	Pin Insulator
Type:	A Type Insulator
Size Of Bearing Capacity:	2.5kn
Brand:	Refine

Product Description

Model No.: FXBW-10/70
Material: Silicon Rubber / Polymer
Rated Voltage: 10KV
One-minute power frequency withstands voltage, 50Hz, wet. (kV): 42KV
Lighting impulses withstand voltage, 1.2/50μs positive, dry. (kV): 165KV
Minimum mechanical load (kN): 70kN
Standard: IEC61109

1.Specifications

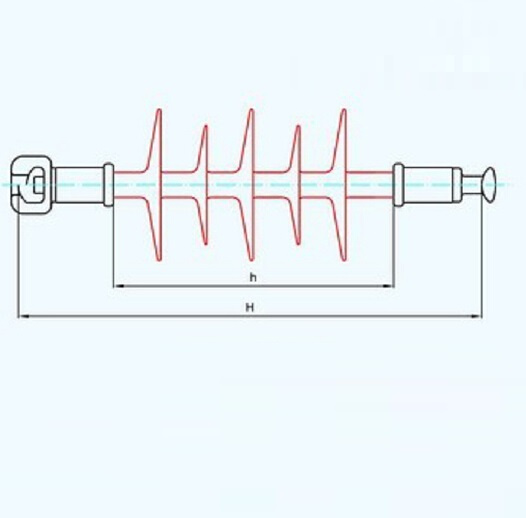

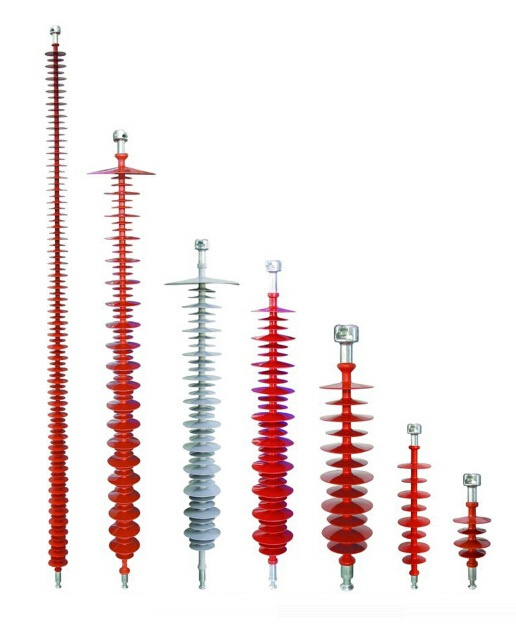

Product Model	Rated voltage (KV)	Rated mechanical bending load (KN)	Structure height H(mm)	Min Arc distance(mm)	Min creepage distance(mm)	Lightning impulse withstand voltage (peak)(KV)	1 min P.F withstand voltage (wet)(Vitrual value) (KV)
FXBW4-10/70	10	70	350±15	180	400	95	45
FXBW4-12/70	12	70	350±15	180	400	95	45
FXBW4-24/70	24	70	550±15	370	850	185	95
FXBW4-24/100	24	100	570±15	370	850	185	95
FXBW4-35/70	35	70	650±15	450	1000	230	105
FXBW4-35/100	35	100	670±15	450	1000	230	105
FXBW4-66/70	66	70	920±15	700	1900	410	185
FXBW4-66/100	66	100	940±15	700	1900	410	185
FXBW4-110/70	110	70	1200±15	1000	3150	550	230
FXBW4110/100	110	100	1200±15	1000	3150	550	230
FXBW4220/100	220	100	2240±30	1900	6300	1000	395
FXBW4220/160	220	160	2240±30	1900	6300	1000	395
FXBW4330/100	330	100	2990±30	2600	9075	1425	570
FXBW4330/160	330	160	2990±30	2600	9075	1425	570
FXBW4330/210	330	210	2990±30	2600	9075	1425	570
FXBW4550/160	500	160	4450±300	4000	13750	2250	740
FXBW4500/210	500	210	4450±300	4000	13750	2250

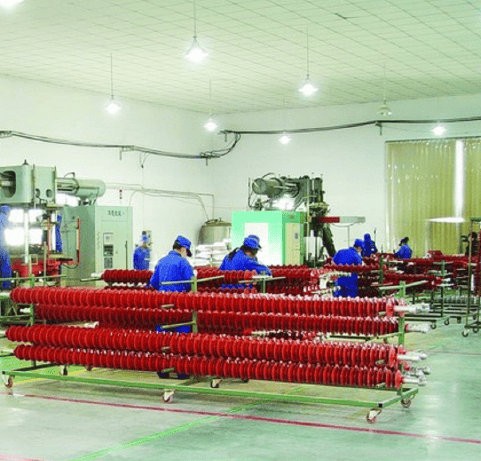

This series product are composed of silicon rubber for sheds/ housing, glass-fiber reinforced epoxy resin rod core and hop DIP galvanized metal fittings. It has good mechanical performance and electric performance compared with porcelain insulators.

We can offer OEM service according to customers' drawing and specified requirements, welcome to contact us.
