| Prod Model: |
PP-1-10KL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Jetpower |
Product Description

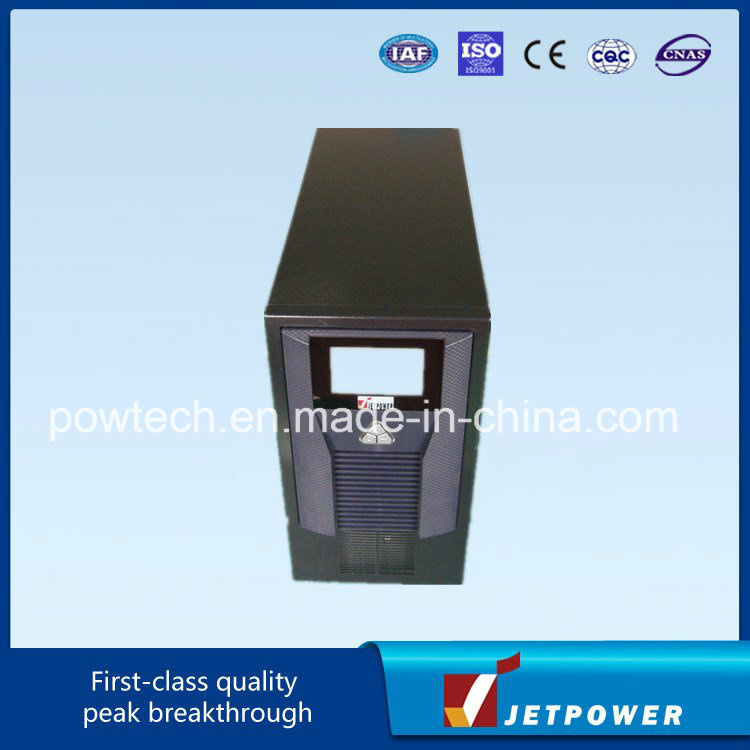

Dragon-I series use advanced true double conversion on-line topology ideal for resolving all issues on power supply. The expanded input range increases battery life by eliminating unnecessary discharge & recharge. Runtime can also be expanded with scalable external battery pack providing worry free for long blackout.
Base on the Dragon-I, Dragon-II ups are developed with new functions like: EPO, higher output power factor (up to 0.8) and etc.
Main features
True online double conversion technology with microprocessor & DSP control
Wide input voltage range
Advanced PFC technology with input power factor approaching to 1
Fully protection: lightning and surge protection, EMI/RFI filter, over voltage, short circuit, overload and etc
Enable to extend runtime with scalable external battery pack
Maintenance bypass switch for 6K~20K
RS-232 /USB communication port
Smart SNMP card slot available
N+X parallel redundancy and capacity expansion for 6K~10K
Dragon-II Particular:
Emergency Power Off (EPO):
Output power factor up to 0.8
Large blue LCD Display
Battery voltage (192V or 240V) can be selected on Users' demands.
Applications:
Servers, Data-center, Critical network devices, Sensitive electronic equipment, Telecom
Technical specifications
D-I series
Model | 1K(L) | 2K(L) | 3K(L) | 6K(L) | 10K(L) | 10KL 3-1 |
| Capacity (KW) | 0.7KW | 1.4KW | 2.1KW | 4.2KW | 7KW | 7KW |
| Input | Voltage | Single phase 230Vac; 160~300Vac at 100~70% load; 140~300Vac at 70~50% load; 120~300Vac at 0~50%load. | 176-276VAC, 1phase/3wire, | 304-478Vac,3 phase/5wire |
| Frequency | 50Hz or 60Hz +/- 4Hz |
| Power factor | | Model | 1K(L) | 2K(L) | 3K(L) | 6K(L) | 10K(L) | 10KL 3-1 | | Capacity (KW) | 0.7KW | 1.4KW | 2.1KW | 4.2KW | 7KW | 7KW | | Input | Voltage | Single phase 230Vac; 160~300Vac at 100~70% load; 140~300Vac at 70~50% load; 120~300Vac at 0~50%load. | 176-276VAC, 1phase/3wire, | 304-478Vac,3 phase/5wire | | Frequency | 50Hz or 60Hz +/- 4Hz | | Power factor | 0.95 | ≥0.98 | | Output | Waveform | True sine wave | | Voltage regulation | Single phase:220Vac+/-2%(230V or 240V re-settable via LCD panel), | | Transient response | +/-3%(100% load change) | ≤5% (50% - 100% -50%) | | Voltage distortion | True sine wave; THD<3% at 0~100 linear load | <2% THD, linear load, <6% THD, non-linear load | | Frequency regulation | 50Hz or 60Hz+/-0.2Hz (Battery mode) | | Frequency slow rate | 1 Hz/s | | Overload | 110~150% for 30sec, then transfer to bypass and auto resume; >150% for 300ms | | Crest Ratio | 3:1 | | Battery | Voltage | 36VDC | 96VDC | 240VDC | | Recharge time | 5 hrs to 90% of full capacity after full load discharge for standard version | | Efficiency | 88% | 90% | | Transfer Time | 0ms | | Indicator | Three (3) LED and One (1) LCD | | Surge Protection | RJ11 I/O port available for 10 base -T network or Fax / Modem | N/C | | Interface | RS-232(USB) | Power management software (UPSilon 2000) | | SNMP (Optional) | Power management through SNMP manager and Web browser | | Ambient | Temperature | 0ºC~40ºC ; 32ºF~104 ºF | | Related Humidity | 0-95% non-condensing | | Physicial | Dimension(DxWxH) | 400*145*200mm | 465*200*352mm | 465*200*352mm | 570*260*717mm | | Net Weight | 14.5kg (7.5kg) | 33kg(13.8kg) | 34kg(14.8kg) | 84kg(35kg) | 93kg(38kg) | 95kg(39kg) |
0.95 | ≥0.98 |
| Output | Waveform | True sine wave |
| Voltage regulation | Single phase:220Vac+/-2%(230V or 240V re-settable via LCD panel), |
| Transient response | +/-3%(100% load change) | ≤5% (50% - 100% -50%) |
| Voltage distortion | True sine wave; THD<3% at 0~100 linear load | <2% THD, linear load, <6% THD, non-linear load |
| Frequency regulation | 50Hz or 60Hz+/-0.2Hz (Battery mode) |
| Frequency slow rate | 1 Hz/s |
| Overload | 110~150% for 30sec, then transfer to bypass and auto resume; >150% for 300ms |
| Crest Ratio | 3:1 |
| Battery | Voltage | 36VDC | 96VDC | 240VDC |
| Recharge time | 5 hours to 90% of full capacity after full load discharge for standard version |
| Efficiency | 88% | 90% |
| Transfer Time | 0ms |
| Indicator | Three (3) LED and One (1) LCD |
| Surge Protection | RJ11 I/O port available for 10 base -T network or Fax / Modem | N/C |
| Interface | RS-232(USB) | Power management software (UPSilon 2000) |
| SNMP (Optional) | Power management through SNMP manager and Web browser |
| Ambient | Temperature | 0ºC~40ºC ; 32ºF~104 ºF |
| Related Humidity | 0-95% non-condensing |
| Physicial | Dimension(DxWxH) | 400*145*200mm | 465*200*352mm | 465*200*352mm | 570*260*717mm |
| Net Weight | 14.5kg (7.5kg) | 33kg(13.8kg) | 34kg(14.8kg) | 84kg(35kg) | 93kg(38kg) | 95kg(39kg) |
