1kVA 48V DC in / 110V or 220V out DC/AC Telecom Inverter
| Price: |
US $ 140-450/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TI-1000 |
| DC Input: |
-48VDC |
| DC Input Range: |
-40~-58VDC |
| AC Output: |
115/220VAC, 1phase |
| Output Wave Form: |
True Sine Wave |
| Capacity: |
1kVA/700W |
| Height: |
2u |
| Power Source: |
Electric Power |
| Application: |
Telecom |
| Physical: |
450*430*90mm/15kg |
Product Description
1kVA 48V DC in / 110V or 220V Out DC/AC Telecom Inverter

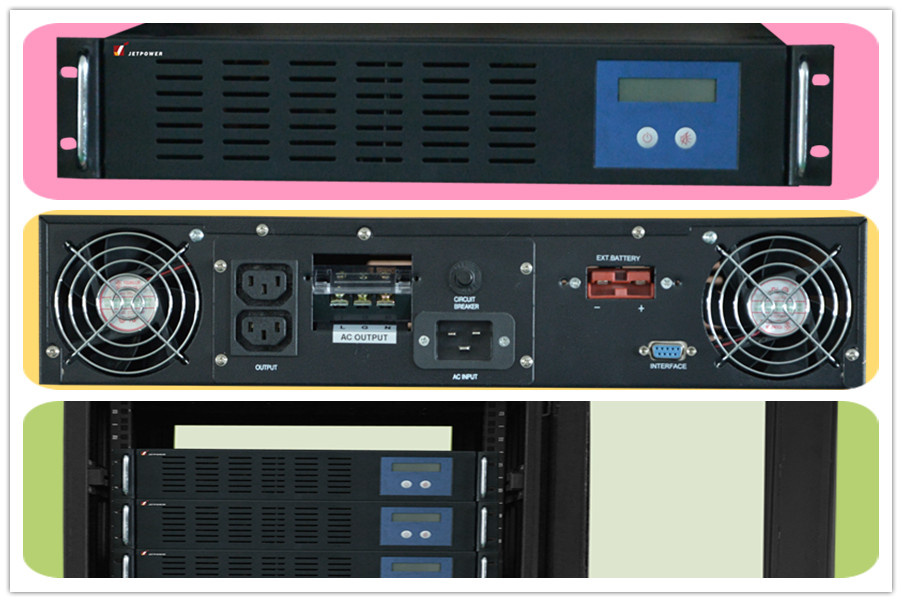

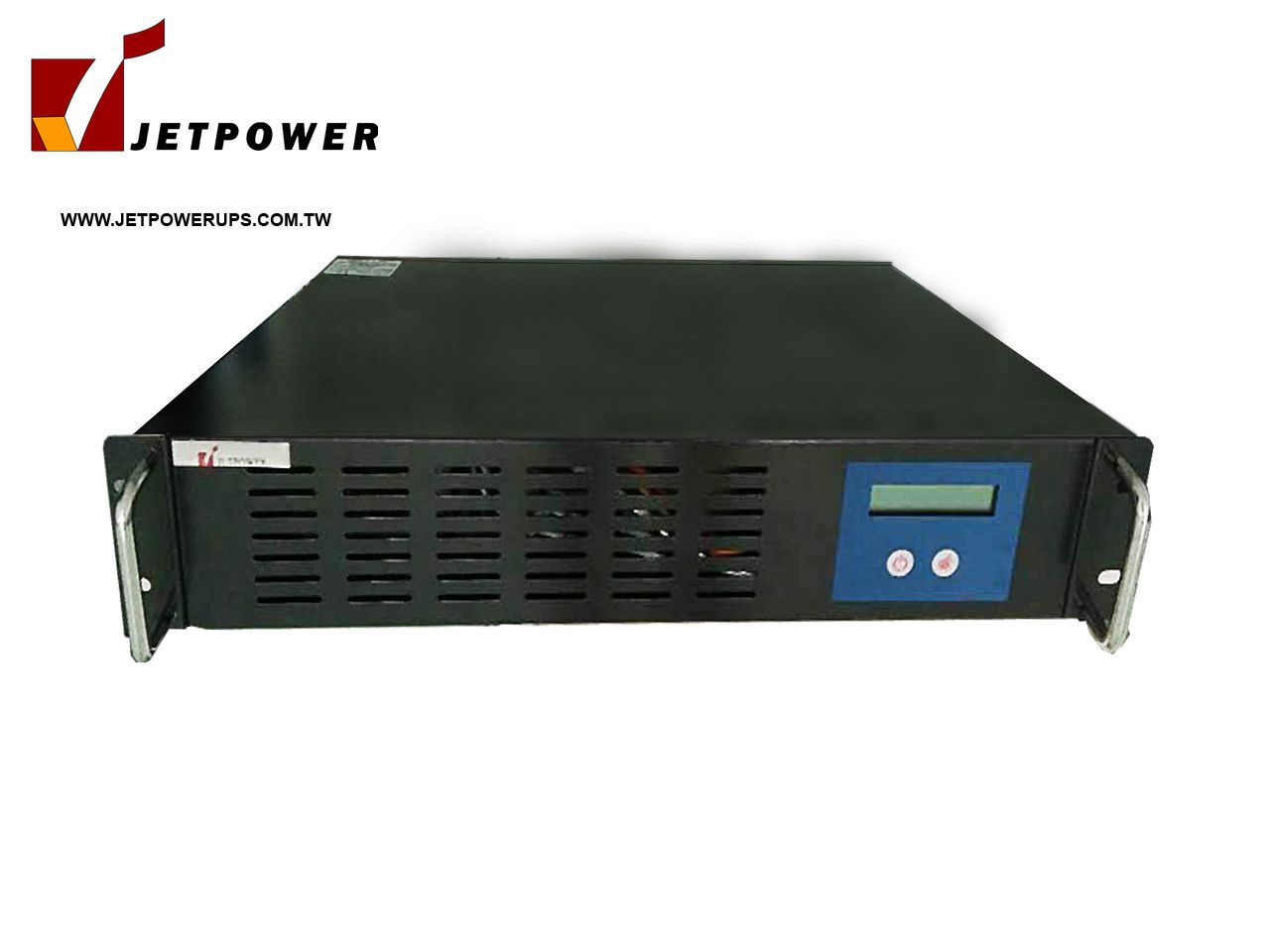

Snapshots:
Model: TI-1000
Capacity: 1KVA/700W
DC Input Vol: -48V
AC Input Vol:115/230VAC (Optional)
AC output: 115/220VAC
48VDC inverter Features:
(1) Pure sine wave output
(2) High efficiency conversion
(3) Primary DC input and secondary AC input available
(4) Tower or rack-mount convertible
(5) 2U height design
(6) High power, Low profile
(7) Advanced Microprocessor control
(8) Design Provides High Reliability and Efficiency
(9) Over load protection and alarm
(10) Low audible noise: < 55 dB
(11) EMI meet VDE0871 Class A
(12) RS 232 communication
(13) MTBR<1hrs
(14) Dry Contact alarm interface
(15) Fax/ Modem surge Suppression ports
(16) RJ45 Network surge suppression portsProduct images
Specifications for TI Series Inverter (1-8K)| True Sine Wave Output | | | | | | |
| Model | TI-1000 | TI-2000 | TI-3000 | TI-5000 | TI-7000 | TI-8000 |
| Structure | Low Frequency SPWM |
| Capacity | 1kVA / 0.7kW | 2kVA / 1.4kW | 3kVA / 2.1kW | 5kVA /3.5kW | 7kVA /5kW | 8kVA /6kW |
| DC Input |
| Normal voltage | -48Vdc |
| Voltage range | -40~-57Vdc |
| Wide band noise current | <10% |
| Psophometric noise current | <2‰ |
| AC Bypass Input (Optional) |
| Normal voltage | 115V/230Vac | 230Vac |
| Voltage range | 80~135Vac | 160~270Vac |
| 160~270Vac |
| Frequency range | 50/60Hz±5% |
| Output |
| Normal voltage | 115V/230Vac | 230Vac |
| Voltage Stability | ±2%(Typical) |
| Frequency stability | |
| Wave style | Sine Wave |
| Overload Capacity | 110~150% for 20sec ; >150% Protect at once |
| Indicators |
| LCD Front panel | Battery capacity;Output voltage ;Load size . |
| Audible Alarms | Battery low, overload, abnormity |
| Communications |
| Intelligent Interface | RS232 and contact closure signal or RS485 |
| Compatible O/S | Windows XP/NT,Linux,Novell,Unix,SNMP,HTTP |
| Safety | Meet UL 1012,EN 60950,EN 50091-1-1 |
| EMI | Meet FCC Part 15,Class A |
| EN 55022,Class A/EN 50091-2,Class A |
| EMC | IEC 801-1,2,3,4,5/EN 61000-4-1,2,3,4,5 |
| Environment |
| Ambient Operation | 3000 Meters Max,0~40ºC,0~95% Humidity ( Non-Condensing ) |
| Audible noise (1 meter from surface ) | <45dB | <60dB |
| Physical |
| Size (D×W×H )mm | 450×430×90 | 450×430×132 | 550*430*132 |
| Net Weight | 15kg | 20kg | 24kg | 26kg | 45kg | 45kg |
