2000W Home Inverter with Charger/ Power Inverter

2000W Home Inverter with Charger/ Power Inverter
Price: US $ 100-500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: HI-P2024
Input Voltage: (185~265VAC)±5VAC
Output Voltage: 185~265±5VAC (AC Mode), 230VAC (DC Mode)
Output Wave Form: True Sine Wave
Phase: Single
Battery Voltage: 24VDC
Internal Charger: 45A
Application: All Appliances in The Office, Home&Industry
Physical: 526*277*212mm/28kg

Product Description

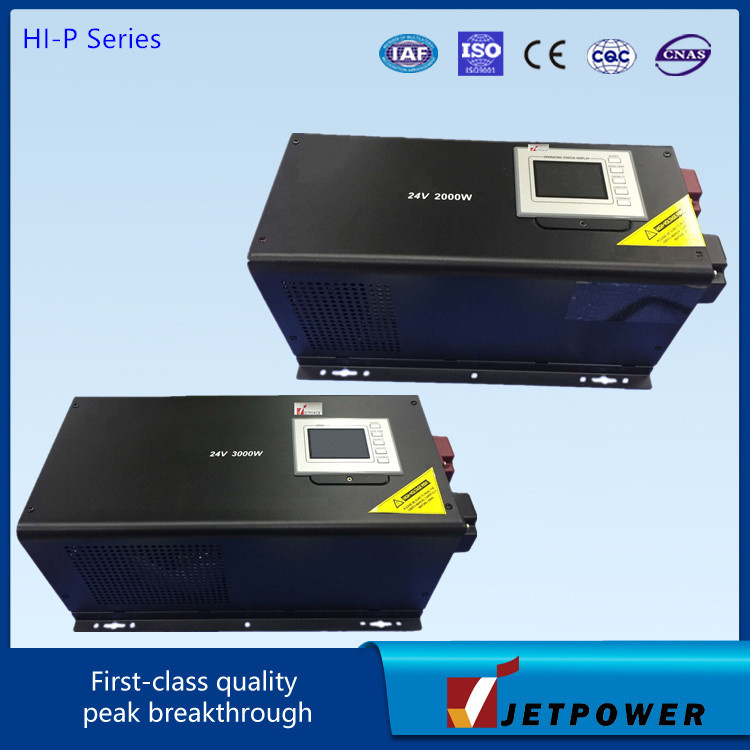

HI-Plus Series Home Inverter with charger (1KVA~6KVA)
Capacity: 1~6KVA, 220Vac, 1phase in/1phase out

Snapshots:
Model: HI-P2024
Capacity: 2000W
Batt Vol: 24V
Charger: 45A
Application:
HI series is powerful all-in-one inverters which delivers unsurpassed clean true sine wave output power for all appliances in the office, home and industry. From a cell phone charger to a circular saw including work TV, lights, drills, vacuum, printer, fax machines, soldering irons and other industrial machine.

Main Features:
1. DSP control; Fast transfer time
2. Intelligent battery management
3. Disassembled LCD box which can make the operation in a distance of 15 meters
4.Optinal charging current for different capacity of batteries
5. Low current of 800mA for no load

ModelHI-P1012HI-P2024HI-P3024HI-P4048HI-P6048
Capacity1000W2000W3000W4000W6000W
Input
Input Voltage range(185~265Vac)±5Vac
Output
Output Voltage range185~265±5Vac (AC mode) ,   230Vac (DC mode)
Output frequency          (DC mode)50Hz (48~54Hz) or 60Hz(58~64Hz), same as AC(AC mode)
50Hz ±0.3Hz (DC mode)
Wave FormSine wave (DC Mode)
Transfer Time10ms. (Typical)
Battery
Norminal DC Input  Voltage12Vdc24Vdc48Vdc
Rated Charging Current35A45A50A
Min. DC start voltage10V/20V / 40V
Protection
Overload(100%(120%(140%
Short CircuitBeeping every second
BreakerInput 15A; Output 10AInput 30A;  Output 15AInput 35A;  Output 20AInput 40A;  Output 30A
Function
1DSP control; Fast transfer time
2Intelligent battery management
3Disassembled LCD box which can make the operation in a distance of 15 meters
4Optinal charging current for different capacity of batteries
5Low current of 800mA for no load
Physical
Unit Dimension 526*277*212mm702*277*212mm
Master Box Dimension 620*350*370mm810*350*370mm
Pcs in one master carton1
Gross Weight (1pc, kg)2833354247
Net Weight (1pc, kg)22.827.632.438.244.5
NOTE: Product specifications are subject to change without further notice.
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.

The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.

As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.

Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.

Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
