| Prod Model: |
PW10KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
500W-8000W |
| Wave Form: |
Pure Sine Wave |
| Frequency: |
50Hz, 60Hz |
| Output AC Voltage: |
110V, 120V, 220V, 230V |
| Input DC Voltage: |
12V, 24V, 48V DC |
| Power Factor: |
0.9~1.0 |
| Peak Power: |
3times of Rating Power |
| Short Circuit Protection: |
Yes, Shutdown After 10ms |
| AC Mode Efficiency: |
96% |
| AC Input Range: |
174-263V |
Product Description
10KW pure sine wave inverter
Solar inverter with 50AMP built in AC charger.
UPS function
Voltage 220/230/240VAC 50Hz or 60Hz adjustable via LCD
Capacity available f8KW,10KW and 12KW
Peak Power: 3 times as rated Power
Optional remote control, Bypass, and Auto-reconnection
This inverter is widely applied in wind Generator, Solar battery pack set, house, vehicle, ship, navigation and places where lack of main power, mobile electricity work also telecommunications device, launch Station, Emengency EPS and so on.
LW Series Pure Sine Wave Inverter takes low frequency converter Device, with built in Isolation transformer. Zero Voltage(ZV) and soft switch technic, high capability Motorola MCU, digital and dummy combined technics which Complete the voltage increase in one time and SPWM wave modemed Advanced circuit, high efficiency and compact size, small weight And super stability
It has no repellency for the load, which can work well with Inductive load such as fluorescent lamp, electromotor, microwave ovens, Induction cooker, refrigerator, air conditions and transformer.
With protection fonction like, DC input protect When pole wrong, AC input protection against over and low voltage, Output protection against over load, shor circuit Protection, DC input and AC output completely electric insulation.
Installation:
Digital LCD display

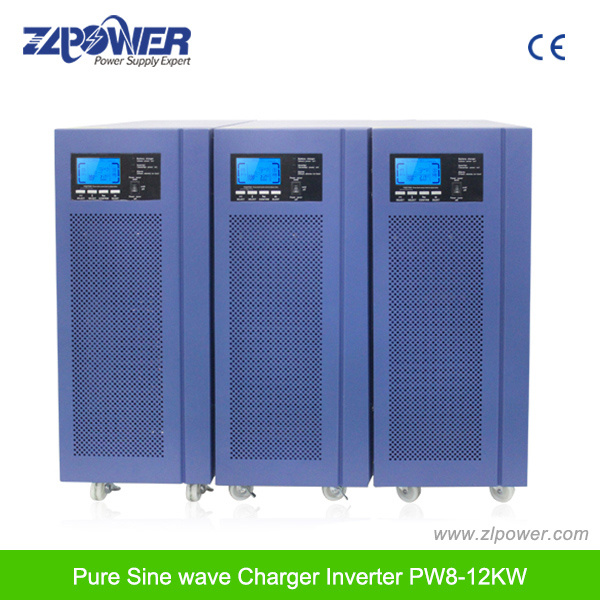

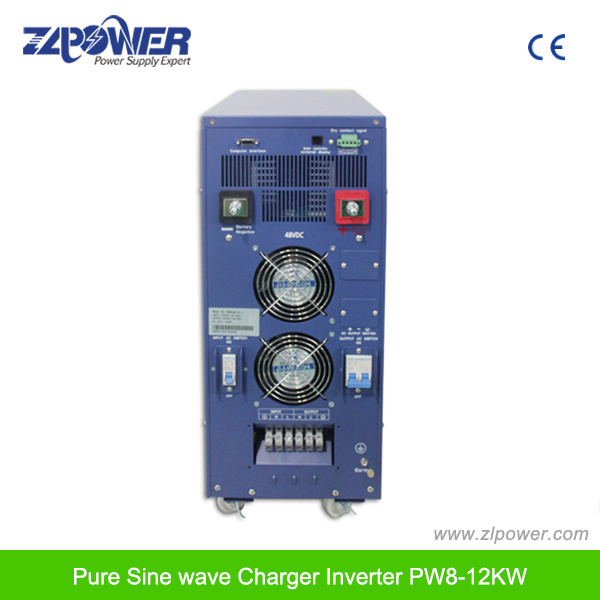

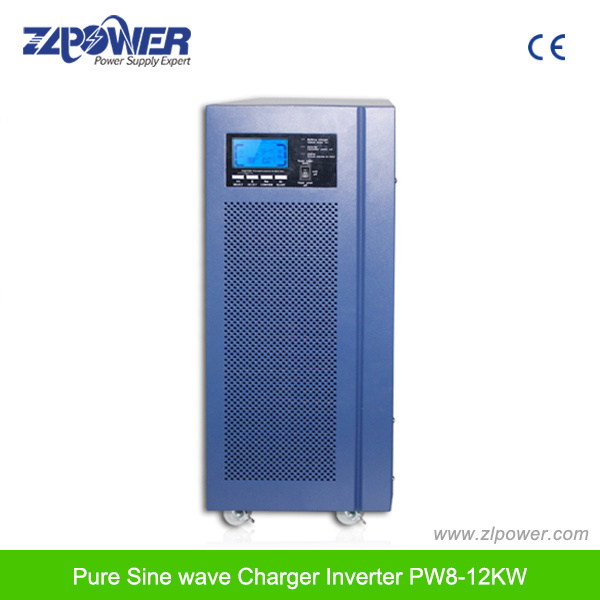

Photos:
Specification:
MODEL
(PW Series) | PW Model |
| PW8-12KW |
Line Mode Specifications: |
Input Voltage | Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Line Disconnect | 184Vac±4% |
| Low Line Re-connect | 194Vac ±4% |
| High Line Disconnect | 263Vac±4% |
| High Line Re-connect | 253Vac±4% |
| Max AC Input Voltage | 270Vrms |
| Input Frequency | Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) |
| Low Line Frequency Re-connect | 51+0.3Hz for 60Hz;
41+0.3Hz for 50Hz; |
| Low Line Frequency Disconnect | 50+0.3Hz for 60Hz;
40+0.3Hz for 50Hz; |
| High Line Frequency Re-connect | 64+0.3Hz for 60Hz;
54+0.3Hz for 50Hz; |
| High Line Frequency Disconnect | 65+0.3Hz for 60Hz;
55+0.3Hz for 50Hz; |
main functions
| Output Voltage Waveform | As same as Input Waveform |
| Over-Load Protection (SMPS load) | Fuse |
| Output Short Circuit Protection | Fuse |
| Transfer Switch Rating | 63A/80A/100A |
| Max Bypass Overload Current | 100A |
Battery Invert Mode Specifications: |
output | Output Voltage Waveform | Sine wave |
| Rated Output Power (KW) | 8kw/10kw/12kw |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | 230Vac ±10% rms |
| Nominal Output Frequency (Hz) | 60Hz ± 0.3Hz
50Hz ± 0.3Hz |
| DC Voltage | Nominal DC Input Voltage | 48V/72V |
| DC Voltage range | 40-62Vdc for 48VDC/ 70-93Vdc for 72VDC |
| Low Battery Alarm | 42.0Vdc ± 1.2Vdc for 48V battery
63.0Vdc ± 1.8Vdc for 72V battery |
| Low DC input Shut-down | 40.0Vdc ± 1.2Vdc for 48V battery
60.0vdc± 1.8Vdc for 72V battery |
| High DC input Alarm & Fault | 64Vdc ± 1.2Vdc for 48V battery
96Vdc ± 1.8Vdc for 72V battery |
| High DC input Recovery | 62.0Vdc ± 1.2Vdc for 48V battery
93.0Vdc ± 1.8Vdc for 72V battery |
| Charger | Nominal Charge Current | 35A/50A(5 stages adjustable charging current) |
| Charge Current Regulation | ± 5Adc |
| Over Charge Protection | Bat. V ≥62Vdc / 93Vdc, beeps 0.5s every 1s & fault after 60s |
| Algorithm | Three stage: Boost CC (constant current stage) → Boost CV (constant voltage stage) → Float (constant voltage stage) |
| Efficiency | Efficiency (Battery Mode) | ≥85% |
| Efficiency (Line Mode) | >98% |
| Transfer Time | Ac to Dc | 20ms (Max) |
| Dc to Ac | 15ms (Max) |
| System parameter | Over-Load Protection | 110% 150%, beeps 0.5s every 1s, and Fault after 20s. |
| Output Short Circuit Protection | Current limit (Fault after 10s) |
| Surge rating (10s) | 1:3 (VA) |
| Power saver | Load <=25W (Enabled on "P/S auto" setting of Remote control) |
| Protections | Low battery, over charging, over load , over temp. |
| Indicators | LED+LCD Display |
| General Specifications | Operating Temperature Range | 0°C to 40°C |
| Storage temperature | -15ºC ~60ºC |
| Operation humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Dimension(L*W*H) | 538*255*630mm |
| Net weight(Kg) | 8KW | 10KW | 12KW |
| 60kg | 65.5kg | 71kg |
