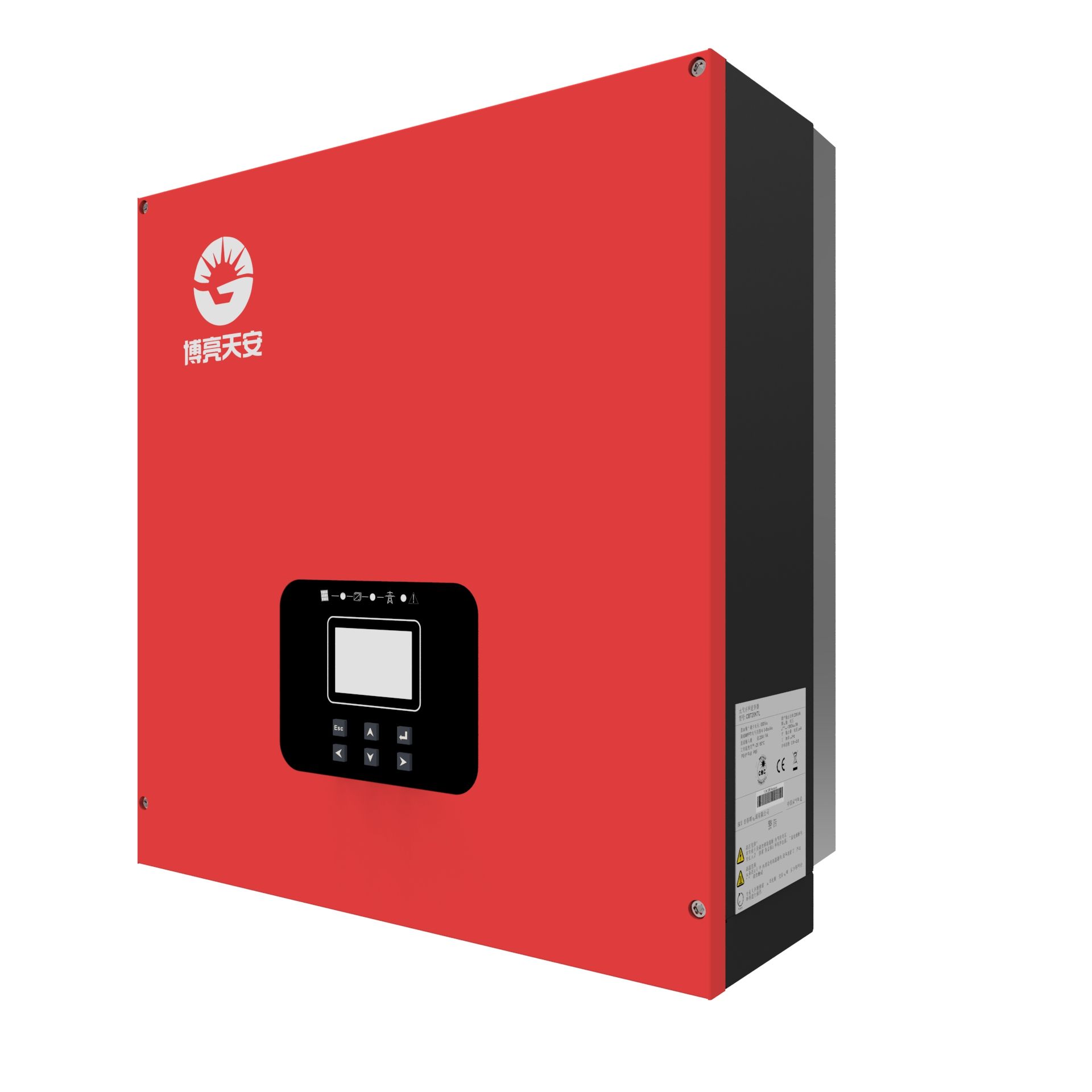

10kwp Pure Sine Wave Triphase on Grid Solar Inverter Cbt10ktl

10kwp Pure Sine Wave Triphase on Grid Solar Inverter Cbt10ktl
Price: US $ 956-1200/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: CBT10kTL

Product Description



*Features:
a.The most optimal transformer topology
b. High conversion efficiency
c.Double/Single way MPPT input,and a wider voltage range
d.More reasonable structure design
e.More simple localization Settings
*Flexibility:
a.Protection grade IP65, adapt to the outdoor all kinds of bad weather
b.Simple and easy installation, maintenance free
c.RS485/WIFI(optional)
d.Multi-language display
*Reliability:
a.Safety and stable automatical protection including overvoltage,low voltage,anti-islanding,short circuit,over-load protection.
b.Five years standard waranty time,and the longest would reach 20years.
*Certificates:
CQC,VDE-AR-N4105,VDE126-1-1,AS4777,IEC61727,IEC62116
 Specification
DC inputAC outputEfficiencyGeneral data
Maximum DC Power11400W
Maximum DC Voltage:1000V DC
MPPT voltage range:200V DC
Full load MPPT voltage range:320-800V DC
Maximum input circuit:13A*2
MPPT tracking no.:2/2
AC rated power:10KW
Maximum apparent power communication:10KVA
Maximum output circuit:15A
AC rated voltage:3/N/PE230V/400V AC
AC frequency:50HZ/60HZ
Power factor, can be adjusted:0.8 advance-0.8 lag
Harmonic distortion:<3%
Maximum efficiency:98.2%
European efficiency:98.1%
MPPT efficiency:99.9%

Size(Width/Height/Depth):360/475/215mm
Weight:20kgs
Working temperature:-25 ºC-+60 ºC
Protection grade:IP65
The cooling way:Natural
Internal friction at night:<1W
Topology:No transformer
Display:LCD
Humidity:0-95%,non-condensing
Communication interface:RS485/WIFI(optional)
Bright & Universal Technology Co., Ltd founded in 1999, Located in Baoding, a cultural ancient city where is called "China electricity Valley". Is a collection of solar energy intelligent power and LED lighting products research and development, production, sales and integration services for the integration of high-tech Enterprises. Relying on the company high-level, high-quality technical team, with the technology of continuous innovation and product quality control, is committed to expanding application of photovoltaic industry and the solar energy research and development of intelligent control system; Has passed ISO9001 quality management system, ISO14001 environmental management system and GB/T28001 occupational health management system; And get a patent issued by the state intellectual property office of the solar energy power supply system.

Company has Beijing R & D Center, Shenzhen Bo Liang Tian An Development Co., Ltd, Bo Liang Hebei International Trade Co., Ltd three branches. It insists on the "pursuit customer biggest satisfaction " corporate values, high quality products and services. Based on domestic market, explore the international markets. Our Products are sold throughout the country more than 20 provinces and regions and exported to Europe, south America, Africa and southeast Asia. Well received by customers and consumers. We insist on quality first, price reasonable business policy. Are willing to work with new and old customers with common development around the world...Mutually beneficial win-win situation with global energy saving and green lighting the cause of common progress.
