11 Key DC 5-24V Remote Control

Name: 11 Key DC 5-24V Remote Control
Brand: all-electronics-online.com
SKU: 808506895
Availability: InStock
Rating: 4.7 (116 reviews)

Price:	US $ 2.5-2.55/Piece
Min Order:	5/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-RFMINI-01
Static Power Consumption:	<1W
Connection Mode:	Common Anode
Output:	1 Circuit
Output Current:	<6A(Each Circuit)
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	Button Battery
Voltage:	DC5-24V

Product Description

Basic Info

Place of origin:	Shenzhen,China
output:	1 CMOS Open drain Output
output current:	<6A(each circuit)
Output Power:	5V:<30W, 12V:<72W, 24V:<144W
Connection mode:	Common anode
Static power consumption :	<1w
Supply Voltage:	DC5~24V
Brand name:	louita

Product Description

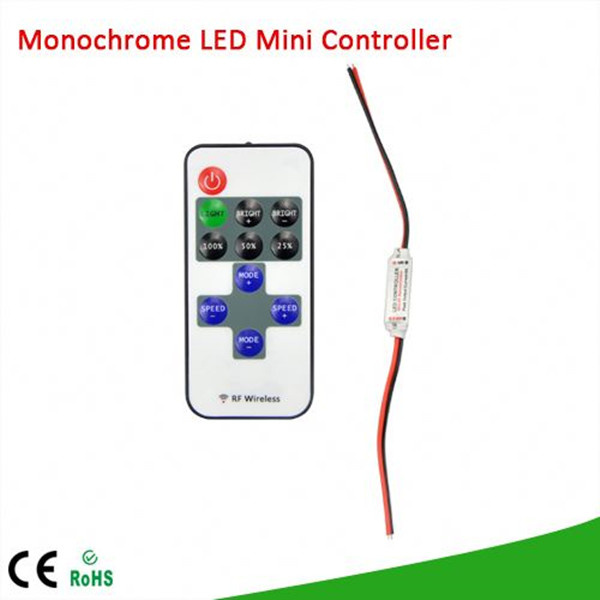

This RF Mini Single color controller adopted the advanced computer control chip. Controlled by 433Mhz wireless remote.Its mainly used to controlled all kinds of led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with low cost,easy connection,simple manipulation and others advantages.User can adjust the lights brightness according to their actual requirement.This controller is with 8 kinds of monochrome dynamic model,including flash blasting, breathing, getting brighter and darker , strobe, flicker and other models.With wide range of speed level( total have 10 level of speed). At the same time, this controller have the characteristics of small volume, easy to carry,etc, its popular amount the many markets.

Technical Parameters:
Working temperature:-20-60ºC
Input voltage:DC5-24V
Output:1 circuit
Connection mode:Common anode
controller size:L40.0×W12.0×H5mm
Remote size:L85×W40×H6mm
Net weight:35g
Gross weight:40 g
Static power consumption:<0.5W
Output current:<6A(each circuit)
Output power: 5V:<30W, 12V:<72W

1. Please install the products by Authorized Electrician.
2. It is NOT a waterproof product, please keep it away water.
3. Well heat dissipation will extend the product life time. Proper ventilation for the LED Driver is recommend.
4. Please do NOT operate the product while lightening. do NOT install it in intense magnetic field or near the High Voltage Source.
5. Before using, Please make sure the Controller output Voltage meet the LED Requirement.
6. For safety, be sure that the operating current does NOT overload the wire capability.
7. Before power on, make sure the ports are connected properly, Wrong connection will damage the products
