1100va Line Interactive UPS Power Supply (Panda Series)
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
S-RT 1100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wave Form: |
Step Sine Wave |
| Size: |
19inch |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Brand: |
Jetpower |
Product Description

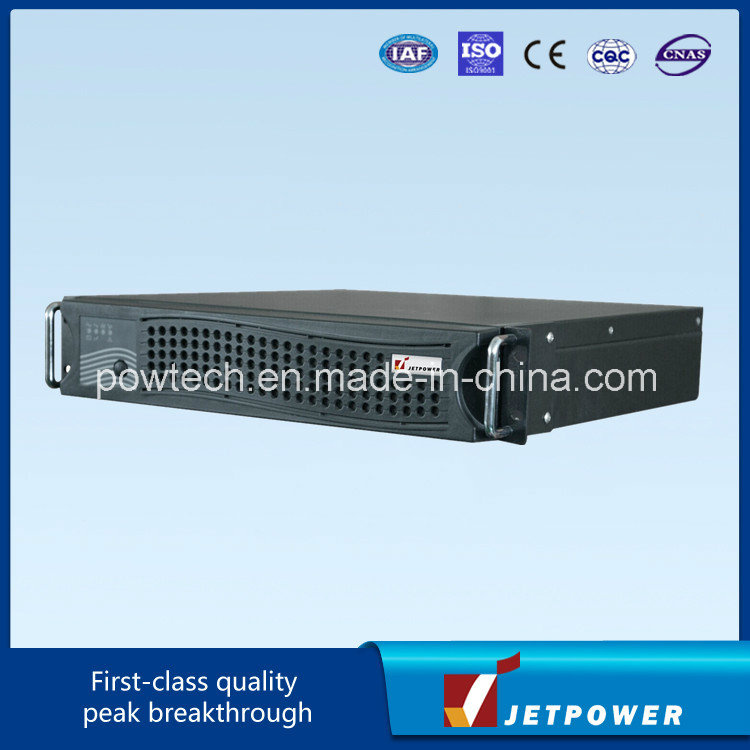

Panda Series Tower / Rack Convertible Line Interactive UPS
1. Line-interactive design
2. DC cold startup function
3. Boost and trim automatic voltage regulation(AVR)
Gives higher application availability for correcting low and high voltage conditions without using battery
4. Generator compatible
5. Dataline surge protection
Provides protection of connected equipment from power surges on the datalines
6. LED status indicators
Enables quick understanding and response to visual indicators showing UPS status
7. Safety agency approved
Ensure the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. CE approval and FCC class B.
8. USB/RS-232 connectivity
Provides management of the UPS via USB or RS-232
9. Rack/Tower adaptability
|
Model |
1100VA |
1500VA |
2000VA |
|
Capacity (W) |
715W |
975W |
1300W |
|
Input |
Nominal voltage |
115/230VAC |
|
Voltage range |
+/-25% |
|
Frequency |
50/60Hz +/- 6Hz (automatic sense) |
|
Output |
Nominal voltage |
115/230VAC |
|
Voltage regulation |
+10% ~ -13% (AC mode); +/-8% (battery mode) |
|
Frequency regulation |
50/60HZ ±0.5% |
|
Overload |
105 +/-10% alarm; 140+/-10% for 2mintues then UPS shutdown (AC mode);
105 +/-10% for 20seconds then UPS shutdown; 140+/-10% UPS immediately shutdown (Battery mode); |
|
Waveform |
Step sine wave |
|
Transfer Time(ms) |
≤10ms |
|
Battery |
Type |
VRLA |
|
Voltage |
24Vdc |
|
Backup time |
10~25 minutes (depends on load) |
|
Recharge time |
6hrs recharge to 90% |
|
Data line surge suppression |
1482 Joules (115V type); 476 Joules (230V type) |
|
TEL/FAX surge suppression |
Joules |
114 Joules |
|
Type |
RJ11 (one pair), 2C |
|
Networking Surge |
Performance |
Up to 100Base-T |
|
Type |
RJ45 (one pair), 2C |
|
Status LEDs |
Line Normal, Battery Backup, Boost, Buck, Battery Replacement, Fault, Overload, Load capacity/Battery capacity |
|
Audible alarm |
Battery backup, battery backup over 30minutes, battery low, overload, fault |
|
Communication Interface |
USB, RS-232 |
|
Ambient |
Temperature |
0 ~ 40ºC |
|
Humidity |
10~95%, no condensation |
|
Altitude |
3000m |
|
Safety & EMC |
CE, TUV, FCC |
|
Physical |
SIZE(W×D×H, mm) |
415 * 430 * 89 |
|
Weight (kg) (w batt.) |
20.4kg |
26kg |
30kg |
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
