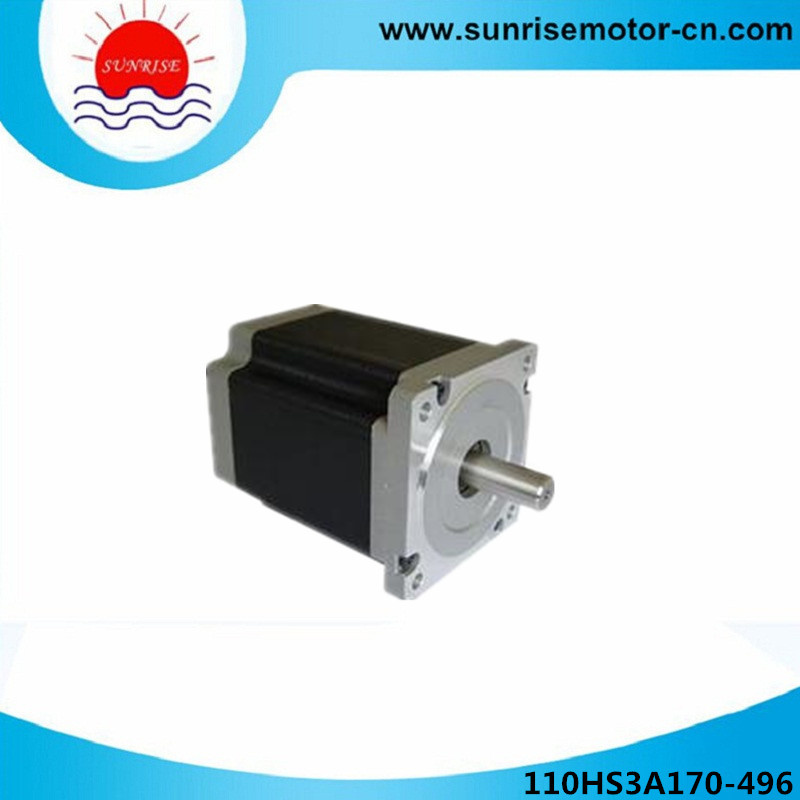

110hs3a170-496 17nm 4.9A NEMA42 1.8deg. 3phase Stepper Motor for CNC Machine

Name: 110hs3a170-496 17nm 4.9A NEMA42 1.8deg. 3phase Stepper Motor for CNC Machine
Brand: all-electronics-online.com
SKU: 726074985
Availability: InStock
Rating: 5 (54 reviews)

Price:	US $ 91.94-95.16/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	110HS3A170-496
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	110hs3a170-496
Holding Torque:	17n.M
Current:	4.9A
Resistance:	2ohms
Inductance:	20mh
Length:	170mm
Weight:	10kg
Wire:	6
Type:	Electromechanical
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Number Of Poles:	3phase
Brand:	Sunrise Motor
Certification:	SGS

Product Description

3-Phase Hybrid Stepping motor

1.8° NEMA42
Model: 110HS3A170-496
Holding torque: 17N. M
Current: 4.9A
Resistance: 2ohms
Inductance: 20mH
Length: 170mm
Weight: 10kg
Wire: 6

Motor are available with diffent winding and mechancial modification to meet specific applications.

Motor can add gearbox .

Motor specifications:

Model	Holding Torque (N@ m± 10%)	Current /Phase (A)	Resistance /Phase (ohms± 10%)	Inductance /Phase (mH± 20%)	Rated Torque (N@ m)	Rotor Inertia (Kg-cm2)	Length (mm)	Weight (Kg)
110HS3A120-356	9	3.5	3.65	19.2	8	8.5	120	6.5
110HS3A140-426	13.5	4.2	3.2	22	12	10.5	140	8
110HS3A170-496	17	4.9	2.0	20	15	14	170	10

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
