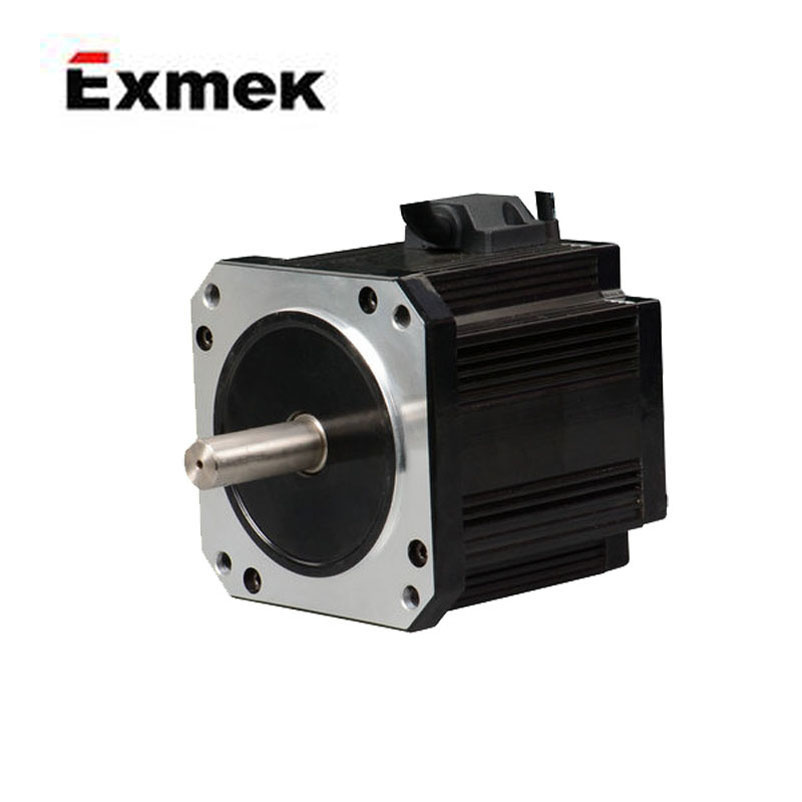

110mm DC Brushless Motor with 310V 1267W (ME110AS200-10)

Name: 110mm DC Brushless Motor with 310V 1267W (ME110AS200-10)
Brand: all-electronics-online.com
SKU: 832111925
Availability: InStock
Rating: 4.7 (33 reviews)

Price:	US $ 112.7/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ME110AS200-10
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	Ce
Brand:	Exmek

Product Description

General information

8 poles with three phase
18 slots design for low cogging
Encoder available
Insulation class B, higher insulation class on request
Sintered Neo Magnet
IP 65 class available

Specifications

Specification	ME110AS200
Supply voltage(reference)	310V DC
Rated continuous torque	4.04Nm
Rated speed at cont torque	3000rpm
Rated continuous stall current	6.15A
Rated continuous output power	1267W
Rated peak torque	12.38Nm
Rated peak current	18.41A
Torque constant	0.7059Nm/A
Ke (voltage constant)	73.88V/krpm
Terminal resistance	1.3Ω
Inductance	5mH
Insulation class	B
Rotor inertia	5.40E-04kg.m²
Weight	4.5kg
Length	152mm

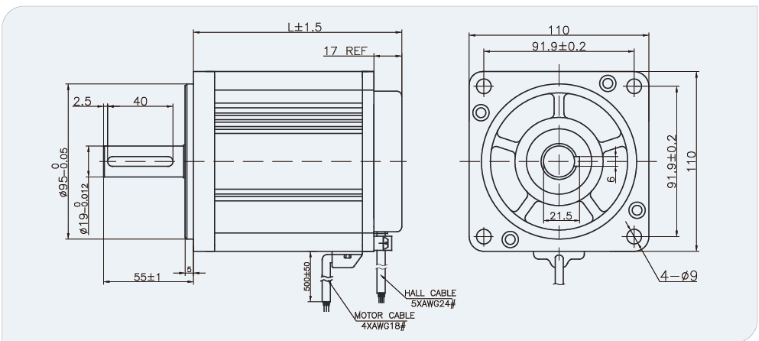

Mechanical

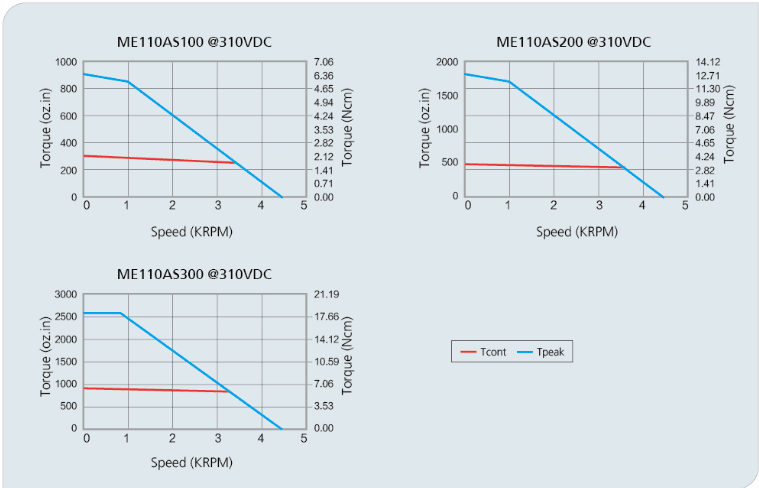

Characteristic diagram

Special shaft and other mechanical characteristic optional.

Exmek Electric

Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.

This include:

DC Brush Motor

DC Brushless Motor

Stepping Motor

Linear Motor

Gear Motor

And also Motor Components, assembly, & More...

Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.

Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
