110mm Length, Omni Directional GSM 3G Rubber Antenna, Foldable SMA Antenna, Elbow GPRS 3G GSM Antenna,

Name: 110mm Length, Omni Directional GSM 3G Rubber Antenna, Foldable SMA Antenna, Elbow GPRS 3G GSM Antenna,
Brand: all-electronics-online.com
SKU: 730344692
Availability: InStock
Rating: 5 (101 reviews)

Price:	US $ 2.1-2.5/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WK-3G010-SMA/MS
Connector:	SMA Male Straight
Usage:	Broadcasting Antenna
Operating Wavelength:	Microwave
Directionality:	Omnidirectional Antenna
VSWR:	<1.5

Product Description

3G/4G/LTE Antenna Specifications:

Part Number: WK-3G010-SMA/MS
3G antenna Specification
Frequency Range	850/900/1800/1900/2170MHz
V.S.W.R	1.5:1
Band Width	±90/280 MHz
Gain	3.5dBi
Polarization	Vertical
Radiation	Omni directional
Max Input power(W)	50
Impedance	50 ohm
Max wind speed	200km/h

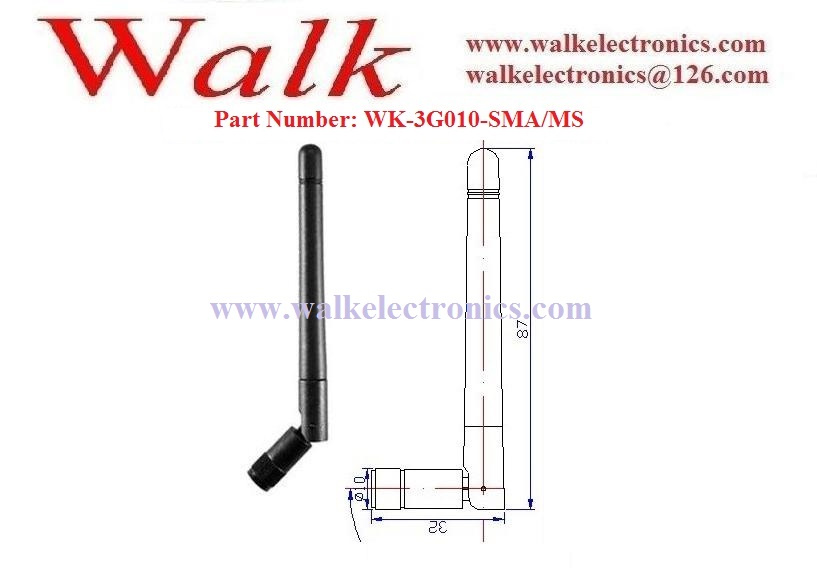

Mechanical Specifications
Size	110mm high
Weight	<100g

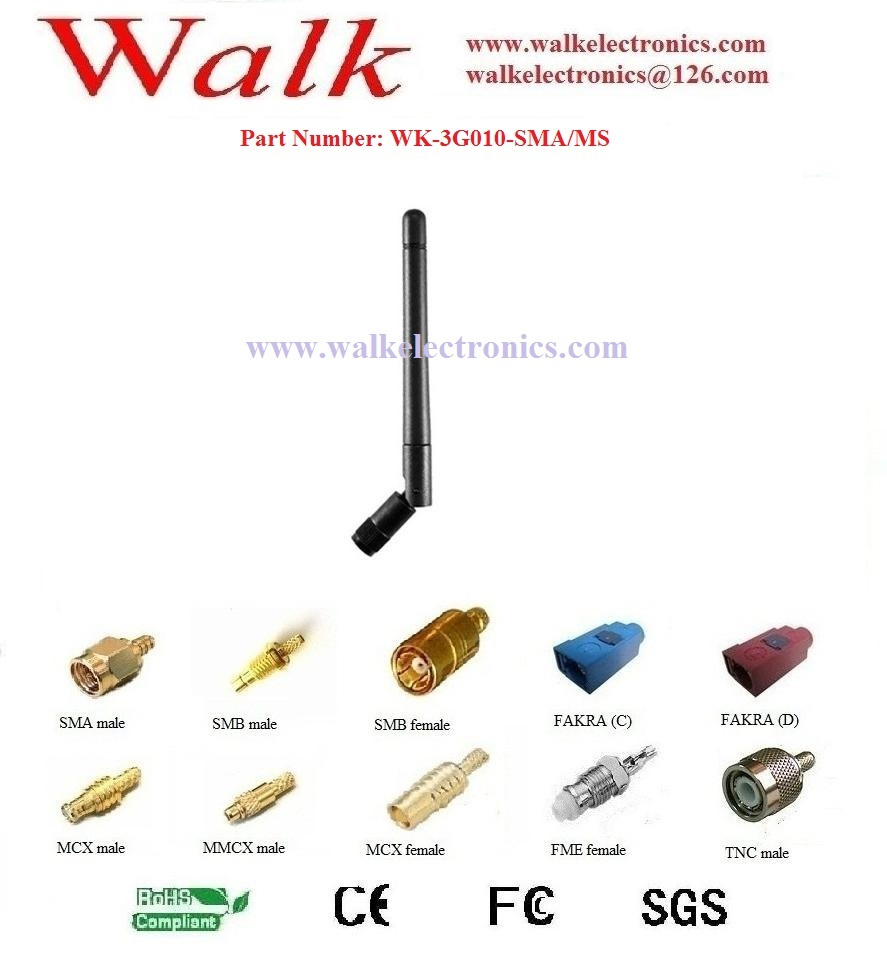

Connector	SMA male straight, FME, TNC or others
Housing	Black ABS
Environmental Specification
Working Temp	-40ºC~+85ºC
Vibration	Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity	95%~100%RH
MTBF=1×10-6/pc.hr	40ºC±5ºC, 2000pcs For 480h

GPS antenna, GPS glonass antenna, GSM antenna, GSM 3G antenna, 4G lte antenna, WiFi antenna, combo antenna, RF cable assembly and RF connector manufacturer.

Shenzhen Walk Electronics Co., Ltd. is specialized in designing, manufacturing and selling all kinds of antennas, RF cable assemblies, connectors, and car electronics, etc.

Main products: GPS antennas, GPS/Glonass antennas, GSM antennas, 3G GSM antenna, 4G LTE antenna, WiFi antennas, Combo antennas, RFID antennas; RF cables, RFID cables, computer cables, and automobile cables; RF connectors, PCB connectors and adapters.

Our company always supplies good quality products with proper price. Poor quality products will cost much more for both customers and us. Our company supplies customers with quick delivery. We have built happy and long term business relationships with customers and trust each other.
