110V 220V 50Hz 60Hz LCD Display High Frequency Online UPS

Name: 110V 220V 50Hz 60Hz LCD Display High Frequency Online UPS
Brand: all-electronics-online.com
SKU: 788209595
Availability: InStock
Rating: 4.5 (110 reviews)

Price:	US $ 1-200/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Queen Star Series 1K-3Kva
Voltage:	115 - 300VAC
Overload Rating:	125% Overload,1min
Transfer Time:	0
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Upsen

Product Description

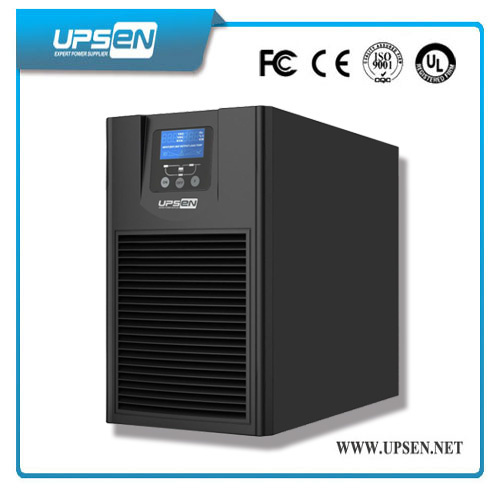

110v 220v 50hz 60hz LCD display high frequency online UPS
Model: High Frequency Online UPS Queen Star Series 1K-3Kva (1ph in/1ph out)

Key Features:
1:High reliability DSP control
2:Environment Friendly And eco-designed
3:Active input power factor correction (PFC)
4:Intelligent RS232 communication port
5:Microprocessor control guarantees high reliability
6:No-break,continuous power provides seamless transfer to back-up power, and prevents data loss.
7:Field-expandable power ratings, and optional extended battery runtimes.
8:More adaptable of environment and with long service life
9:Silence function in DC mode, keeps tile users away from the noise
10:Auto restart after utility power restore when ups shutdown due to battery low

Applications:
Aeronaoutics,Medical Systems,Electronic,Telecom,Army Technology,Securities System,Sensitive Electronic Equipment,Electrical power toys,Production Equipment,communication, bank systems etc.

Technical Specification

MODEL		Q1K	Q1KL	Q2K	Q2KL	Q3K	Q3KL
Rated capacity		1KVA/800W		2KVA/1600W		3KVA/2400W
Input	Voltage	115 - 300Vac
	Frequency	40-60Hz / 50-70Hz
	Power factor	0.99
Output	Voltage	220/230Vac(1±2%)
	Frequency	Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode)
	On-load factor	0.8
	Overload rating	125% overload,1min
Battery	Type	Valve-control lead acid maintenance-free battery
	Back up time	> 11min (half load)	External	>11min (half load)	External	>11min (half load)	External
	Rated voltage	36V		72V		96V
Transfer time		0
Operating environment		Humidity: 20%-90%, Temperature:0oC-40oC
Size (WxDxH)mm		350 x 144 x 229		424 x 190 x 328		424 x 190 x 328
Net Weight(kg)		11.5	5.7	22.2	10	26.3	10
*Specification is subject to change without further notice

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
