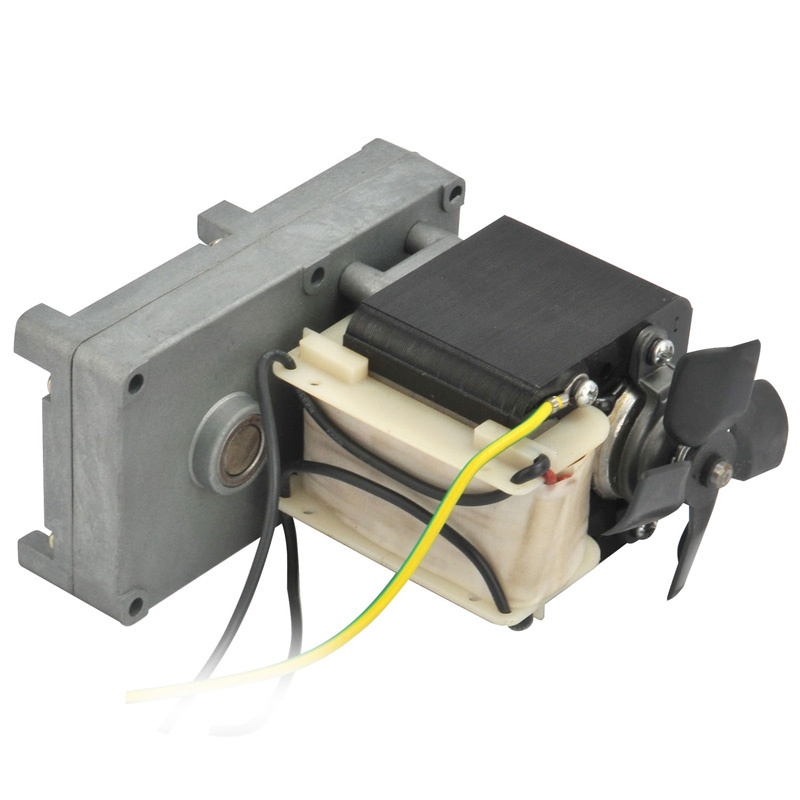

110V/220V AC Gear Motor for BBQ

Name: 110V/220V AC Gear Motor for BBQ
Brand: all-electronics-online.com
SKU: 772829195
Availability: InStock
Rating: 4.3 (65 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJ61/50L-PAG70120-722K-CW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	About 30 Days
Package:	4PCS/CTN
Net Weight:	2.2kg/PC
CTN Size:	313010
Number Of Stator:	Single-Phase
Function:	Driving
Certification:	CE, RoHS
Brand:	Longway

Product Description

1)Typical applications of this ac gear motor:
Grill,Oven,Angular telescope,Garage gate,Medical equipment,Electric advertising,office equipment,household appliance...
2)Voltage:110VAC,220VAC
3)Rotation direction:CW,CCW
4)Output power:1.0~15W
5)rated speed at 60Hz: 0.5~11.1rpm
6)Max torque:200kgf.cm
7)We can adjust motor specifications and shaft size according to your requirement.

Reduction ratio	36	66	94	139	155	196	219	277	322	392		456	555	833
Number of grea trains	3	3	3	3	3	4	4	4	4		4	5	5	5
Rated speed(rpm)at 60Hz	77.7	42.4	29.7	20.1	18.0	14.2	12.8	10.1	8.6	7.1		6.1	5.0	3.3
YJ61-10L=10.5(Kgf.com) Rated torque	1.57	2.89	4.12	5.42	6.04	7.64	8.54	10.8	11.4	13.9		16.1	19.6	29.5
YJ61-12L=12(Kgf.com) Rated torque	2.10	3.85	5.49	7.23	8.06	10.2	11.4	14.4	15.2	18.5		21.5	26.2	39.3
YJ61-14L=14.5(Kgf.com) Rated torque	2.63	4.82	6.86	9.03	10.1	12.7	14.2	18.0	19.0	23.1		26.9	32.7	49.1
YJ61-16L=16.5(Kgf.com) Rated torque	3.68	6.74	9.61	12.6	14.1	17.8	19.9	25.2	26.6	32.4		37.7	45.8	68.8
YJ61-20L=20.5(Kgf.com) Rated torque	4.73	8.67	12.4	16.3	18.1	22.9	25.6	32.4	34.2	41.6		48.4	58.9	80.0
YJ61-25L=25.5(Kgf.com) Rated torque	5.78	10.6	15.1	19.9	22.1	28.0	31.3	39.6	41.8	50.9		59.2	72.0	80.0
YJ61-30L=30.5(Kgf.com) Rated torque	7.36	13.5	19.2	25.3	28.2	35.7	39.8	50.4	53.2	64.8		80.0	80.0	80.0
YJ61-35L=35.5(Kgf.com) Rated torque	9.20	16.9	24.0	31.6	35.3	44.6	49.8	63.0	66.5	80.0		80.0	80.0	80.0
YJ61-40L=40(Kgf.com) Rated torque	10.5	19.3	27.4	36.1	40.3	50.9	56.9	72.0	76.0	80.0		80.0	80.0	80.0
YJ61-50L=50(Kgf.com) Rated torque	13.6	25.1	35.7	47.0	52.4	66.2	74.0	80.0	80.0	80.0		80.0	80.0	80.0
Packing Details	CTN size:55X35XH18CM 24pcs/CTN N.W.16Kgs
