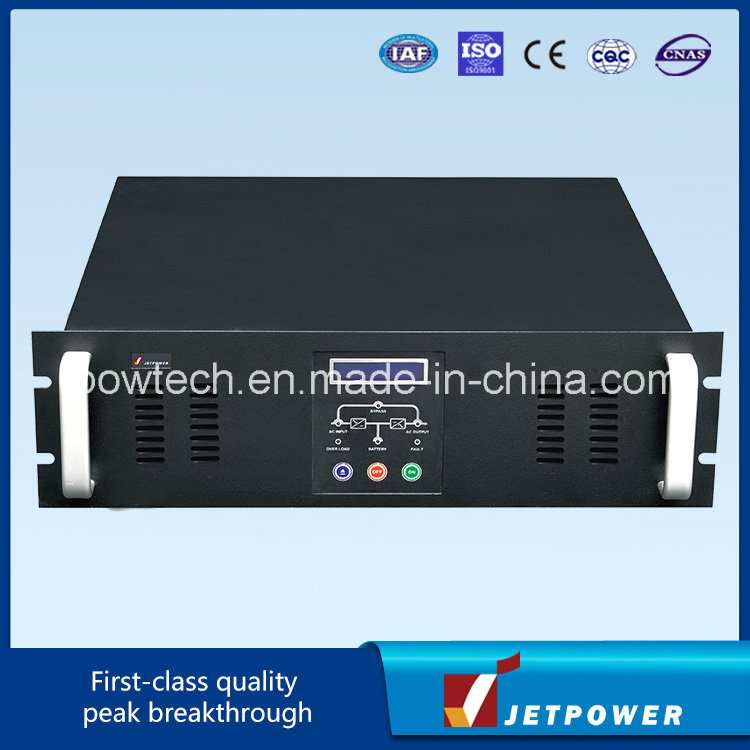

110V DC/AC 5kVA Inverter (CE, SGS)
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ND110-1050 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Install: |
Wall Mount |
| Product Name: |
110VDC Inverter |
| Power Source: |
Electric Power |
| Type: |
DC/AC Inverters |
| Phase: |
Single |
| Output Power: |
>1000W |
Product Description
110VDC/AC Inverter
1. DC Input: 110Vdc
2. AC output: 230Vac
3. Output power: 5KVA/4KW
4. LCD display
5. Pure sine wave output
Main Features:
(1) Using IGBT from Simen company as the power components
(2) Using America INTEL microprocessor,
(3) Adopt SPWM technology
(4) Full bridge circuit suitable for all kinds of loads.
(5) AC bypass transfer
(6) Perfect protection and warning functions
(7) High efficiency
(8) Large LCD display
| Model | ND 110 -1010 | ND 110 -1020 | ND110 -1030 | ND110 -1050 | ND110 -1100 | ND110 - 1200 | ND 110 -1300 | ND 110 -1500 |
| DC input | Rated DC input voltage (VDC) | 110 |
| Rated DC input current (A) | 10 | 20 | 30.4 | 50 | 98 | 198 | 276 | 494 |
| DC input voltage range (VDC) | 180~300 |
| Bypass Utility input | Utility AC input voltage (VAC) | 220±15% |
| Rated AC input voltage (A) | 4.5 | 9.0 | 13.6 | 22.7 | 45 | 91 | 136 | 227 |
| Bypass transfer time (ms) | ≤4 |
| AC output | Rated capacity (KVA) | 1.0 | 2.0 | 3.5KVA | 5.0 | 10 | 20 | 30 | 50 |
| Rated output power (KW) | 0.8 | 1.6 | 2.8 | 4.0 | 8.0 | 16 | 24 | 40 |
| Rated output voltage and frequency | 220VAC, 50HZ |
| Rated output current (A) | 4.5 | 9.0 | 13.6 | 22.7 | 45 | 91 | 136 | 227 |
| Output voltage regulation (V) | 220±3% |
| Output frequency regulation(Hz) | 50±0.05 |
| THD | ≤2% |
| Dynamic response (load 0←→100%) | 5% |
| Power factor | 0.8 |
| Overload | 150%,10s |
| Crest factor | 3:1 |
| Efficiency at rated load | 90% | 92% |
| Environment | Insulation strength (between input & output) | 1500VAC, 1min |
| Noise (1m) | ≤50dB |
| Temperature | -10 to +50 degC |
| Humidity | 0~90% |
| Altitude (m) | ≤2000 |
| Sizes | Rack type (W* D * H, mm) | 482×405×133 | 482×405×178 | 482×420×223 | 550×480×980 |
| Weight (kg) | 18 | 30 | 40 | 60 | 150 | 260 | 360 | 700 |
| Protection | DC input reversely protection, DC input under voltage, overload, short circuit, over temperature |
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
