| Prod Model: |
BZH-4000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Wave Form: |
Pure Sine Wave |
| Input Voltage: |
12V,24V,48V Optional |
| Output Voltage: |
110V,120V,220V,230V,240V Optional |
| Display: |
LED |
| Power: |
4kw |
Product Description

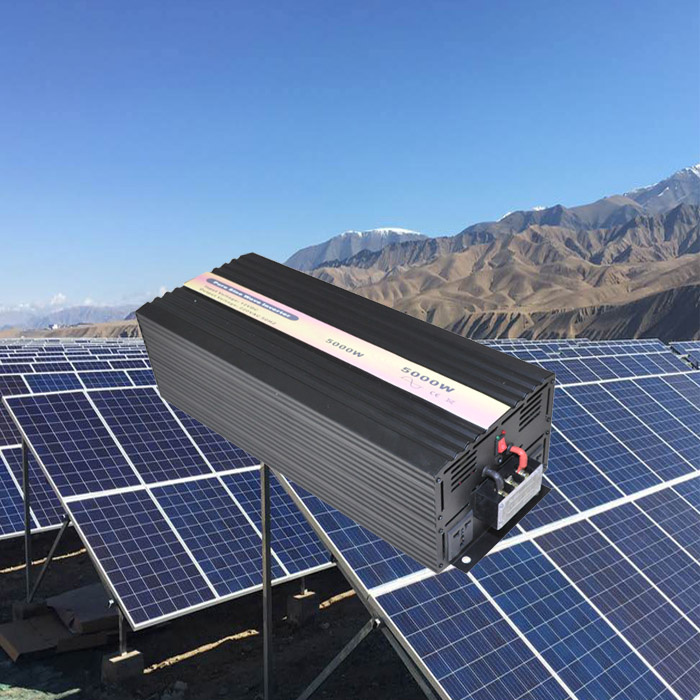

110VAC 60Hz Single Phase Output off Grid Inverter
Products Features:
- High Transform efficiency, fast start
- Pure sine wave output waveform
- Strong adaptability and stability
- With automatic over-current and output short circuit protection to avoid damage the equipment
- Safe and reliable with built in fuse
Function details:
Model
BZH-4000-121
BZH-4000-241
BZH-4000-481
BZH-4000-122
BZH-4000-242
BZH-4000-482
Rated Power
4000W
4000W
4000W
4000W
4000W
4000W
Max. Continuous Power
8000W
8000W
8000W
8000W
8000W
8000W
DC input voltage
12V
24V
48V
12V
24V
48V
AC output voltage
110VAC
220VAC
No-load current
1.5A
0.75A
0.37A
1.5A
0.75A
0.37A
AC output frequency
50Hz/60HZ
AC output waveform
Pure Sine Wave
Waveform distortion
THD<2%(linear load="" p="">
Efficiency
>85%
>88%
>90%
>85%
>88%
>90%
DC input voltage range
10.5-15V
21-30V
42-60V
10.5-15V
21-30V
42-60V
Low Voltage Alarm
10.5+/-0.3V
21+/-0.3V
42+/-0.3V
10.5+/-0.3V
21+/-0.3V
42+/-0.3V
Low Voltage Shutdown
10+/-0.3V
20+/-0.3V
40+/-0.3V
10+/-0.3V
20+/-0.3V
40+/-0.3V
Over Voltage Protection
15.5+/-0.5V
31+/-1V
62+/-2V
15.5+/-0.5V
31+/-1V
62+/-2V
Low Voltage Recovery
12+/-0.5V
24+/-1V
48+/-2V
12+/-0.5V
24+/-1V
48+/-2V
Over Voltage Recovery
14.8V
29.5V
59V
14.8V
29.5V
59V
Protective function
Low/Over voltage: LED Red light, automatic recovery
Over load: LED Red light, automatic recovery
Over temperature : LED Red light, automatic recovery
Short circuit: LED Red light, automatic recovery
Input reverse connection: Fuse burn-out
Working Temp.
0ºC-40ºC
Storage Temp. Humidity
-30ºC-70ºC
Dimension
480*240*140mm
Wight
11kg
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,
Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 500pcs.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What is the warranty period ?
A. Normally 1 year.
OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.
Lead Time
1.Sample orders will be delivered from our factory within 3-7 working days.
2.General orders will be delivered from our factory within 15-30working days.
3.Big orders will be delivered from our factory within 45 working days at most
Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.
2.By our forwarding agent(by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
