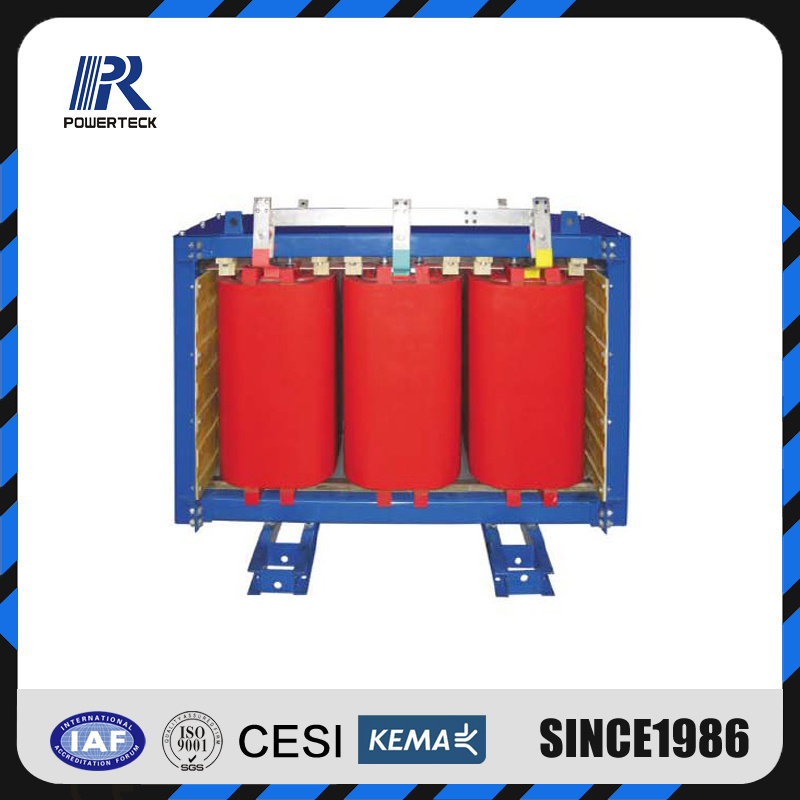

11kv 2500kVA Cast Resin Dry Type Transformer/Distribution Transformer
| Price: |
US $ 1500-100000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SCBH15 |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Powertech |
Product Description
SCBH15 amorphous metal dry type transformer
Product description
The dry-type transformer is without oil, so it is no danger of burning and can be installed indoor as well as be entered into load center to meet the needs of high-density load development in modern metropolises.
Feature
This product possess such advantages as low no-load loss, no oil, flame retardation and self-extinguishing, moisture resistance, crack resistance, maintenance-free etc. can be used to replace all common dry-type transformers which now are used in many places. They can used in high buildings, commerce centers, subways, airports, train stations, enterprises and power plants, they are especially suitable for installing and using in such places where strict fireproof requirements, including anti-combustible and anti-explosive, must be meet.
Main technical data for 30kVA-2500kVA dry type amorphous alloy core distribution transformer Rated capacity
(kVA) | Voltage | Vector group | No-load
Loss
(W) | On-load
Loss
(W) | No-load
Current
(%) | Impedance
Voltage
(%) |
High voltage
(kV) | HV tap range
(%) | Low voltage
(kV) |
| 30 | 6
6.3
6.6
10
10.5
11 | ±5±2×2.5% | 0.4 | Dyn11 | 70 | 710 | 1.6 | 4 |
| 50 | 90 | 1000 | 1.4 |
| 80 | 120 | 1380 | 1.3 |
| 10 | 130 | 1570 | 1.2 |
| 125 | 150 | 1850 | 1.1 |
| 160 | 170 | 2130 | 1.1 |
| 200 | 200 | 2530 | 1.0 |
| 250 | 230 | 2760 | 1.0 |
| 315 | 280 | 3470 | 0.9 | 6 |
| 400 | 310 | 3990 | 0.8 |
| 500 | 360 | 4880 | 0.8 |
| 630 | 420 | 5880 | 0.7 |
| 630 | 410 | 5960 | 0.7 |
| 800 | 480 | 6960 | 0.7 |
| 1000 | 550 | 8130 | 0.6 |
| 1250 | 650 | 9690 | 0.6 |
| 1600 | 760 | 11730 | 0.6 |
| 2000 | 1000 | 14450 | 0.5 |
| 2500 | 1200 | 17170 | 0.5 |
| 1600 | 760 | 12960 | 0.6 | 8 |
| 2000 | 1000 | 15960 | 0.5 |
| 2500 | 1200 | 18890 | 0.5 |
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE POWERTECH:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
