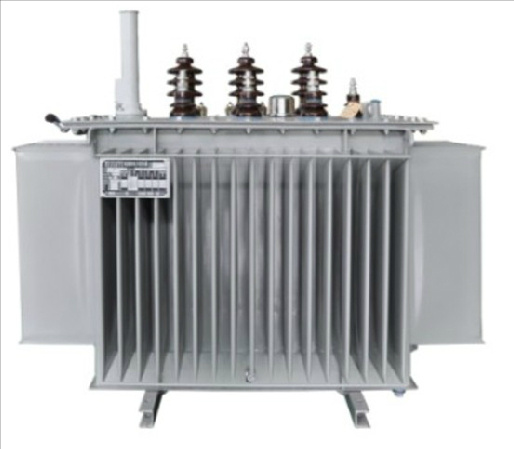

11kv Distribution Transformer

Name: 11kv Distribution Transformer
Brand: all-electronics-online.com
SKU: 707854565
Availability: InStock
Rating: 4.8 (101 reviews)

Price:	US $ 1500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	sc
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Transformer
Phase:	Three
Application:	Instrument
Coil:	Core-type Transformer
Winding Type:	Two-winding Transformer
Cooling Method:	Oil-immersed Type Transformer
Brand:	Refine
Certification:	SGS

Product Description

- Model Type: S11 Series

- Rated Voltage: 6~11 KV

- Capacity: 30~1600 kVA

- Windings: Copper / Aluminum / as required

- Vector Group: Dyn11 / Yyn0

- Standard: IEC60076

- Service Conditions:
Outdoor use,
Altitude: 0~2200m
Temperature range: -1 ~ +40 oC
Humidity: Up to 95%
Pollution Severity Level: Heavy

- This series products have various types, the following technical parameter is for your reference:

Note:
The load losses at the left side of the slash are applicable to Dyn11 vector group, and the load losses at the right side of the slash are applicable to Yyn0 vector group.

Type	Rated Capacity (KVA)	Voltage combination (KV/KV)		Vector Group	Losses(KW)		No-load current (%)	UK (%)	Weight (kg)
Type	Rated Capacity (KVA)	HV	LV	Vector Group	No-load	Load	No-load current (%)	UK (%)	Active parts	Oil	Gross
S11-M	30	6 6.3 10 10.5 11 ± 5% ± 2x 2.5%	0.4	Dyn11 Yyn0	0.10	0.63/0.6	2.00	4.0	180	80	300
	50				0.13	0.91/0.87	1.90		235	90	400
	80				0.18	1.31/1.25	1.70		320	100	500
	100				0.20	1.58/1.54	1.50		360	110	580
	125				0.24	1.89/1.8	1.40		440	130	650
	160				0.28	2.31/2.2	1.30		480	140	790
	200				0.34	2.73/2.6	1.20		600	170	930
	250				0.40	3.2/3.05	1.10		680	200	1050
	315				0.48	3.83/3.65	1.05		810	230	1230
	400				0.57	4.52/4.3	0.95		950	250	1450
	500				0.68	5.41/5.15	0.90		1170	300	1750
	630				0.81	6.20	0.80	4.5	1430	400	2200
	800				0.98	7.50	0.70		1650	500	2700
	1000				1.15	10.30	0.60		1980	600	3100
	1250				1.36	12.00	0.55		2150	700	3800
	1600				1.64	0.50	0.50		2600	800	4500
