11kv XLPE/PVC Power Cable 3X1X300mm2

Name: 11kv XLPE/PVC Power Cable 3X1X300mm2
Brand: all-electronics-online.com
SKU: 696861692
Availability: InStock
Rating: 4.7 (39 reviews)

Price:	US $ 0.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJLV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Core Number:	3
Sheath Color:	as Your Requirment
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	CE
Sheath Material:	XLPE
Wire Core Material:	Copper or Aluminum
Model:	Yjlv32
Brand:	Yifang

Product Description

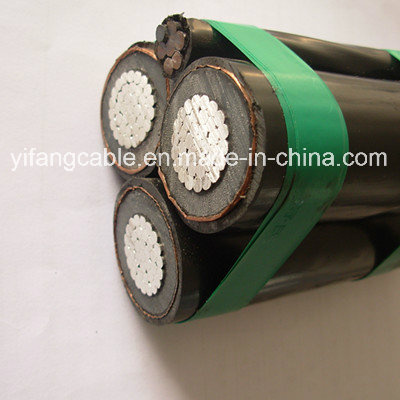

11kv XLPE/PVC Power Cable 3X1X300mm2
Medium voltage power cable.

Max conductor operating temperature:90degree
Short circuit temperature:250 degree
Ambiant temperature:30degree
Depth of laying in direct:0.8m
Thernmal resistance of soil:150 degree.cm/w
Thernmal resistance of ducts:120 degree.cm/w

Conductor materiaL:Copper or Aluminum
Core number: 1 or 3
Rate voltage: 6/10KV,12/20KV,18/30KV.26/35KV etc
Insulation: XLPE
Shield: Copper tape
Armoured: Steel wire or Steel tape
Sheath: PVC or PE Or LSZH or others
Standard: IEC, ICEA, NFC etc

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
