| Prod Model: |
GYFTY fiber optic cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation Style: |
Aerial & Duct |
| Brand Name Of Fiber: |
as Your Requiremen |
| Waterblocking Material: |
Water Blocking Tape or Filling Compound |
| Outer Sheath Material: |
MDPE / HDPE / LSZH PE |
| Fiber Account: |
2-288 Core |
| Strengthen Member: |
Glass Yarn or Aramid Yarn |
| Application: |
Fiber Optic Cable |
| Certification: |
Reach |
| Type: |
Single More or Multimode |
| Connection Structure: |
Fiber Optic Cable |
| Sheath Material: |
LSZH, HDPE, MDPE |
Product Description
GYFTY-Technical specification for SMF Optical Fiber Cable
(Suitable for Aerial or Duct installation)
This specification covers the stranded loose tube type optical fiber cables and technical properties complying with the latest YD/T 901-2009 standard.
1. Brief introduction of optical fiber cables

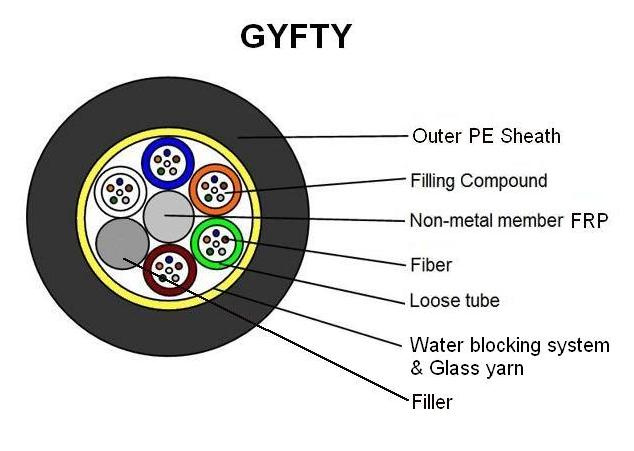

GYFTY: FRP strength member, Loose tube stranded and filled with jelly, dry cable core, GRP yarn, rip cord, Outer PE sheath, optical cable for outdoor.
Main Technical Parameters
Fiber
number | Cable diameter (mm) | Cable net weight
(Kg/km) | Min. bending radius
(mm) | Min. tensile strength
(N) | Min. crush pressure
(N/100mm) |
| Static state | Dynamic state | Short term | Long term | Short term | Long
term |
| 42 and below | 10.9 | 93 | 110 | 220 | 1500 | 600 | 1000 | 300 |
| 44~48 | 11.3 | 103 | 120 | 240 | 1500 | 600 | 1000 | 300 |
| 50~84 | 12.4 | 121 | 130 | 260 | 1500 | 600 | 1000 | 300 |
| 86~96 | 13.1 | 133 | 140 | 280 | 1500 | 600 | 1000 | 300 |
| 98~108 | 13.9 | 149 | 140 | 280 | 1500 | 600 | 1000 | 300 |
| 110~120 | 14.7 | 166 | 150 | 300 | 1500 | 600 | 1000 | 300 |
| 122~132 | 15.5 | 184 | 160 | 320 | 1600 | 600 | 1000 | 300 |
| 134~144 | 16.2 | 201 | 170 | 340 | 1800 | 600 | 1000 | 300 |
| Operating temperature | -40~+60ºC |
Application:
Single Jacket glass yarn cables are lightweight with small diameter and designed for duct and aerial installation with lashing method. The loose tube design with a FRP strength member and glass yarn for provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.
Design:
l Up to 288 fibers
l Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties.
l Can Moisture barrier with water blacking tape and water blacking glass yarn.
l Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN
