| Prod Model: |
GYFTY |
| Model No: |
GYFTY |
| Fiber Count: |
2-144 Core |
| Brand Name Of Fiber: |
Corning ,Yofc...as Your Requirement |
| Loose Tube Material: |
PBT |
| Loose Tube Filling Material: |
Jerry |
| Color Of Loose Tube: |
Orange,Green , Brown,Red |
| Central Strength Member: |
Non-Metallic |
| Strength Material: |
Aramid Yarn |
| Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Aerial |
| Application: |
Factory Price Fiber Optic Cable |
| Certification: |
Reach,Tlc,etc |
| Type: |
Single-Mode or Multimode Fiber |
| Connection Structure: |
Factory Price Fiber Optic Cable |
| Allowed Lateral Pressure: |
Short Term 1500n; Long Term 600n |
| Allowed Tensile Strength: |
Short Term 1000n; Long Term 300n |
| Core: |
2-288 Core |
| Brand: |
Tw-Scie or OEM |
| Sheath Material: |
MDPE / HDPE / LSZH PE |
Product Description

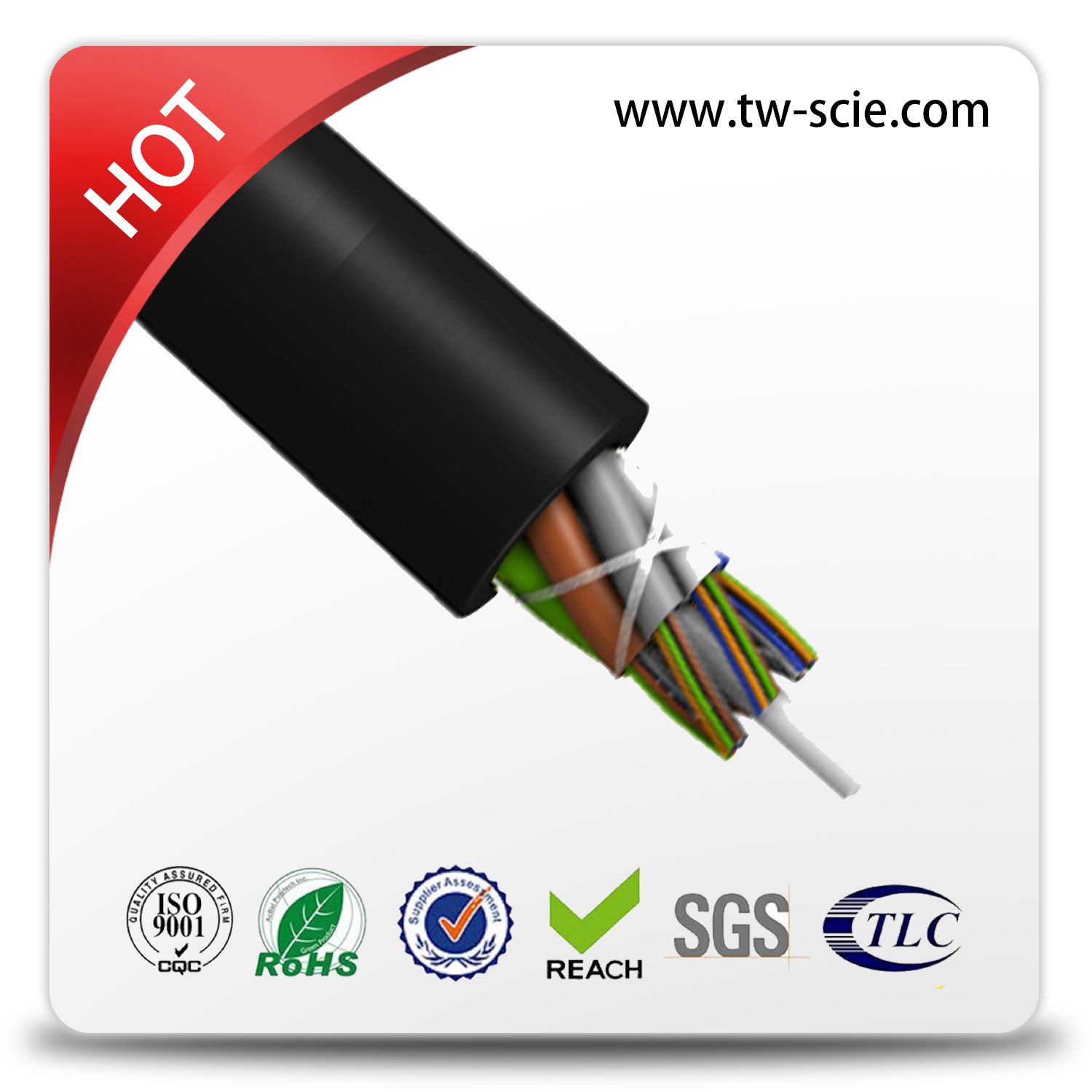

24 Core Non-amored Outdoor Fiber Optic Cable GYFTY with FRP
Product Description
Access Building Cables
Description:
This specification covers a series of cables with 2 to 12 fibers. The cable fulfils the fire performance test of IEC332-1 and IEC332-3C.
Application:
l Backbone in LAN's
l Indoor/ outdoor in ducts
l Internal wiring/ fan-outs
Construction Data:
| Loose tube material | PBT |
| Loose tube diameter | 3.0mm |
| Water blocking material | Fiber filling |
| Core reinforce | Glass yarn |
| Out jacket material | PE |
| Jacket thickness | 1.1mm |
Technical Data-Physical:
| Fiber count | 2 | 4 | 6 | 8 | 10 | 12 |
| Cable diameter (mm) | 8.2 |
| Cable weight (kg/km) | 77 |
| Temperature rating | -20 ~+60ºC |
| Operation storage | -20 ~+60ºC |
Technical Data-Mechanical:
| Max. loading (IEC794-1) Installation operation |
1000N
400N |
Min. bend radius (IEC794-1)
Long term (mm)
Short term (mm) |
20xD
10xD |
| Crush resistance (IEC794-1) | 1000N/100mm |
Technical Data-Transmission:
| Fiber type | Single-mode (1310/1550nm) | Multi-mode (50/125um)
(850/1300nm) | Multi-mode
(62.5/125um)
(850/1300nm) |
| Attenuation | Typical | 0.36/0.22 | 3.0/1.0 | 3.0/1.0 |
| Maximum | 0.5/0.4 | 3.5/1.5 | 3.5/1.5 |
| Zero dispersion slope | <0.093ps/km•nm2 | - | - |
| Dispersion (1285~1340nm) | -3.5~ 3.5ps/ (nm•km) | - | - |
| Mode field diameter | 9.3+/-0.4um | - | - |
| Cutoff wavelength cable | <1270nm | - | - |
| Bandwidth | @850nm | - | ≥200MHz•km | ≥160MHz•km |
| @1300nm | - | ≥400MHz•km | ≥200MHz•km |
| Cladding diameter (um) | 125+/-1.0 | 125+/-1.0 | 125+/-1.0 |
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-300 |
| Condition | nm | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
| Attenuation | dB/km | 0.36/0.23 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
| Dispersion | 1550nm | Ps (nm ·km) | ≤18 | ----- | ----- | Dispersion |
| 1625nm | Ps (nm ·km) | ≤22 | ----- | ----- | |
| Bandwidth | 850nm | MHZ ·.km | ----- | ≥400 | ≥160 | Bandwidth |
| 1300nm | MHZ. ·km | ----- | ≥800 | ≥500 | |
| Zero dispersion wavelength | nm | ≥1302 ,≤1322 | ------ | ------ | ≥1295 ,≤1320 |
| Zero dispersion slope | nm | ≤0.091 | ------ | ------ | ≤0.11 |
| PMD Maximum Individual Fibre | um | ≤0.2 | ------ | ------ | ------ |
| PMD Design Link Value | Ps/(nm2*km) | ≤0.08 | ------ | ------ | ------ |
| Fibre cutoff wavelength λc | nm | ≥1180 ,≤1330 | ------ | ------ | ------ |
| Cable cutoff wavelengthλcc | nm | ≤1260 | ------- | ------- | ------- |
| Mode field diameter(MFD) | 1310nm | um | 9.2±0.4 | ------ | ------- | ------- |
| 1550nm | um | 10.4±0.8 | ------ | ------- | ------- |
| Numerical Aperture(NA) | | ----- | 0.200±0.015 | 0.275±0.015 | 0.200±0.015 |
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0. 10 | ≤0. 10 | ≤0. 10 |
| Irregularities over fibre length and point discontinuity | dB | ≤0.05 | ≤0. 10 | ≤0. 10 | ≤0. 10 |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0. 08 | ≤0. 10 | ≤0. 08 |
| Attenuation uniformity | dB/km | ≤0.01 | ----- | ------ | ----- |
| Core diameter | um | ----- | 50±1.0 | 62.5±2.5 | 50±1.0 |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 242±7 | 242±7 | 242±7 |
| Coating/cladding concentricity error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non-circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | ≤4 | ----- | ----- | ----- |
Technical Requirements:
| Fiber Count | ART.NO. | AS-1 | AS-2 | AS-3 | AS-4 | AS-5 | AS-6 |
|
|
|
| MAX.SPAN | 50-100 | 100-200 | 200-400 | 500-700 | 800-1000 | 1100-1300 |
| RTS | 5.0kN | 12.0kN | 25.0kN | 45.0kN | 77.5kN | 125.0kN |
| MAT | 2.0kN | 4.8kN | 10.0kN | 18.0kN | 31.0kN | 50.0kN |
| 2-24B | Diameter/mm | 12.1 | 12.3 | 12.7 | 13.3 | 14.5 | 16.2 |
| Weight kg/km | 115 | 119 | 129 | 144 | 169 | 207 |
| 24-48B | Diameter/mm | 12.7 | 12.9 | 13.3 | 13.9 | 14.9 | 16.6 |
| Weight kg/km | 125 | 130 | 140 | 155 | 179 | 217 |
| 48-72B | Diameter/mm | 14 | 14.1 | 14.5 | 15 | 16 | 17.5 |
| Weight kg/km | 150 | 155 | 164 | 179 | 203 | 240 |
Technical Requirements:
| Fiber Count | 2-144 |
| Max. Tension (N) | Short-term | 3000 |
| Max. Tension (N) | Long-term | 1000 |
| Max. Crushing Resistance (N/100mm2) | 1000 |
| Temperature range(ºC) | -40ºC-- +70ºC |
| Min. Bending Radius(mm) | Install | 20D |
| Min. Bending Radius(mm) | Static | 10D |
GYFTY Outdoor Optical Cable
Corss Section
Application:
l Laying method: Duct
l Suitable for long-distance trunk and LAN communication in high-voltage area or access to telecom network. Especially for power transmission system, excessive thunder areas and high electromagnetic interference.
l Fiber type: Single-mode/Multimode
Characteristics:
l Non-metallic structure providing excellent anti-electromagnetism,anti-thunder and anti-static performance.
l Accurate fiber excess length ensures good mechanical and temperature performance.
l Specially designed compact structure is good at preventing loose tubes from shrinking.
l High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.
Fiber characteristic:
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-300 |
| Condition | nm | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
| Attenuation | dB/km | 0.36/0.23 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
| Dispersion | 1550nm | Ps (nm ·km) | ≤18 | ----- | ----- | Dispersion |
| 1625nm | Ps (nm ·km) | ≤22 | ----- | ----- | |
| Bandwidth | 850nm | MHZ ·.km | ----- | ≥400 | ≥160 | Bandwidth |
| 1300nm | MHZ. ·km | ----- | ≥800 | ≥500 | |
| Zero dispersion wavelength | nm | ≥1302 ,≤1322 | ------ | ------ | ≥1295 ,≤1320 |
| Zero dispersion slope | nm | ≤0.091 | ------ | ------ | ≤0.11 |
| PMD Maximum Individual Fibre | um | ≤0.2 | ------ | ------ | ------ |
| PMD Design Link Value | Ps/(nm2*km) | ≤0.08 | ------ | ------ | ------ |
| Fibre cutoff wavelength λc | nm | ≥1180 ,≤1330 | ------ | ------ | ------ |
| Cable cutoff wavelengthλcc | nm | ≤1260 | ------- | ------- | ------- |
| Mode field diameter(MFD) | 1310nm | um | 9.2±0.4 | ------ | ------- | ------- |
| 1550nm | um | 10.4±0.8 | ------ | ------- | ------- |
| Numerical Aperture(NA) | | ----- | 0.200±0.015 | 0.275±0.015 | 0.200±0.015 |
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0. 10 | ≤0. 10 | ≤0. 10 |
| Irregularities over fibre length and point discontinuity | dB | ≤0.05 | ≤0. 10 | ≤0. 10 | ≤0. 10 |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0. 08 | ≤0. 10 | ≤0. 08 |
| Attenuation uniformity | dB/km | ≤0.01 | ----- | ------ | ----- |
| Core diameter | um | ----- | 50±1.0 | 62.5±2.5 | 50±1.0 |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 242±7 | 242±7 | 242±7 |
| Coating/cladding concentricity error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non-circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | ≤4 | ----- | ----- | ----- |
Technical Requirements:
| Fiber Count | Cable Dia (mm) | Weight (kg/km) | Min.Bending Radius(mm) | Max Tension(N) | Crush Pressure (N/100mm) |
| | | | Dynamic | Static | Short Term | Long Term | Short Term | Long Term |
| 2-36 | 10.5 | 85 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 36-60 | 11.4 | 110 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 48-72 | 11.9 | 115 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 72-84 | 12.8 | 125 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 84-96 | 13.7 | 140 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 96-108 | 14.6 | 160 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 108-120 | 15.4 | 175 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 120-132 | 16.3 | 195 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 132-216 | 17.2 | 220 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
GYFTY53 Outdoor Optical Cable
Description
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied. the cable is completed with a PE outer sheath. |
Characteristics
·Good mechanical and temperature performance
·High strength looes tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·The following measures are taken to ensure the cable watertight:
-Single Fiber Reinforced Plastic as the central strength member
-Loose tube filling compound
-100% cable core filling
-PSP enhancing moisture-proof
-Water-blocking material
Standards
GYFTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Optical Characteristics |
| | G.652 | G.655 | 50/125μm | 62.5/125μm | Attenuation
(+20ºC) | @850nm | | | ≤3.0 dB/km | ≤3.0 dB/km | | @1300nm | | | ≤1.0 dB/km | ≤1.0 dB/km | | @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | | | @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | | | Bandwidth (Class A) | @850nm | | | ≥500 MHz·km | ≥200 MHz·km | | @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km | | Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA | | Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | | |
|
| Technical Parameters |
| Cable Type | Fiber Count | Tubes | Fillers | Dia
mm | Cable Weight kg/km | Tensile Strength
Long/Short Term
N | Crush Resistance
Long/Short Term
N/100mm | Bending Radius
Static/Dynamic
mm | | GYFTY53-2~6 | 2~6 | 1 | 7 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-8~12 | 8~12 | 2 | 6 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-14~18 | 14~18 | 3 | 5 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-20~24 | 20~24 | 4 | 4 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-26~30 | 26~30 | 5 | 3 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-32~36 | 32~36 | 6 | 2 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-38~42 | 38~42 | 7 | 1 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-44~48 | 44~48 | 8 | 0 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-50~60 | 50~60 | 5 | 3 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D | | GYFT Y53-62~72 | 62~72 | 6 | 2 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-74~84 | 74~84 | 7 | 1 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-86~96 | 86~96 | 8 | 0 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-98~108 | 98~108 | 9 | 1 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-110~120 | 110~120 | 10 | 0 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-122~132 | 122~132 | 11 | 1 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D | | GYFTY53-134~144 | 134~144 | 12 | 0 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D |
|
| Storage/Operating Temperature : -40ºC to + 70ºC |
Tag: Aerial Cable; Fiber Optical; Non-menta Cable.
