| Prod Model: |
GYTC8S fiber optic cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Fiber Optic Cable / Fiber Cable / Optic Cable / Op |
| Installation Style: |
Duct, Aerial Optical Cable |
| Brand Name Of Fiber: |
Corning, Yofc, Draka, Fujikura... |
| Loose Tube Material: |
PBT with Jelly |
| Waterblocking Material: |
Water Blocking Tape or Filling Compound |
| Outer Sheath Material: |
MDPE / HDPE / LSZH PE |
| Outer Sheath Color: |
Black PE Fiber Optic Cable |
| Single Armour Material: |
Corrugated Steel Tape |
| Central Stranden Member: |
Steel Wire or FRP |
| Operating Temperature: |
-40 Degree ~ +60 Degree |
| Application: |
Fiber Optic Cable |
| Certification: |
Reach |
| Type: |
Single More or Multimode |
| Connection Structure: |
Fiber Optic Cable |
| Sheath Material: |
PE |
Product Description

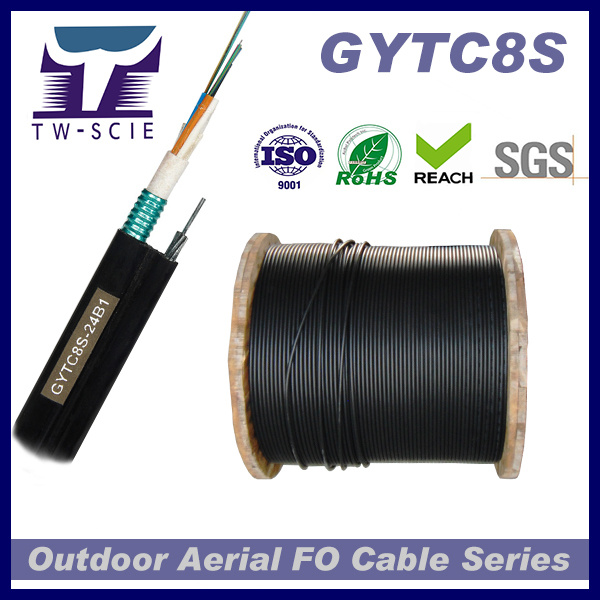

Self-support Multi Loose Tube Figure 8 Fiber Optic Cable
Features:
1. Up to 288 Fiber Optic.
2. The loose tube stranding technology make the fibers have good secondary excess lenth and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cables is subjected to longitudinal stress.
3. Corrugated steel lape armored and PE outer sheath providing properity crush resistance and gun shot resistance features.
4. Stranded wires as sell supportiong member providing excellent strain performance and convenlent installation.
General Specifications:| Cable Type | GYTC8S |
| Fiber Type | SM , OM1, OM3 |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Aerial |
| Environment | Outdoor |
| Temperature Range | -40ºC to 70ºC |

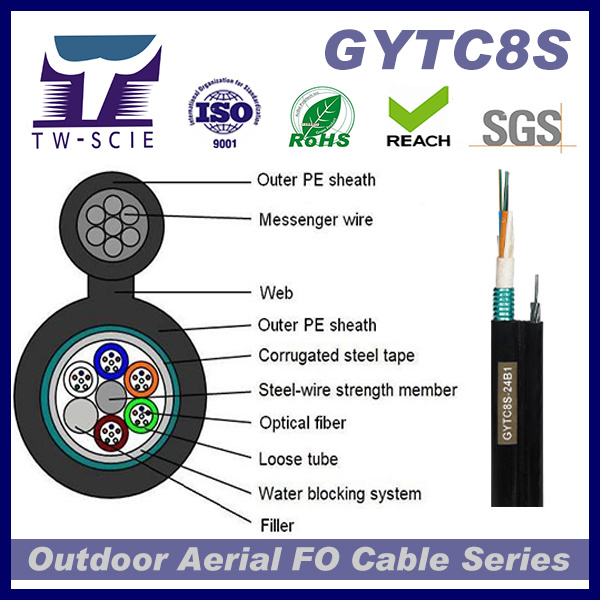

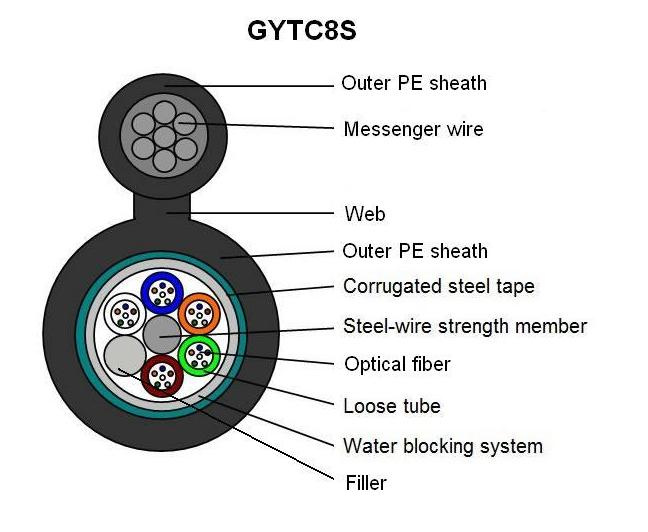

Cable Structure:
Characteristics:
· High tensile strength of stranded wires meet the requirement of self-supporting and reduce the
installation cost
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· PSP enhancing moisture-proof
· Small diameter, light weight and friendly installation
· Long delivery length and low price.
Cable Design:

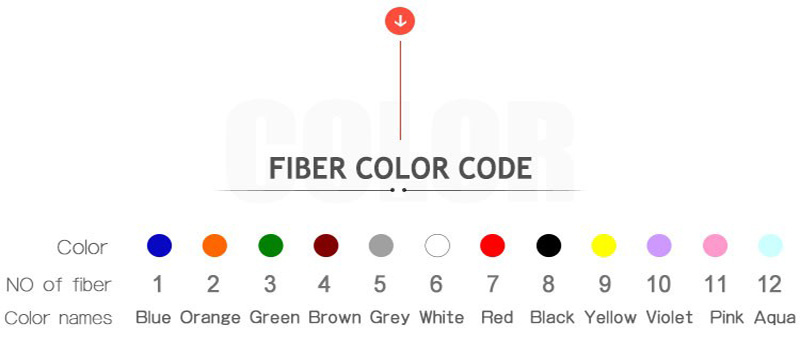

| Item | Description |
| Model No | GYTC8S |
| 1. Fiber count (CORE) | 48 |
| 2. Cable Diameter | |
| - Cable outer diameter | 10.0±0.2mm |
| - Cable height | 18.0±0.2mm |
| 3. Cable Weight | 150KG |
| 4. Central Strength member | |
| -Material | Steel wire |
| -Diameter | 1.4mm |
| 5. Loose Tube | |
| -Material | PBT |
| -Outer diameter | 1.6-2.0 mm |
| -Thickness | 0.3mm |
| -Type of filling compound | Jelly |
| 6. Filler | |
| -Material | PP |
| -Outer diameter | 1.6-2.0 mm |
| 7.Armor | |
| -Material | Corrugated steel tape |
| 8. Messenger wire | |
| -Material | Steel wire |
| -Structure | 1.0/7-3.0mm |
| 9. Tube Assembly | |
| -Tube Layout | 1+5 |
| -Stranding type | SZ |
| 10. Water-blocking system | |
| -Material | Filling Compound |
| 11. Core wrap | |
| -Material | Polyester tape |
| 12.Outer Sheath | |
| -Material | MDPE |
| -Thickness | 1.8mm±0.2mm |
| 13. Sheath marking | |
| -Type of marking | Laser printing |
Fiber Specifications:| Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber |
| Characteristics | Conditions | Specified Values | Units |
| Optical Characteristics | | | |
| Mode field diameter (MFD) | 1310nm
1550nm | 9.2±0.4
10.4±0.8 | µm
µm |
| Cut-off wavelength (λcc) | | ≤1260 | nm |
| Attenuation coefficient | 1310nm
1383nm
1550nm | <0.35
<0.35
<0.22 | dB/km
dB/km
dB/km |
| Macro bending loss | φ75mm, 100circles, at 1550nm | ≤0.1 | dB |
| Attenuation non-uniformity | | ≤0.05 | dB |
| Dispersion coefficient | 1288~1339nm
1271~1360nm
1550nm | ≤3.5
≤5.3
≤18 | Ps/(nm.km)
Ps/(nm.km)
Ps/(nm.km) |
| Zero dispersion wavelength | | 1300~1324 | nm |
| Max zero dispersion slope | | ≤0.093 | Ps/(nm2.km) |
| Group index of refraction (typical value) | 1310nm
1550nm | 1.466
1.467 | |
| Geometric characteristic | | | |
| Cladding diameter | | 125.0±1.0 | µm |
| Core/cladding concentricity error | | ≤0.8 | µm |
| Cladding non-circularity | | ≤1.0 | % |
| Coating diameter | | 245.0±10 | µm |
| Cladding/coating concentricity error | | ≤12.0 | µm |
| Coating non-circularity | | ≤8 | % |
| Diameter of colored coating | | 250.0±15 | µm |
| Mechanical characteristic | | | |
| Curling (radius) | | ≥4 | m |
| Proof stress | | >0.69 | Gpa |
| Coating strip force | Average value
Peak value | 1.0-5.0
1.3-8.9 | N
N |
| Dynamic stress corrosion susceptibility parameter (nd value) | | ≥20 | |
50/125 MM In cable: | Catalogue | Data |
| Core diameter | 50.0±2.5 |
| Cladding diameter | 125±1.0 |
| Core non circularity error | ≤6.0% |
| Cladding non circularity error | ≤1.0% |
| Core,cladding concentricity error | ≤12.0% |
| Coating diameter | 245±10 |
| Attention coefficient | 850nm≤2.3; 1300≤0.5 |
| Bandwidth MHZ.Km | 850≥400; 1300≥500 |
| Fiber tensile strength | ≥100kpsi(0.7GN/M2) |
OM1 (62.5/125) Multi Mode Fiber:| Catalogue | Data |
| Core diameter | 62.5±2.5 |
| Cladding diameter | 125±1.0 |
| Core non circularity error | ≤6.0% |
| Cladding non circularity error | ≤1.0% |
| Core,cladding concentricity error | ≤12.0% |
| Coating diameter | 245±10 |
| Attention coefficient | 850nm≤2.7; 1300≤0.6 |
| Bandwidth MHZ.Km | 850≥200; 1300≥400 |
| Fiber tensile strength | ≥100kpsi(0.7GN/M2) |
OM3 Multimode fiber:| Characteristics | Conditions | Specified Values | Units |
| Geometrical characteristics | | | |
| Core diameter | | 50±2.5 | μm |
| Core non-circularity | | ≤5 | % |
| Cladding diameter | | 125.0±1.0 | μm |
| Cladding non-circularity | | ≤1.0 | % |
| Coating diameter | | 245±7 | μm |
| Coating/cladding concentricity error | | ≤12 | μm |
| Coating non-circularity | | ≤6.0 | % |
| Core/cladding concentricity error | | ≤1.0 | μm |
| Optical characteristics | | | |
| Attenuation | 850nm | 3.5 | dB/km |
| | 1300nm | 1.5 | dB/km |
| Overfilled modal bandwidth | 850nm | 1500 | MHz*km |
| | 1300nm | 500 | MHz*km |
| Effective modal bandwidth@850nm | | 2000 | MHz*km |
| Application support distance on | | | |
| 10 gigabit ethernet S 850nm | | 300 | m |
| Gigabit ethernet SX 850nm | | 1000 | m |
| Gigabit ethernet LX 1300nm | | 600 | m |
| 40 &100 gigabit ethernet S 850nm | | 100 | m |
| Numerical Aperture | | 0.2±0.015 | |
| Group index of refraction | 850nm | 1.482 | |
| | 1300nm | 1.477 | |
| Zero dispersion wavelength | | 1295~1320 | nm |
| Zero dispersion slope | 1295nm≤λ0≤1300nm | ≤0.001 | ps/(nm2*km) |
| | 1300nm≤λ0≤1320nm | ≤0.11 | ps/(nm2*km) |
| Macrobending induced loss | 850nm | ≤0.5 | dB |
| 100 Turns @37.5nm Radius | 1300nm | ≤0.5 | dB |
| Backscatter characteristics | 1300nm |
