Figure 8 Self-Supporting Single Mode Aerial Fiber Optic Cable GYTC8S

Figure 8 Self-Supporting Single Mode Aerial Fiber Optic Cable GYTC8S
Price: US $ 0.2/Meter
Min Order: 1000/Meter
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: GYTC8S
Product Name: Optical Cable
Ouer Jacket: Black PE Sheath
Armore: Armored
Strengthen Member: Steel Wire
Loose Tube: Sz Stranding Loose Tube
Brand Of Optical Fiber: Corning, Fujikura,Draka
Water-Blocking: Filling Compound
Outer Diameter: 10.4mm
Installation: Aerial
No. Of Fibers: 2-288cores
Application: Optical Cable
Type: Single-mode Fiber
Certification: Optical Cable
Connection Structure: Optical Cable

Product Description

12C SM GYTC8S Self-Supporting Aerial Optical Cable

Product Information:

Product name



Figure 8 tight buffered communication fiber 24 core optic cables GYTC8S



Introduction

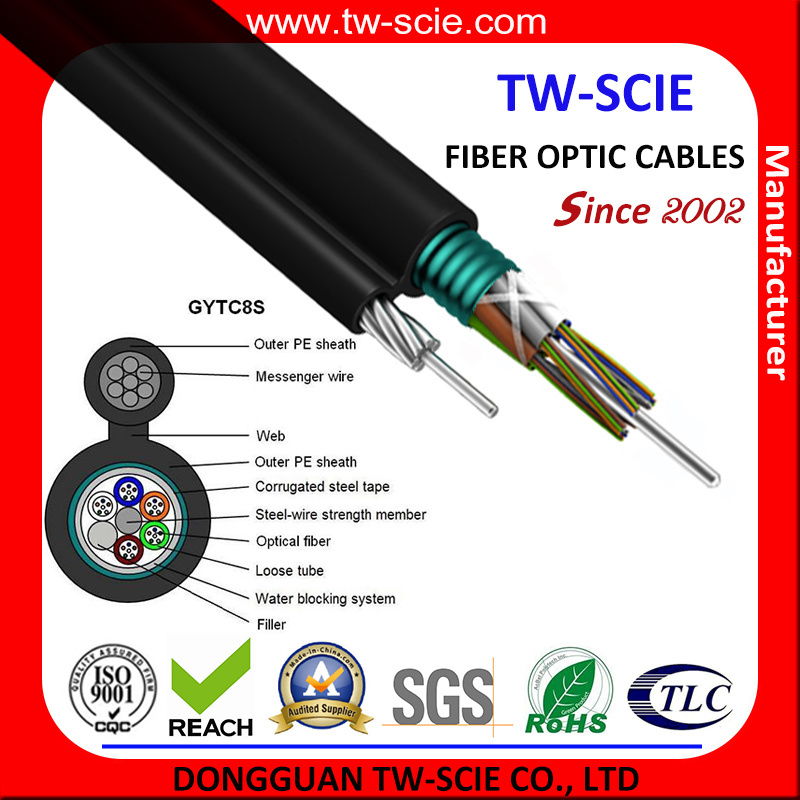

The fibers,250 um,are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound .A steel wire locates in the

center of core as a metallic strength member.The tubes(and fillers) are stranded

around the strength member into a compact and circular cable core.After an Aluminum

PolyethyleneLaminate(APL) moisture barrier is applied around the cable core,this

part of cable accompanied with the stranded

wires as the supporting part are completed with a polyethylene(PE) sheath to be

figure 8 structure.

Figure 8 cable DCTC8Y,DCTC8S are also available on request,This type of cable is

specifically applied for self-supporting aerial installation.



















Characteristics



















High tensile strength of stranded wires meet the requirement of self-supporting and reduce installation cost

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Scientific design with serious processing art

The following measures are taken to ensure the cable watertight:

Steel wire used as the central strength member

Loose tube filling compound

100% cable core filling

APL moisture barrier

Standards

Complies with standard YD/T 1155-2001 as well as IEC60794-1.



Product Description

The fibers,either single mode or multimode type, are placed in a loose tube made

of high modulus plastic. The tubes are filled with a water resistant filling compound.

A steel wire locates in the center of core as a metallic strength member.

The tubes (and fillers) are stranded around the strength member into a compact and

circular cable core. After PSP is applied around the cable core, this part of cable accompanied

with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to

be figure 8 structure. This kind of cable is specifically  applied for self-supporting aerial installation.

Characteristics:

1). Stainless steel or galvanized steel self--supporting messenger construction

2). Special tube filling compound ensure a critical protection of fiber

3). High strength loose tube that is hydrolysis resistant

4). Steel wire used as the central strength member

5). Excellent mechanical and environmental performance

6).100% cable core filling



 Application:



 1).Adopted to Outdoor distribution.


 2).Suitable for aerial .pipeline laying method.


 3).Long distance and local area network communication.



Note

1. Only a part of cables are listed in the table. Cables with other spans can be inquired.

2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

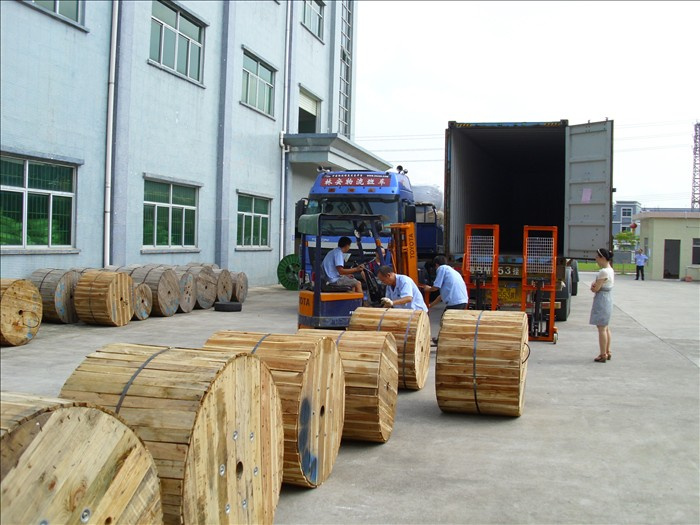

Packaging & Shipping
  1.

    Packaging

    Wooden drum, 3000m to 5000m/drum or as you required



    Shipping methods.

    By sea or by air



    Sheath mark

    applied at 1-meter intervals







    a. Supplier: Changguang or as customer required

    b. Standard Code(Product Type, Fiber Type, Fiber Count)

    c. Year of manufacture: xxx

    d. Length marking in meters



Our Services



24 Hours online service.

Enquiry will be replied in 2 hours.

Factory price with good service .

Free sample for 1 meter cable.



DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
