| Prod Model: |
GYTY53 Fiber Optic Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Gyty53 Fiber Optic Cable |
| Fiber Count: |
48 Core |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura...as Your Requiremen |
| Loose Tube Material: |
PBT |
| Loose Tube Filling Material: |
Jerry |
| Color Of Loose Tube: |
Orange,Green , Brown,Red etc |
| Central Strength Member: |
Steel Wire or FRP |
| Single Armour Material: |
Corrugated Steel Tape Under PE Sheath |
| Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Direct-Burial, Duct |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
Reach,Tlc,etc |
| Connection Structure: |
Optical Fiber Cable |
| Allowed Lateral Pressure: |
Short Term 3000n; Long Term 1000n |
| Allowed Tensile Strength: |
Short Term 3000n; Long Term 1000n |
| Core: |
48 Core |
| Sheath Material: |
MDPE / HDPE / LSZH PE |
Product Description
Double Armored Anti-Crush 48 Core Fiber Optic Cable GYTY53GYTY53 Features:
1. Up to 288 fibers.
2. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
3. Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance.
4. Metal strength member provides excellent strain performance.
| Technical data: |
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) |
| Static | Dynamic | Short term | Long term | Short term | Long term |
| 2-24 | 13.3 | 210 | 12.5 times O.D. | 25 times O.D. | 3000 | 1000 | 3000 | 1000 |
| 26-36 | 13.6 | 220 |
| 38-60 | 14.1 | 225 |
| 62-72 | 14.6 | 255 |
| 74-96 | 16.2 | 305 |
| 98-120 | 17.7 | 350 |
| 122-144 | 19.1 | 395 |
| 146-216 | 19.6 | 420 |
| 218-240 | 22.8 | 530 |
| 242-288 | 25 | 620 |
Fiber Optic Cable Applications
1. Adopted to Outdoor distribution
2. Suitable for direct buried method
3. Long distance and local area network communication
4. Used outdoor cabling
Fiber Optic Cable Specifications
1.2-288 core fiber optic cable / GYTY53 Fiber Optic Cable / Fiber Optic Cable
2. PE jacket 2-288 core Fiber Optic Cable
3. GYTY53 Fiber Optic Cable
4. Burial Fiber Optic Cable
Fiber Optic Cable Feature Description
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight
6. Loose tube filling compound, 100% cable core filling
7. Enhancing moisture-proof
8. Water-blocking material
9. Single Fiber Reinforced Plastic as the central strength memberFiber optic cable cable GYTY53 comply with Standard YD/T 901-2001 as well as IEC 60794-1
Fiber Optic Cable Wooden Drum:
The cables will be shipped on disable wooden or treated wooden drums or Steel reel on wooden drums.
Out packing: Protected by wooden batterns.
PS: The inner and outer ends of cable will be capped and made accessible for testing. A direction
Of rotation arrow is marked on the drum together with the identification

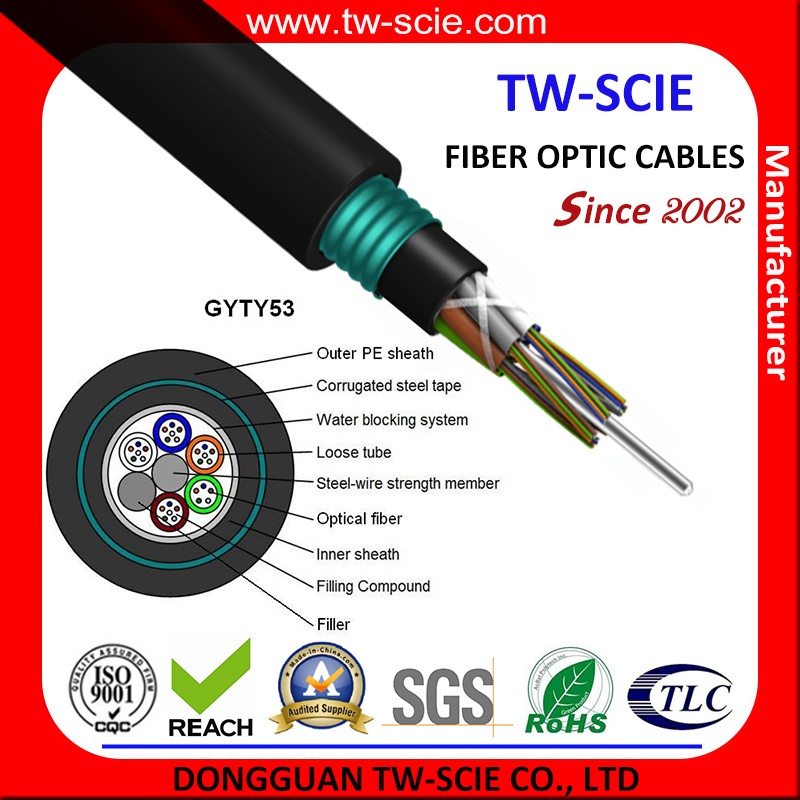

Structure chart of GYTY53:
More pictures for GYTY53:
