12/24 Core Sm Single Jacket Duct Aerial Optical Fiber Cable

Prod Model:	GYTA fiber optic cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Style:	Duct & Direct Buried
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE /Lszh
Outer Sheath Color:	Black
Armour Material:	Corrugated Aluminium Tape
Central Stranding Member:	Steel Wire or FRP
Color Of Fiber And Loose Tube:	Red,Black,Yellow,Violet,Pink,Aqua
Color Of Fiber /Loose Tube:	Blue,Orange,Green,Brown,Grey,White,
Application:	Fiber Optic Cable
Certification:	Reach
Type:	Single More or Multimode
Connection Structure:	Fiber Optic Cable

Product Description

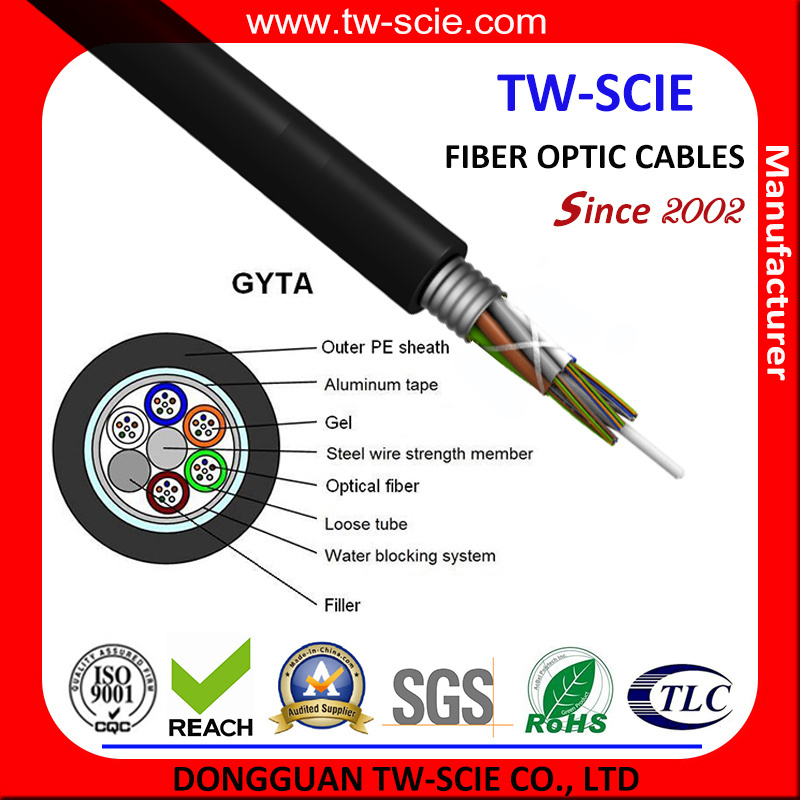

12/24 Core Sm Single Jacket Duct Aerial Optical Fiber Cable

1.Description for Competive price GYTA/S armored direct buried fiber optic cable for underground
1.The optical fiber cable has single PE sheath and single armored aluminum tape.
2.The optical fiber cable is Excellent mechanical and environmental performance.
3.The optical fiber cable special design for duct.
4.The optical fiber can choose g652d, g655, g657, 50/125um, 62.5/125um, om3, om4.
5.The cable is completed with a polyethylene (PE) sheath.
6.The optical fiber cable use Steel wire as the central strength member
7.The optical fiber cable fibers are positioned in a loose tube
8.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated  Aluminum tape.
9.The optical fiber cable Between the corrugated Aluminum tape and the loose tube water-blocking material is applied to keep the cable compact and watertight.

 2. Characteristics

a)· High tensile strength of stranded wires meet the requirement of self-supporting and reduce the
   installation cost.
b)· Good mechanical and temperature performance
c)· High strength loose tube that is hydrolysis resistant
d)· Special tube filling compound ensure a critical protection of fiber
e)· The following measures are taken to ensure the cable watertight:
              - Loose tube filling compound

              - 100% cable core filling

              - APL/PSP moisture barrier
3.Parameter


Fiber Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage  temperature
	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(°C)
24	10.5	90.00	1500	600	1000	300	20D	10D	-40+60
36	10.5	90.00	1500	600	1000	300	20D	10D	-40+60
42	10.5	90.00	1500	600	1000	300	20D	10D	-40+60
48	10.5	90.00	1500	600	1000	300	20D	10D	-40+60
60	10.5	90.00	1500	600	1000	300	20D	10D	-40+60
72	13.5	160.00	1500	600	1000	300	20D	10D	-40+60
96	13.5	160.0	1500	600	1000	300	20D	10D	-40+60
144	15.5	180.0	1500	600	1000	300	20D	10D	-40+60

4. Packaging & Shipping
Packing&Shipping for gyxtw 12 core central loose tube G652D cable
The following printing(white hot foil indentatioin)is applied at 1-meter intervals.
1.Supplier: As cuctomer required
2.Standard Code(Product Type, Fiber Type, Fiber Count): Aerial/Duct/Buried SM/MM xx F
3.Year of manufacture: xxx
4.Length marking in meters
5.Cable ID / Drum No.
The accuracy of marking is ±0.5%. Occasional loss of printing and remarking is in accordance with
Bellcore GR 20 and supersedes earlier marking. Cables can be supplied with a range of single mode
or multimode fibers and customized printing.



Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min. Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-30	9.8	95	10 times O. D.	20 times O. D.	1500	600	1000	300
32-36	10.3	115
38-60	10.7	115
62-72	11.3	140
74-96	12.9	175
98-120	14.4	210
122-144	15.8	245
146-216	16.3	260
218-240	19.5	345
242-288	21.7	415
