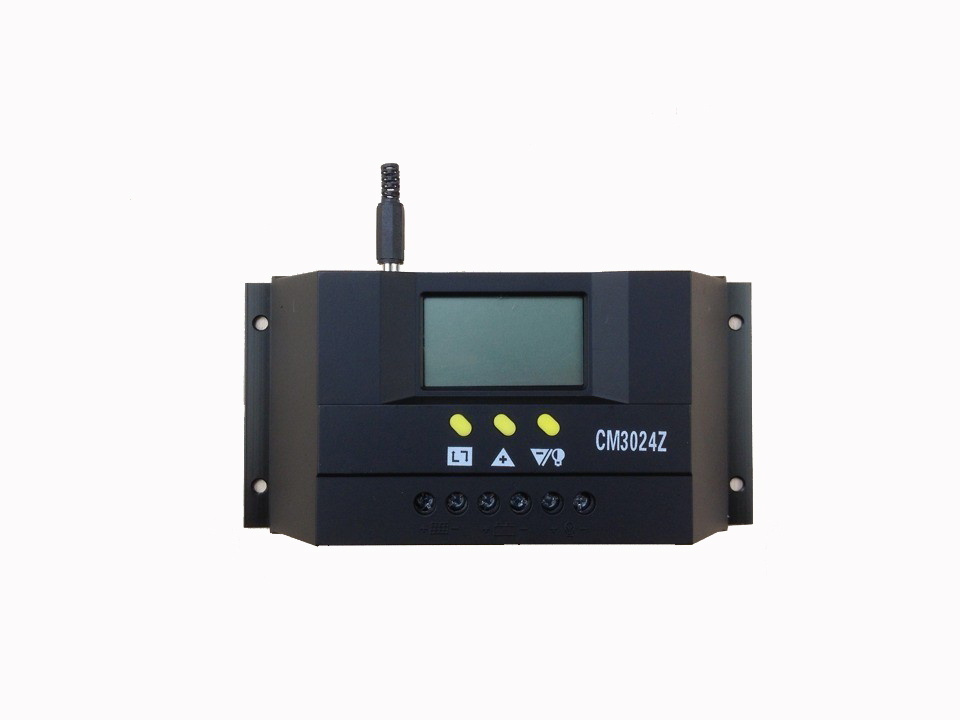

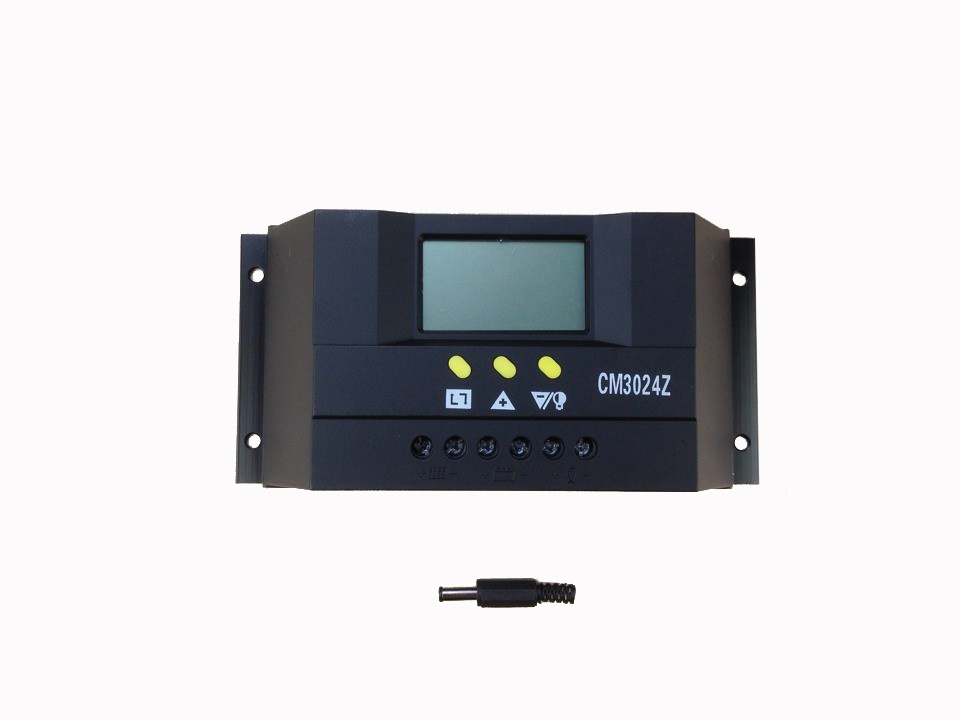

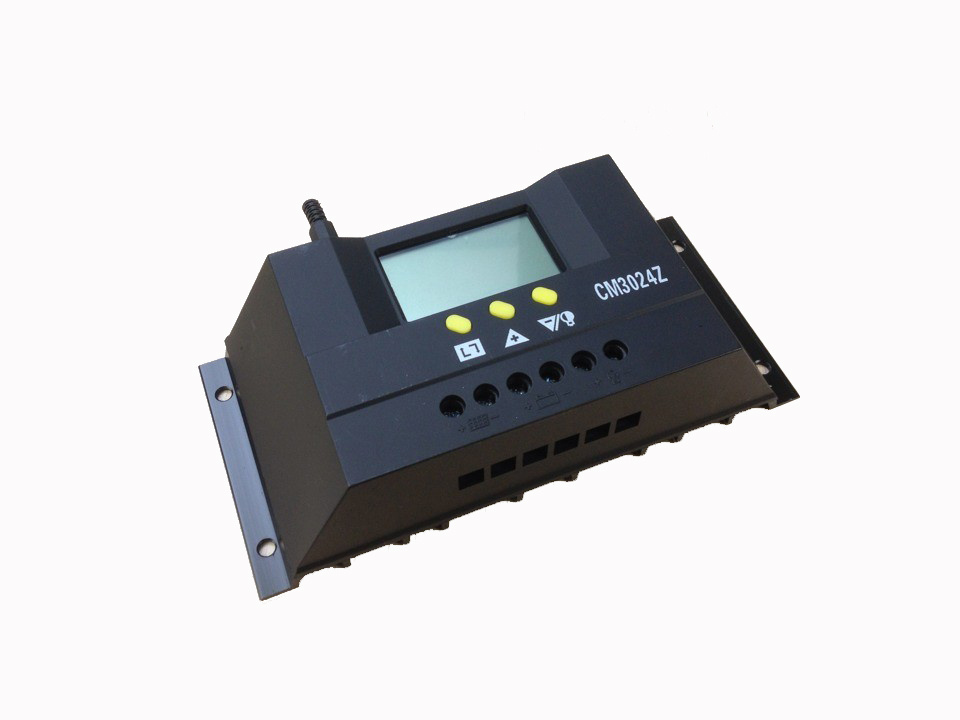

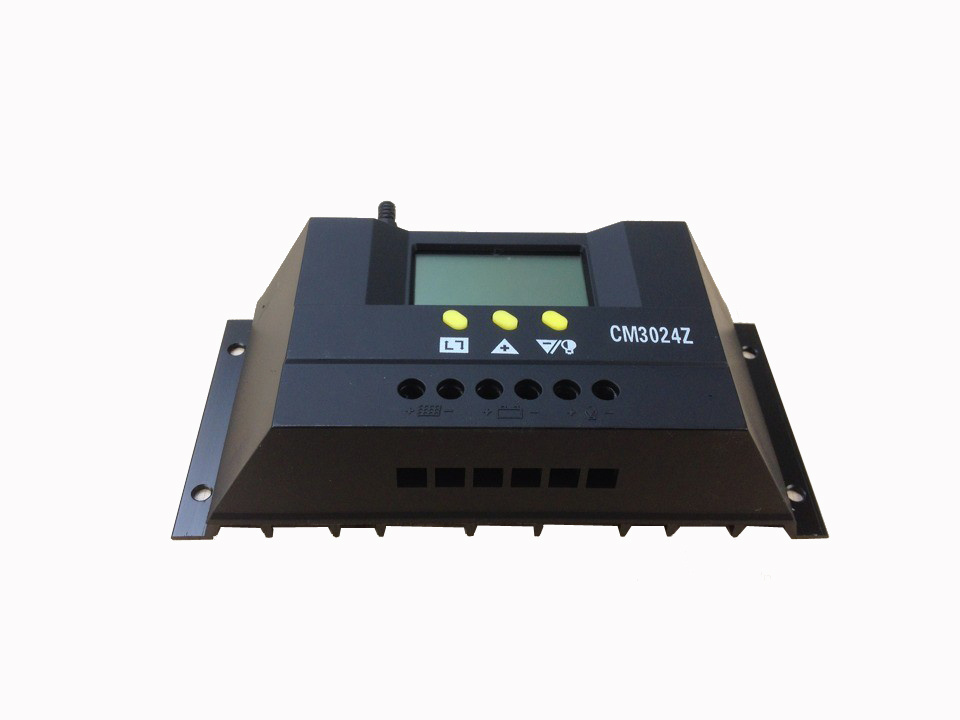

12/24V Automatic 30A Intelligent Solar Charge Controller with Visual LCD Graphic Symbol

12/24V Automatic 30A Intelligent Solar Charge Controller with Visual LCD Graphic Symbol
Price: US $ 9.88-14.88/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: CM-3024
Application: Special Equipment
Signal Transmission: IR Remote Control
Certification: CE
Universal: Universal
Transmission Distance: <50m
Voltage: 12V
Material: Plastic
Type: Electric
Battery Type: No

Product Description

12/24V automatic 30A Intelligent Solar Charge Controller  with Visual LCD graphic symbol

Product Introduction

This controller is a kind of intelligent, multi-purpose solar charge and discharge controller. These serial products adopt customized LCD display screen, which makes the operation on the interface rather convenient. All the controlling parameters can be reset flexibly to satisfy your different needs. This controller has the following features:
Visual LCD graphic symbolBrief key operation
Automatic identification system voltage levelIntelligent PWM charge mode
Automatic temperature compensationAdjustable charge-discharge control parameters
Settable operating modes of loadsBattery reverse-discharge protection
Remote monitoring function (custom)Battery reverses connection protection
Battery low voltage disconnection (LVD)With DC 12V and USB 5V output (custom)
Overload & short circuit protection

Technical Data

Rated Voltage12V/24V AUTO 48V
Rated Current20A30A40A50A60A20A30A40A50A60A
USB output voltage5V
DC output voltage12V
Voltage of solar panels≤50V≤100V
Float charging voltage13.7V/27.4V54.8V
Low voltage protection10.5V/21V42V
Low voltage recovery12.2V/24.4V48.8V
CharacteristicNo load loss:≤10mA; Loop voltage drop:≤170mV;Temperature compensation:-4mV/Cell/ºC
Working EnvironmentOperating temperature:-20ºC~+60ºC; Storage temperature:-30ºC~+70ºC; Humidity requirements:≤90%, no condensation
Installation cable area7#  AWG (10mm2)>3#  AWG  (25mm2)7# AWG(16mm2)>3#  AWG  (25mm2)
Package size209×110 ×63 mm217 ×158 ×95mm209×110 ×63 mm217 ×158 ×95mm
Weight500g790g520g810g

* DC, USB parameters only for some model.
