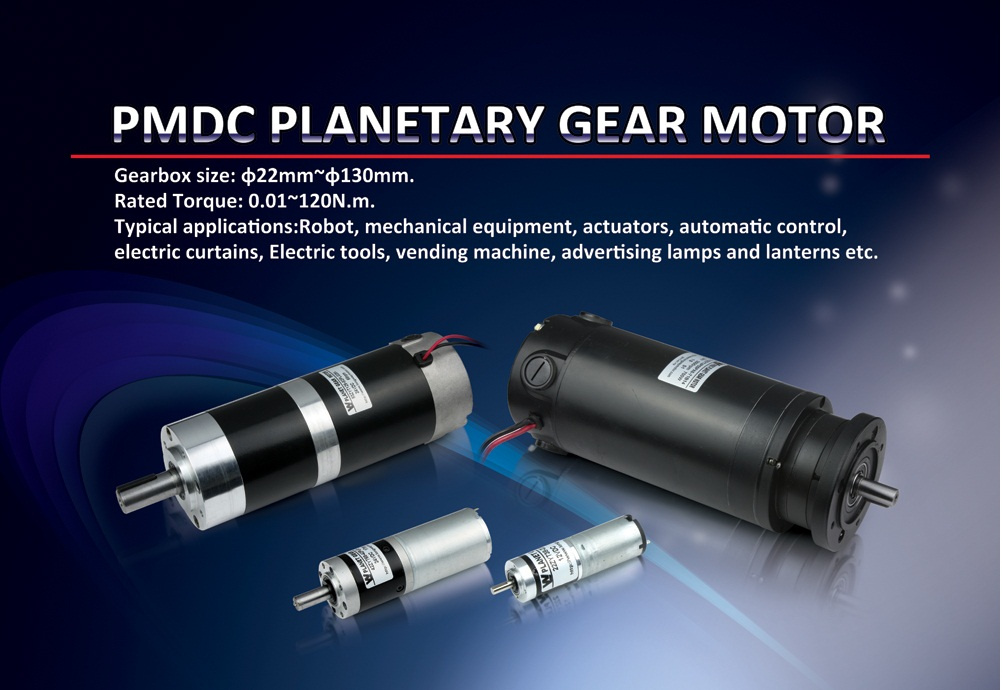

12/24V PMDC Gear Motor

Name: 12/24V PMDC Gear Motor
Brand: all-electronics-online.com
SKU: 774703645
Availability: InStock
Rating: 4.5 (53 reviews)

Price:	US $ 38/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	36JX10K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	36mm
Voltage:	12/24V
Speed:	6.1~323rpm
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Brand:	Longway

Product Description

Motor Technical Data

Model	Rated Voltage	No-loda Speed	No-load current	Rated Speed	Rated torque	Out put power	Rated current	Stall Torque	Stall Current
36ZY57-2430	24V	3000rpm	100mA	2500rpm	15mN.m	4.5W	0.52mA	92mN.m	2.2A
36ZY57-2436	24V	3600rpm	120mA	3000rpm	17mN.m	5W	0.5mA	89mN.m	2.0A
36ZY57-2442	24V	4200rpm	120mA	3600rpm	19mN.m	7W	0.52A	97mN.m	2.8A

Gear Motor Technical Data

Mode: 36ZY57-2430 DC MOTOR

Reduction Ratio	13	22	49	59	68	82	95	115	181	218	253	305	354	426	495
Number of gear trains	2	2	3	3	3	3	3	3	4	4	4	4	4	4	4
Length MM	35.8	35.8	42.1	42.1	42.1	42.1	42.1	42.1	48.9	48.9	48.9	48.9	48.9	48.9	48.9
No-load speed rpm	231	136	61	51	44	37	32	26	17	14	12	10	8.5	7.0	6.1
Rated speed rpm	192	114	51	42	37	30	26	22	14	11	10	8.2	7.1	5.9	5.1
Rated torque N.m	0.16	0.27	0.54	0.65	0.74	0.90	1.0	1.3	1.8	2.1	2.5	3	3	3	3
Max. permissible load in a short time N.m	3.5	3.5	7.5	7.5	7.5	7.5	7.5	7.5	9	9	9	9	9	9	9

Welcome your inquiry.

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
