12 48 Fibers Multi Mode Distribution Fiber Optic Cable

Name: 12 48 Fibers Multi Mode Distribution Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 811102575
Availability: InStock
Rating: 4.4 (143 reviews)

Price:	Negotiablepieces
Min Order:	1000pieces
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Indoor Distribution Cable
Application:	Telecommunication
Certification:	ISO9001
Type:	Indoor Cable
Connection Structure:	Patch Cable
Core:	1 Core or 2 Core
Sheath Material:	PVC or LSZH

Product Description

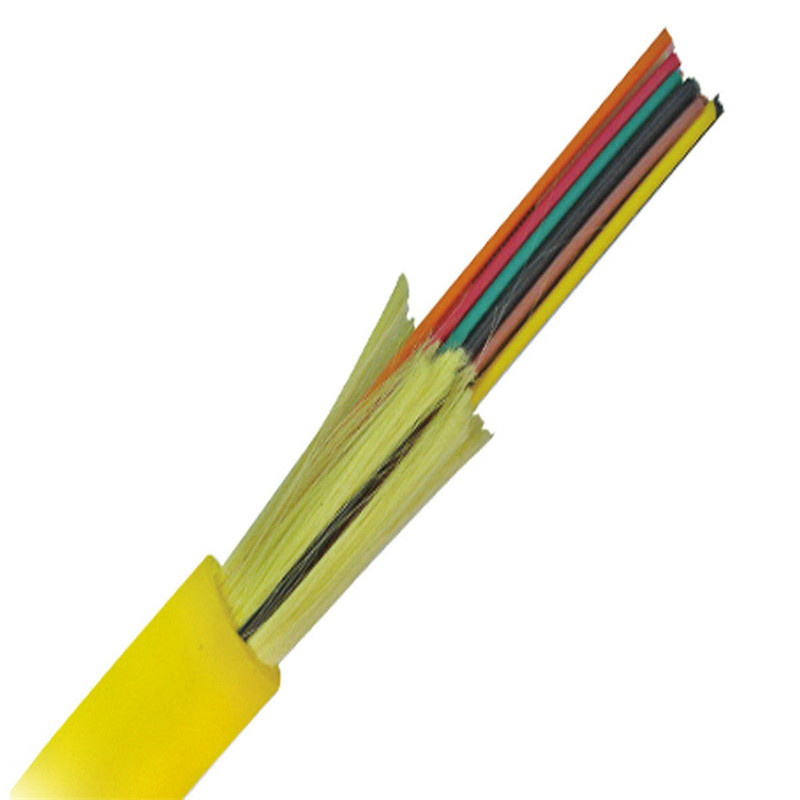

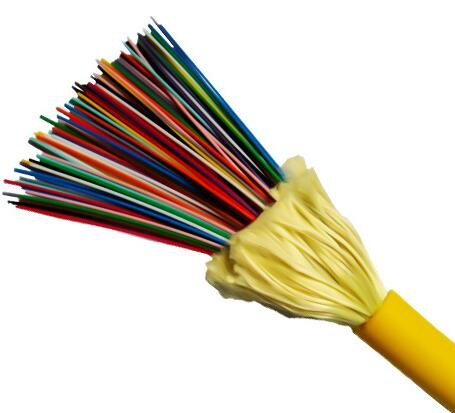

12 48 Fibers Multi Mode Distribution Fiber Optic Cable

Product Description

Indoor Optical fiber cable, Multi purpose distribution fiber cable, 2-12 fibers, made of selected top quality fibers, Φ900μm tight buffer fiber, with aramid yarn, PVC or LSZH Jacket.

Features:
1) Good uniformity of the outer diameter of tight buffer fiber and excellent strippability;
2) Good performance of flame-retardant;
3) Low induced attenuation within the operating temperature range;
4) Excellent geometrical dimension of the fiber;

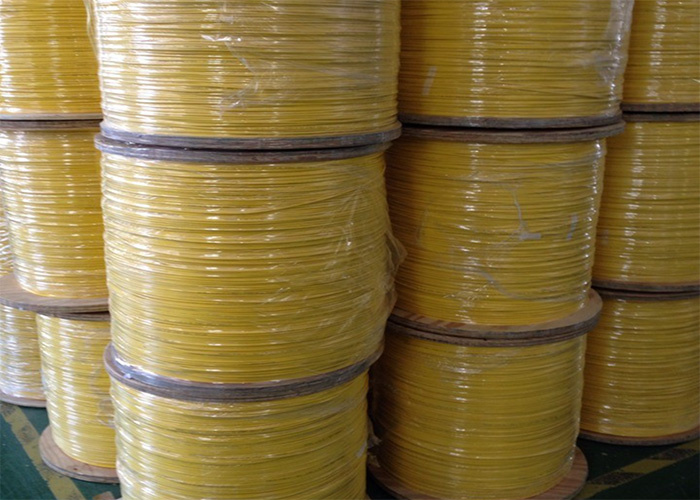

Warehouse corner:

Application:
1) Data communication;
2) Connection, making jumper, pigtail and building distribution;

Technical Characteristics:

Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
2	4.1± 0.25	11	200/660	300/1000	20/10
4	4.8± 0.25	18.4	200/660	300/1000	20/10
6	5.1± 0.25	22	200/660	300/1000	20/10
8	5.6± 0.25	24	200/660	300/1000	20/10
10	5.8± 0.25	27	200/660	300/1000	20/10
12	6.2± 0.25	31	200/660	300/1000	20/10

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
