12 Colors Multi-Cores Singlemode/Multimode Sc/LC/FC/St/MTRJ/E2000 Upc/APC/0.9/2.0/3.0mm Fiber Optic Fan-out Pigtails
| Price: |
US $ 3.5-7.2/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
12 colors SC/APC pigtails |
| Connector: |
FC, Sc, LC, Mu, St, MT-RJ, etc Connector |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
APC |
Product Description
12 Colors Multi-Cores Singlemode/Multimode SC/LC/FC/ST/MTRJ/E2000 UPC/APC/0.9/2.0/3.0mm Fiber Optic Fan-out Pigtails

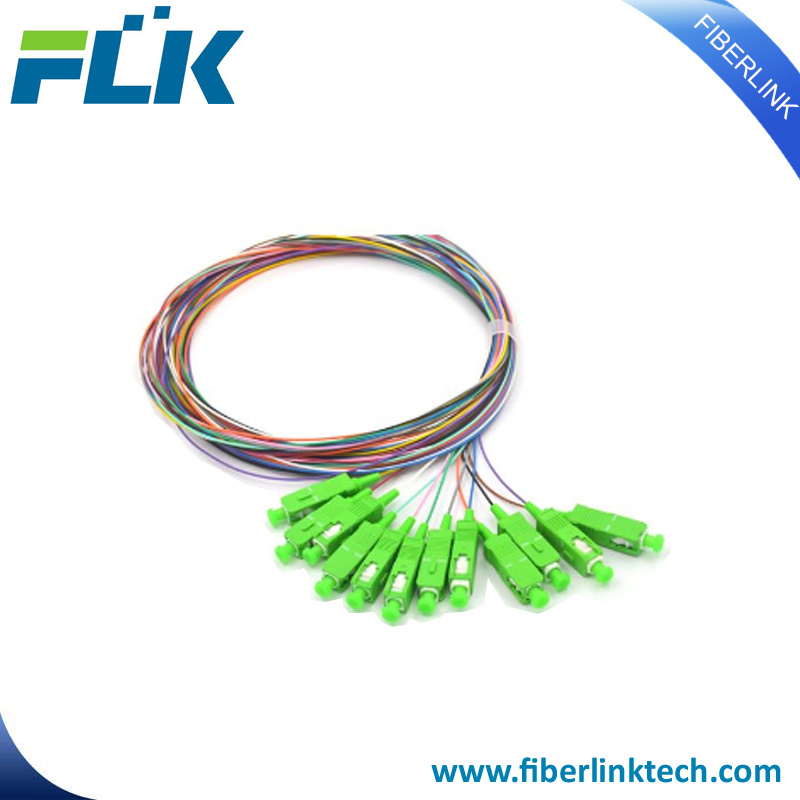

We supply SC/APC SM 12 Pack Multi Color Fiber Optic Unjacketed Pigtails with competitive price.We supply quality SC/APC SM Fiber Optic Pigtails are 12 packs that are 1.5 meters long with 900um outer jacket.These Singlemode 12fiber pigtail with 900 micron buffer are ready for splicing.Each fiber strand in the kits has a color-coded buffer for easy identification and the colors are industry standard.In this 12 pack,12 strands of fiber are terminated on one end with SC/APC Connector.Connectors are ceramic with a PC Polish.Each cable comes with test results and a lifetime guarantee.If you need Multimode pigtails,When you place order ,please tell us you need 50/125 or 62.5/125 .
We also offer custom-made specification pigtails, please contact us for details.4fiber,6fibers,8fibers,12fibers,24fibers,48fibers and so on.These fiber pigtails can be with fan-out kits and full compliant to Telcordia,EIA/TIA and IEC Standards.
Features of SC/APC SM Fiber Optic Pigtails:
a.Superior qualified standard PC, APC, UPC, SPC polishing;
b.100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
c.100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
d.φ0.9mm, φ2.0mm, φ3.0mm cable optional;
e.Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
f.FC, SC, LC, MU, ST, MT-RJ, etc connector
g.Simplex and duplex connector available;
Applications of SC/APC SM Fiber Optic Pigtails:
a.CATV, metro test equipment;
b.Telecommunication networks;
c.Local area networks (LAN);
d.Wide area networks (WAN);
e.Data processing networks;
f.Video and military active device termination.Specifications| Types | Single mode | Multi mode |
| Diameter (mm) | Ф0.9, |
| Fiber cable | Simplex |
| Operating Wavelength | 1310, 1550nm |
| Insertion Loss (dB) | ≤ 0.3 (PC)
≤ 0.3 (UPC)
≤ 0.3 (APC) | ≤ 0.5 (PC)
≤ 0.5 (UPC) |
| Return Loss (dB) | >= 45 (PC)
>= 50 (UPC)
>= 60 (APC) | >= 35 (PC)
>= 40 (UPC) |
| Exchangeability | ≤ 0.2 dB |
| Repeatability | ≤ 0.2 dB |
| Operating Temperature | -40 to +75 ºC |
| Storage Temperature | -40 to +85 ºC |
Related products
Our fiber patch cord production line:

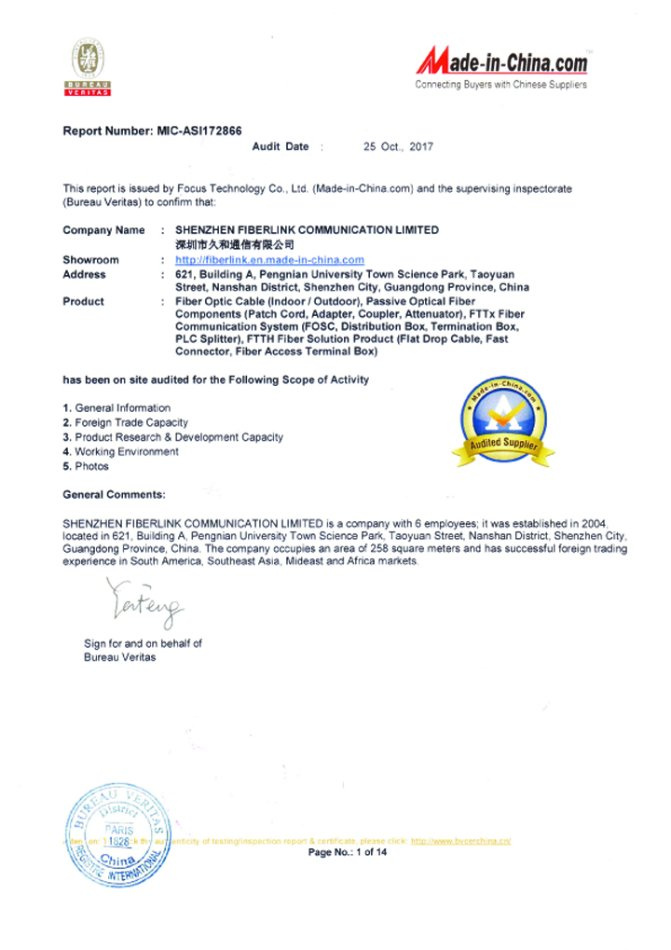

Certifications
