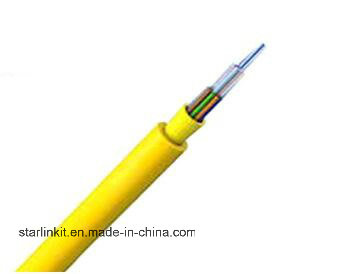

12 Core GJFJV Multimode Tight Buffered Indoor Fiber Optical Cable

Name: 12 Core GJFJV Multimode Tight Buffered Indoor Fiber Optical Cable
Brand: all-electronics-online.com
SKU: 791062605
Availability: InStock
Rating: 4.3 (87 reviews)

Price:	US $ 0.5-5/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJFJV-12MM
Tensile Strength:	Over 500n
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	CCC
Sheath Material:	PE

Product Description

This kind of GJFJV cable is ideal for indoor cabling, and interconnect between equipment.

GJFJV cable support 4 ~ 24 fiber cores, the fiber cable with PVC outer sheath, and the tight buffer fiber warped by Kevlar. The Kevlar yarn material ensure a good performance of tensile strength. And the flame retardant outer jacket could be used in riser environment.

Item Details

Fiber Count: 12 Fibers
Fiber Type: 50/125μm Multimode
Flame Rating: Riser

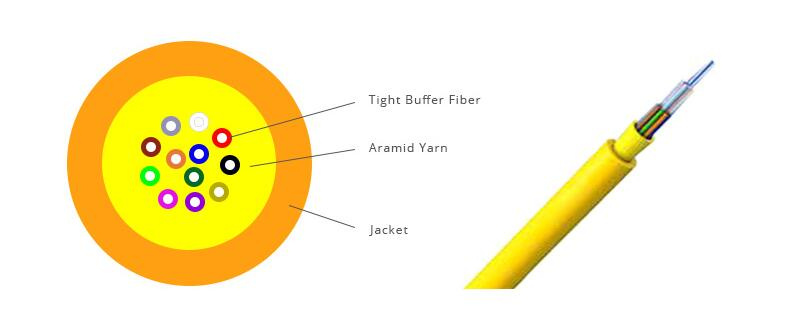

Cable Structure

Features

Soft, flexible, easy to splice, and with big capacity data transmission.Good mechanical and environmental properties.The mechanical and physical characteristics of the outer jacket make the cable can be used in riser environment.Kevlar yarn material ensure a good performance of tensile strength.900µm tight buffer protect the fiber well.

Application

Indoor cabling and distributionInterconnection of fiber optic equipment, especially ODFUsed in patch cords and pigtails

Specifications

Cable Count	Out Sheath Diameter	Weight	Minimum Allowable Tensile Strength (N)		Minimum Allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage Temperature
	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(ºC)
4	4	25	600	200	1000	200	20D	10D	-20~+60
6	4	26	600	200	1000	200	20D	10D	-20~+60
8	5	32	600	200	1000	200	20D	10D	-20~+60
10	5.5	35	600	200	1000	200	20D	10D	-20~+60
12	6	38	600	200	1000	200	20D	10D	-20~+60
24	8	60	600	200	1000	200	20D	10D	-20~+60

		G.652	50/125µm	62.5/125µm
Attenuation (+20°C) (dB/km)	@850nm		≤3.0	≤3.0
	@1300nm		≤1.0	≤1.0
	@1310nm	≤0.36
	@1550nm	≤0.22
Bandwidth (Class A) (MHz·km)	@850nm		≥600	≥200
Bandwidth (Class A) (MHz·km)	@1300nm		≥1200	≥600
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc (nm)		≤1260

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

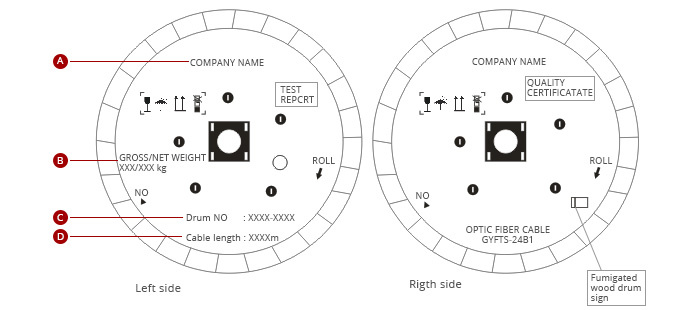

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX

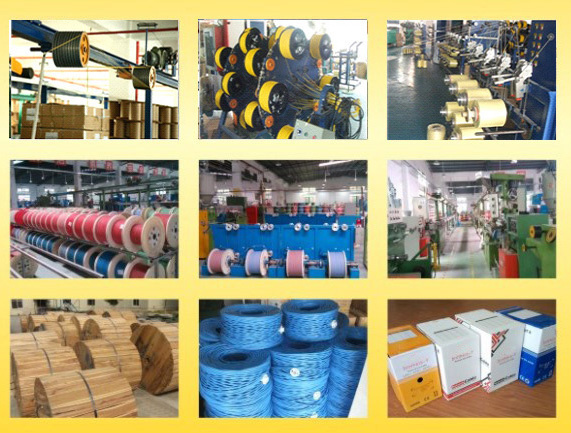

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
