12 Core Single-Mode Optical Fiber Cable with Figure 8 Self-Supporting Structure

12 Core Single-Mode Optical Fiber Cable with Figure 8 Self-Supporting Structure

Product details

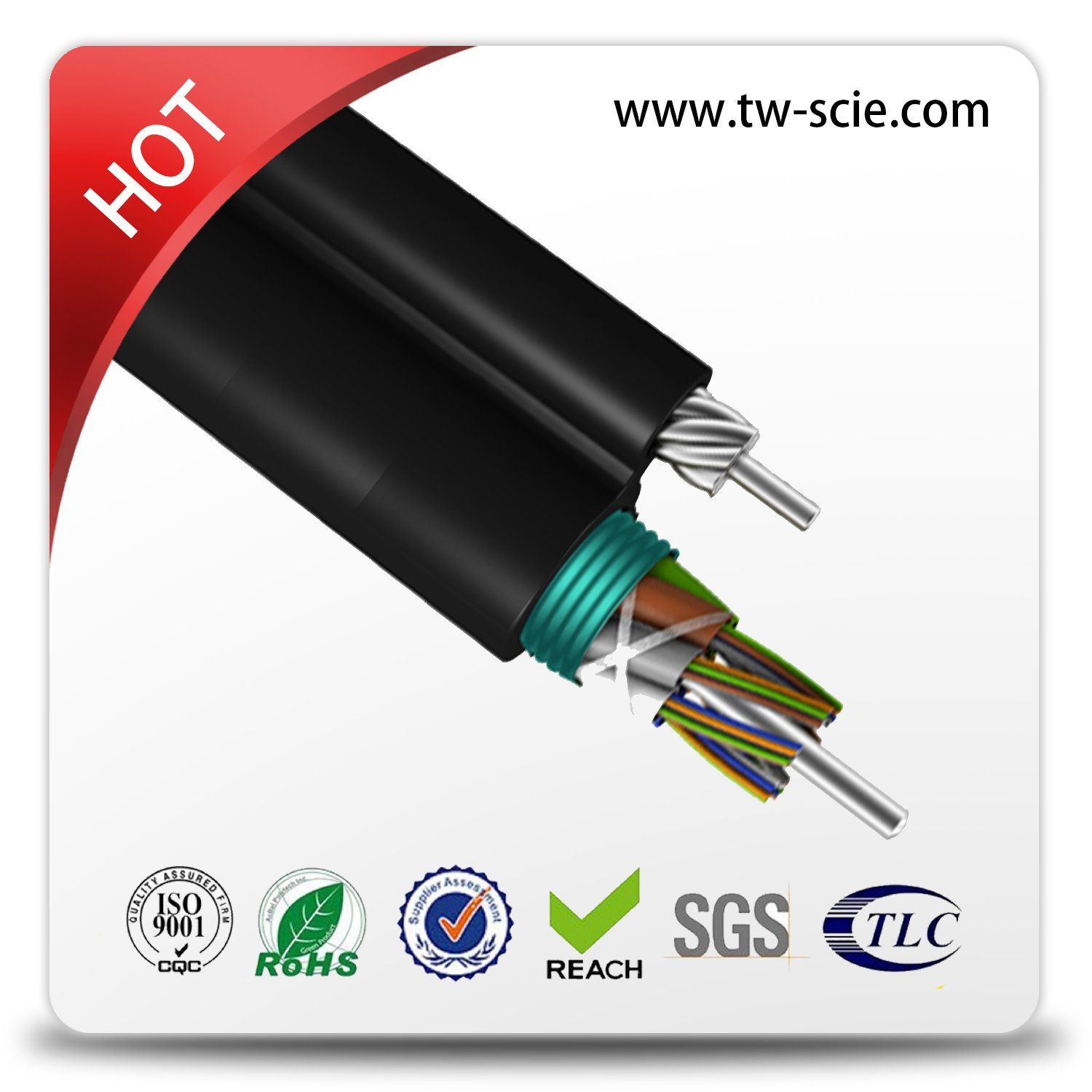

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) or PSP moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.

YOFC(SH)figure 8 cable GYTC8Y, GYTC8S are also available on request. This type of cable is specifically applied for self-supporting aerial installation.



Characteristics

High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

The following measures are taken to ensure the cable watertight:

Steel wire used as the central strength member

Loose tube filling compound

100% cable core filling

APL moisture barrier

Standards:IEC 60794-1.


Technical Parameters.
